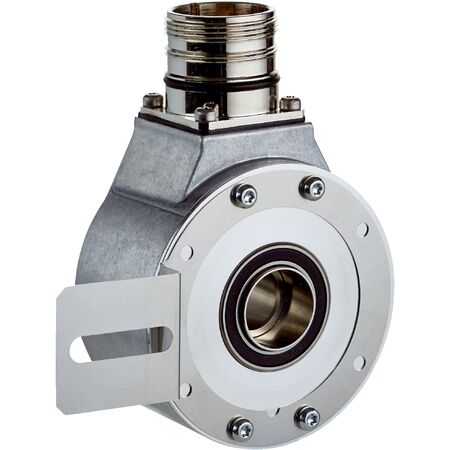

Incremental Rotary Encoder DBS60E-RGFAD1024 | 1024 Pulses/Rev | IP65 Rated | Stainless Steel Shaft | by SICK
The Incremental Rotary Encoder DBS60E-RGFAD1024 offers 1,024 pulses per revolution and an IP65 rating, making it perfect for industrial automation and robotics. With a robust stainless steel shaft and a communication interface supporting TTL/HTL signals, this encoder ensures high reliability and precision in motion control applications. Ideal for machine tool feedback systems and conveyor machinery, it delivers exceptional performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 14 mm rear clamping
- Flange type: 1-sided stator coupling with slot and screw hole circle radius 31.5–48.5 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -30°C to +100°C (max 3,000 pulses per revolution)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High reliability with MTTFD of 500 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL signals
- 6-channel output with load current ≤ 30 mA per channel
- Robust mechanical design with through hollow shaft and stainless steel shaft
- Operating speed up to 6,000 min⁻¹, maximum 9,000 min⁻¹
- IP65 rated housing and shaft side for protection against dust and water
- Reverse polarity and short-circuit protection on outputs
- Low power consumption ≤ 0.5 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise rotational position measurement
- Robotics and motion control systems
- Conveyor and packaging machinery
- Machine tool feedback systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-RGFAD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
