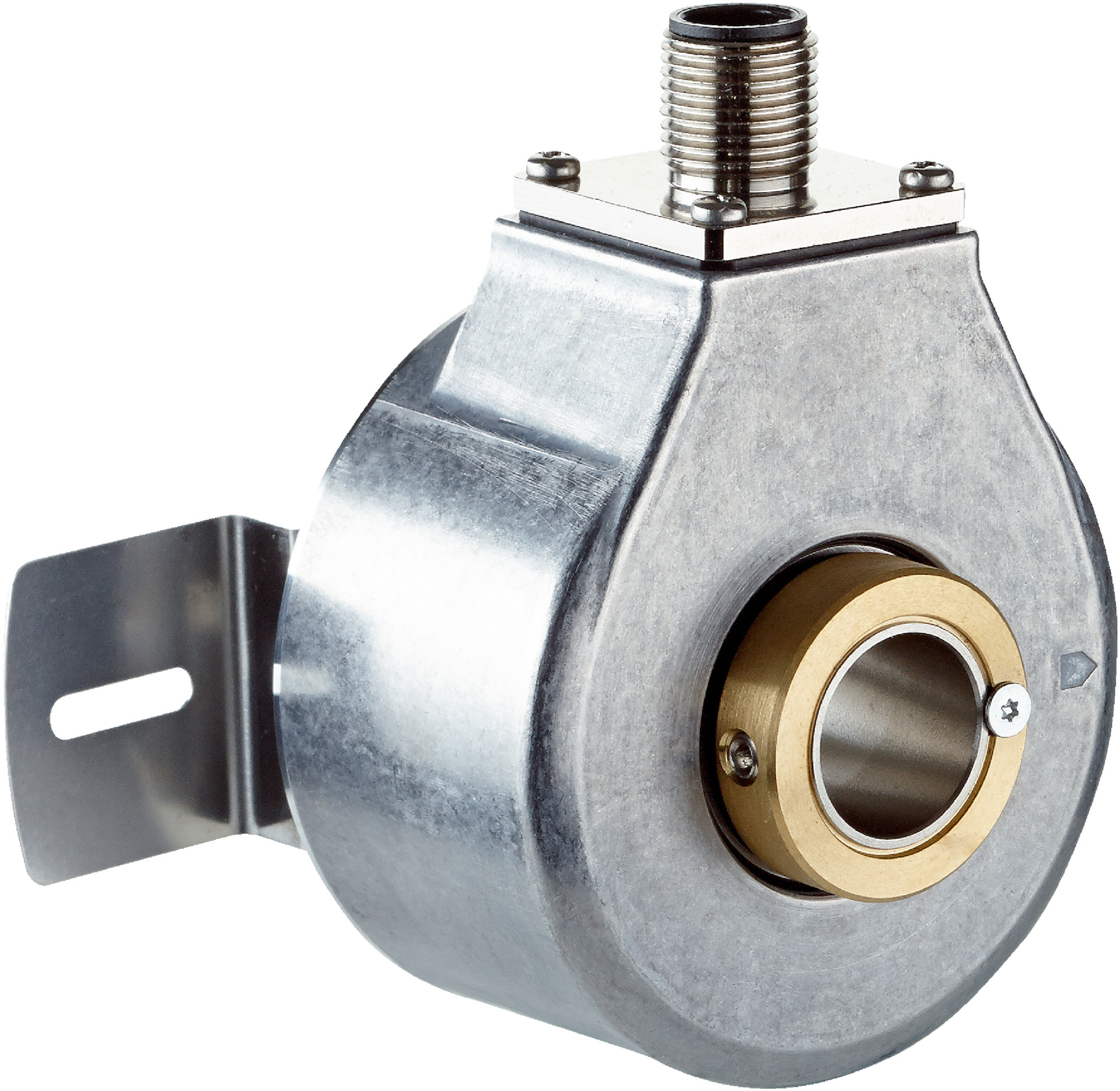

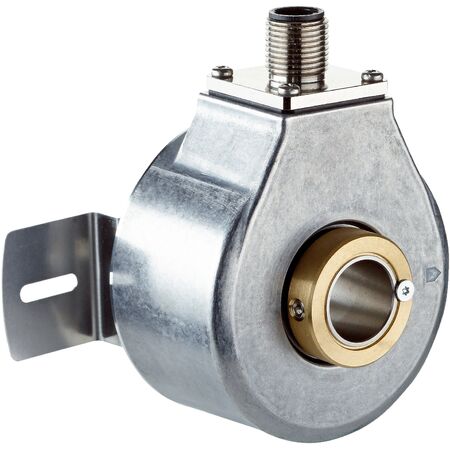

Incremental Rotary Encoder DBS60E-RHFC01024 | 1024 Pulses/Rev | IP65 Rated | High Speed Up to 9000 min⁻¹ | by SICK
The Incremental Rotary Encoder DBS60E-RHFC01024 offers high resolution with 1,024 pulses per revolution, making it ideal for precise motion control in industrial automation. With a robust aluminum housing and stainless steel shaft, it features an IP65 rated enclosure for protection against dust and water, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male M12, 8-pin radial connector
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft with 15 mm diameter
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start up torque: approx. 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹ typical, max 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature: -30 °C to +100 °C
- Storage temperature: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Through hollow shaft mechanical design with 15 mm shaft diameter
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- High operating speed up to 9,000 min⁻¹
- Low power consumption ≤ 0.5 W without load
- 6-channel incremental TTL/HTL communication interface
- Fast initialization time under 5 ms
- High resistance to shocks (250 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool feedback and positioning
- Rotational speed and position measurement
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-RHFC01024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
