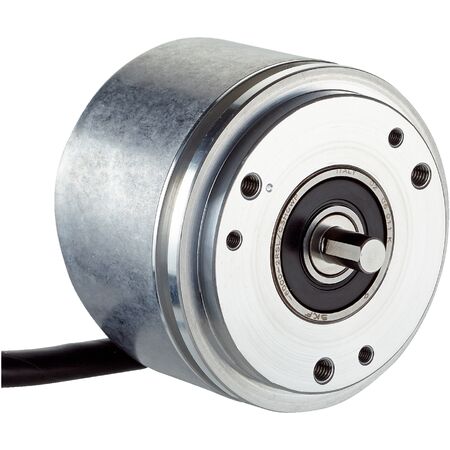

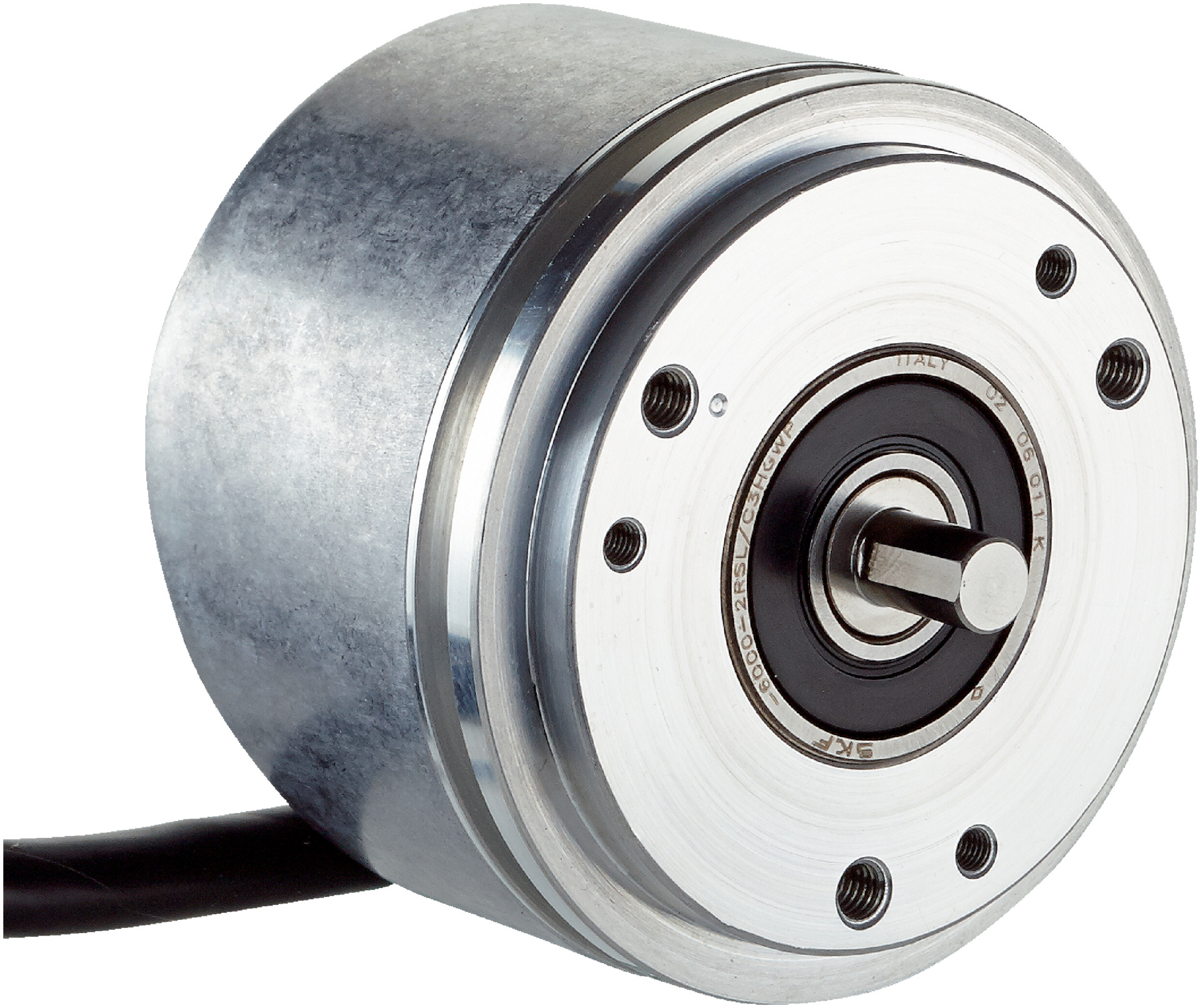

Incremental Rotary Encoder DBS60E-S1AK02000 | 2000 Pulses/Rev | IP67 & IP65 Rated | by SICK
The Incremental Rotary Encoder DBS60E-S1AK02000 offers high precision with 2000 pulses per revolution, making it ideal for industrial automation and control systems. Designed for robust performance, it features a solid shaft with servo flange and an IP67 rated housing, ensuring reliability in harsh environments. With a wide operating temperature range from -20°C to +85°C, this encoder is perfect for robotics, machine tools, and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA (without load)
- Connection type: 8-wire cable, 1.5 m length
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start-up torque: 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Solid shaft with servo flange design
- Robust aluminum housing and flange
- IP67 rated housing side and IP65 shaft side for harsh environments
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Low start-up torque of 1.2 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-S1AK02000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
