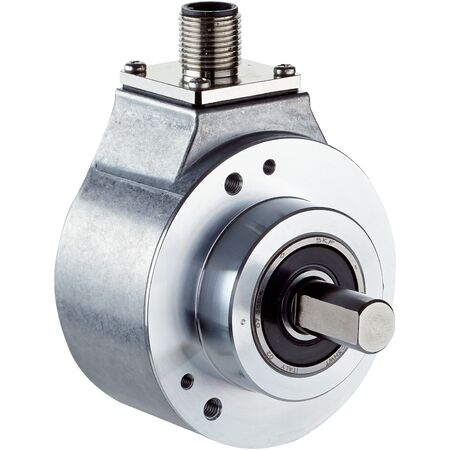

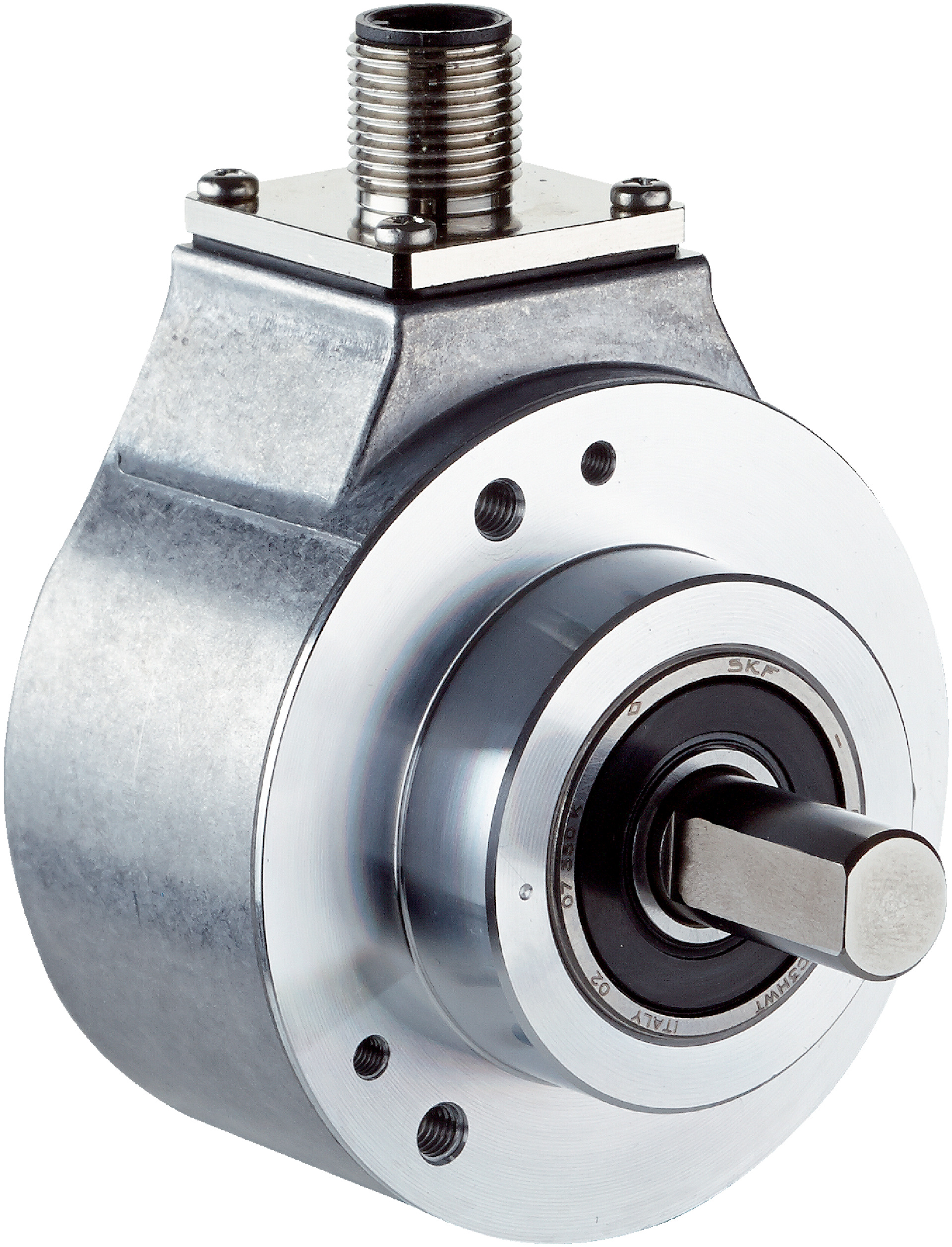

Incremental Rotary Encoder DBS60E-S4EC00010 | 6-Channel Output | IP67 & IP65 Rated | by SICK
The Incremental Rotary Encoder DBS60E-S4EC00010 is designed for precise position and speed measurement in industrial automation. With a robust solid shaft, high output frequency of up to 300 kHz, and IP67/IP65 protection against dust and water, it's perfect for robotics, conveyor systems, and machine tool feedback. Built for durability, it features a long bearing lifetime and low power consumption, making it an ideal choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 10
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1 at 90°, logically gated with A and B
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Start up torque: 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 250 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- Incremental communication interface with HTL / Push pull
- 6-channel signal output
- High output frequency up to 300 kHz
- Robust solid shaft with stainless steel material
- IP67 rated housing side and IP65 shaft side for protection against dust and water
- Wide operating temperature range from -20°C to +85°C
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics for accurate motion control
- Conveyor systems monitoring
- Machine tool feedback systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-S4EC00010 Incremental Rotary Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
