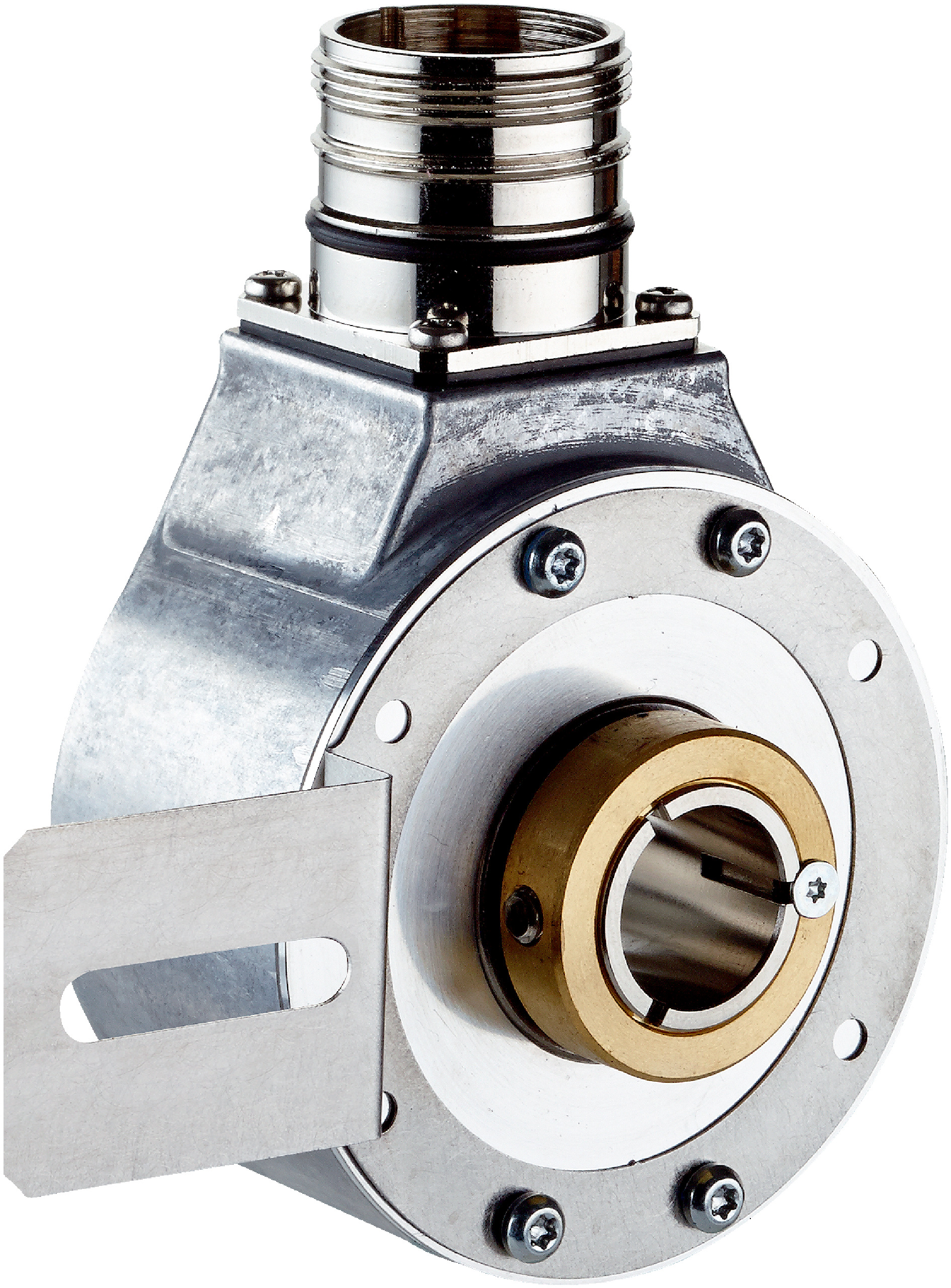

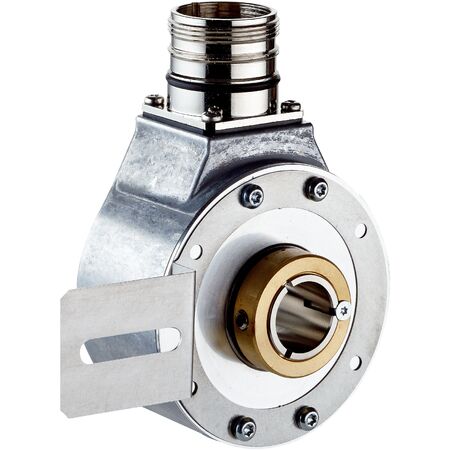

Incremental Rotary Encoder DBS60E-TFAAD1024 | 1024 PPR | IP65 Protection | High Speed up to 9000 RPM | by SICK
The Incremental Rotary Encoder DBS60E-TFAAD1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and motion control applications. Built for reliability, it features a robust aluminum housing with IP65 protection and a through hollow shaft design, ensuring durability in demanding environments. With a wide operating temperature range and compliance with EMC standards, this encoder is perfect for robotics, conveyor systems, and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft with 1/2" front clamp
- Flange type: 1-sided stator coupling with slot and screw hole circle radius 31.5–48.5 mm
- Shaft material: Stainless steel
- Housing and flange material: Aluminum
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust aluminum housing with IP65 protection on housing and shaft sides
- Through hollow shaft design with 1/2" front clamp
- TTL / RS-422 incremental communication interface with 6 signal channels
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low operating torque of 0.4 Ncm at 20°C
- Long bearing lifetime of 3.6 x 10⁹ revolutions
- Wide operating temperature range from -20°C to +85°C
- Complies with EMC standards EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TFAAD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
