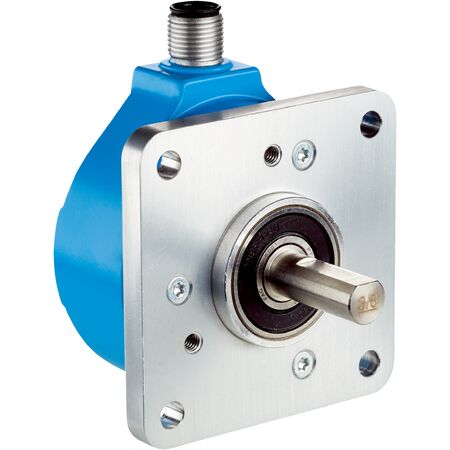

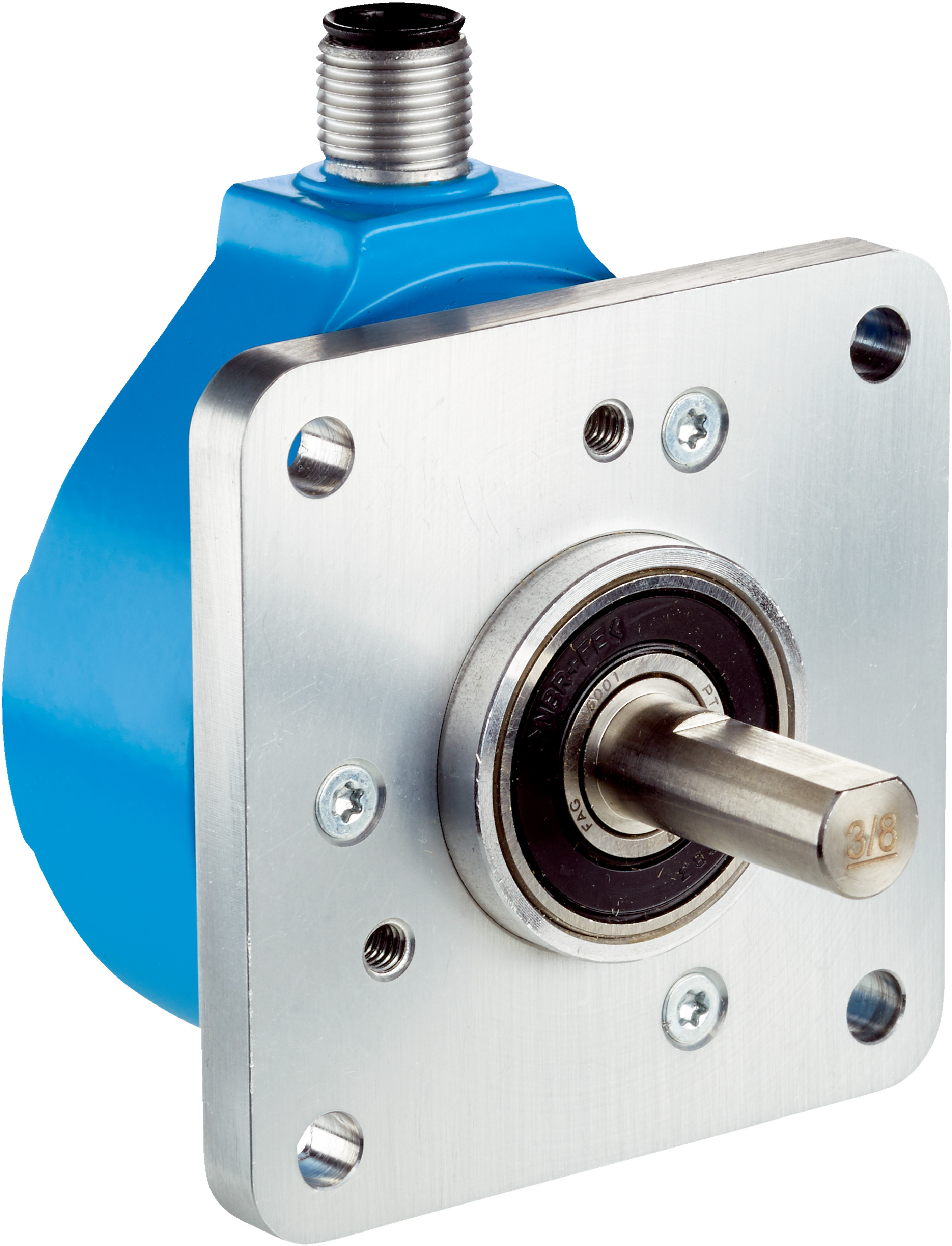

Incremental Rotary Encoder DFS25A | 10,000 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS25A offers high resolution with 10,000 pulses per revolution, making it ideal for industrial automation and robotics applications. Built with a robust stainless steel shaft and aluminum housing, it features IP65 and IP67 ratings for dust and water protection, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 8 to 30 V
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 6.35 mm (1/4 inch) with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start-up torque: 0.5 Ncm at 20°C
- Operating torque: 0.3 Ncm at 20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 10,000 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- High resistance to shocks (100 g) and vibration (30 g)
- Incremental communication interface with TTL / RS-422 signals
- 6-channel output with 820 kHz frequency and 30 mA load current
