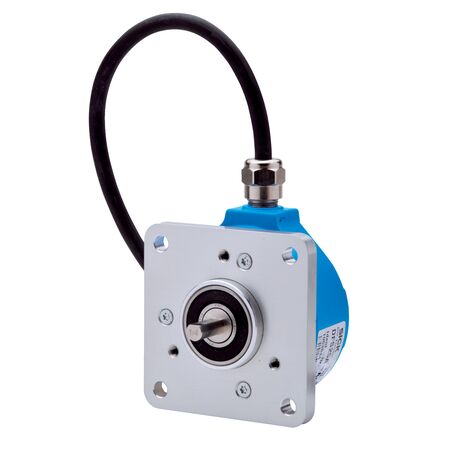

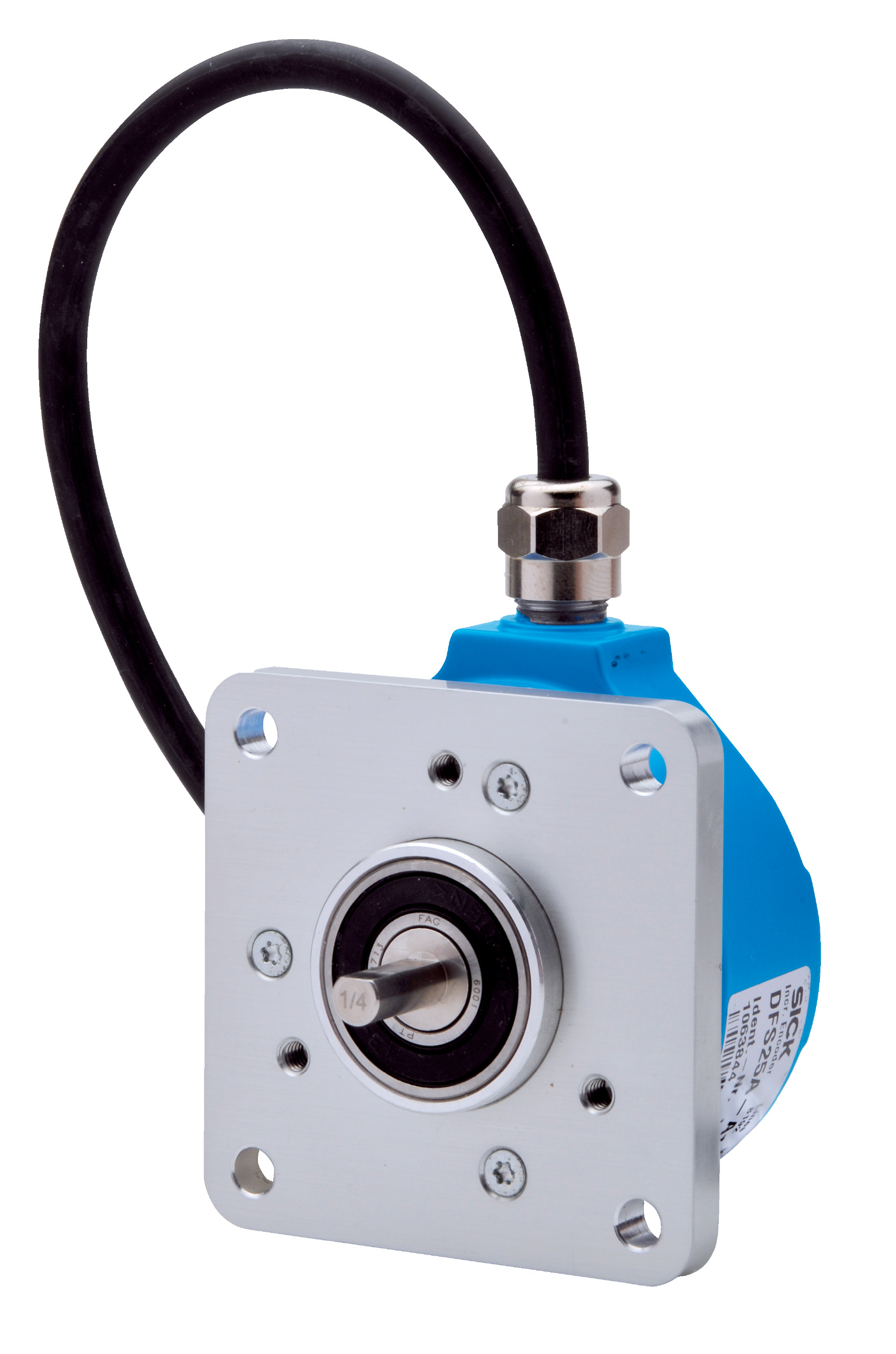

Incremental Rotary Encoder DFS25A-A4B1L001000 | ±0.008° Precision | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS25A-A4B1L001000 offers high precision with a measuring step deviation of ±0.008°, making it ideal for industrial automation and robotics. With an IP65/IP67 rating for dust and water protection, this encoder ensures reliable performance in challenging environments, while its robust mechanical design and low power consumption enhance its longevity and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,000
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 ... 10,000
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- 0-set function via hardware pin: Yes, H-active
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 9-wire, radial, 1.5 m
- Supply voltage: 8 ... 30 V
- Reference signal: 1, position 180°, electric, gated with A
- Code sequence: Clockwise
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, Square flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1,4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.4 kg
Key Features
- High precision with measuring step deviation of ±0.008°
- Incremental communication interface with HTL / Push pull signals
- Robust mechanical design with solid shaft and square flange
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Wide operating temperature range from –30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring accurate angular position feedback
- Conveyor systems and material handling equipment
- Machine tools and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A4B1L001000 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
