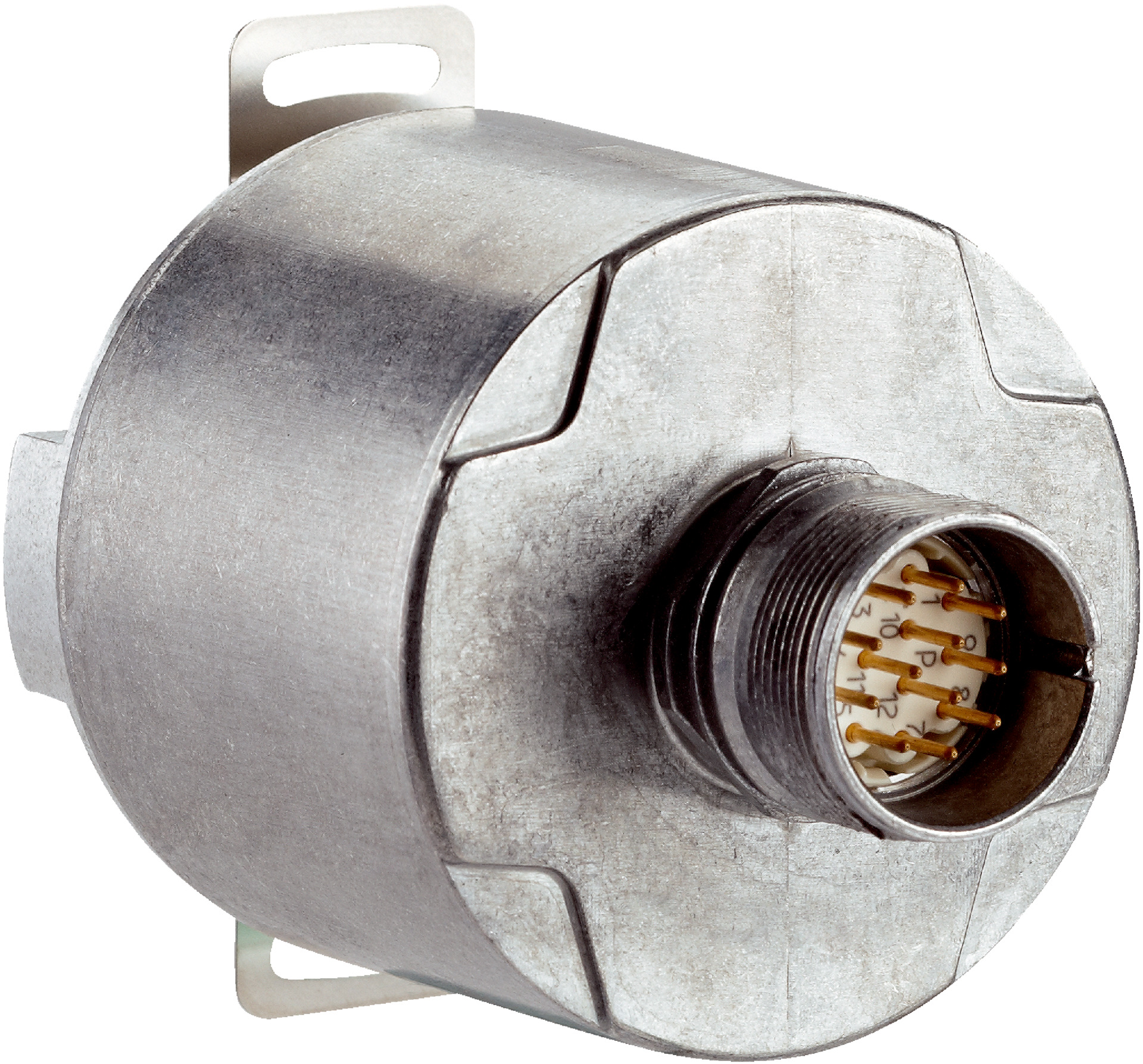

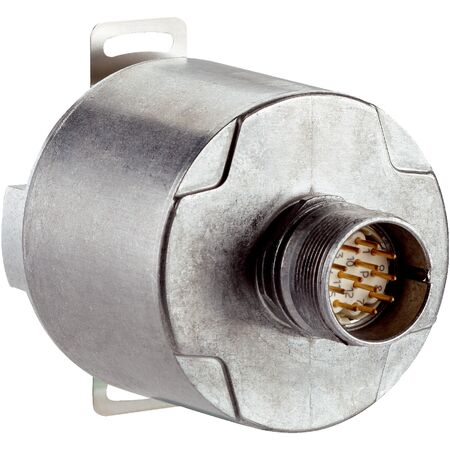

Incremental Rotary Encoder DFS60A-BEPB65536 | 65,536 Pulses/Rev | IP67 Rated | by SICK
The Incremental Rotary Encoder DFS60A-BEPB65536 offers high resolution with 65,536 pulses per revolution, making it ideal for precision measurement and positioning in industrial automation. With a robust mechanical design featuring a stainless steel shaft and IP67 rated housing, it ensures reliable performance in harsh environments, while its incremental TTL/HTL communication interface allows for versatile integration in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Programmable output: Yes
- Initialization time: 30-32 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, axial
- Supply voltage: 4.5 to 32 V
- Mechanical design: Blind hollow shaft, 12 mm diameter
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 0.8 Ncm at +20°C
- Operating torque: 0.6 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Incremental TTL/HTL communication interface
- 6-channel programmable output
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP67 rated housing for protection against dust and water
- Wide operating temperature range from -40°C to +100°C
- Reverse polarity and short-circuit protection
- Low power consumption of ≤ 0.7 W
- High mechanical reliability with bearing lifetime of 3.6 x 10^10 revolutions
