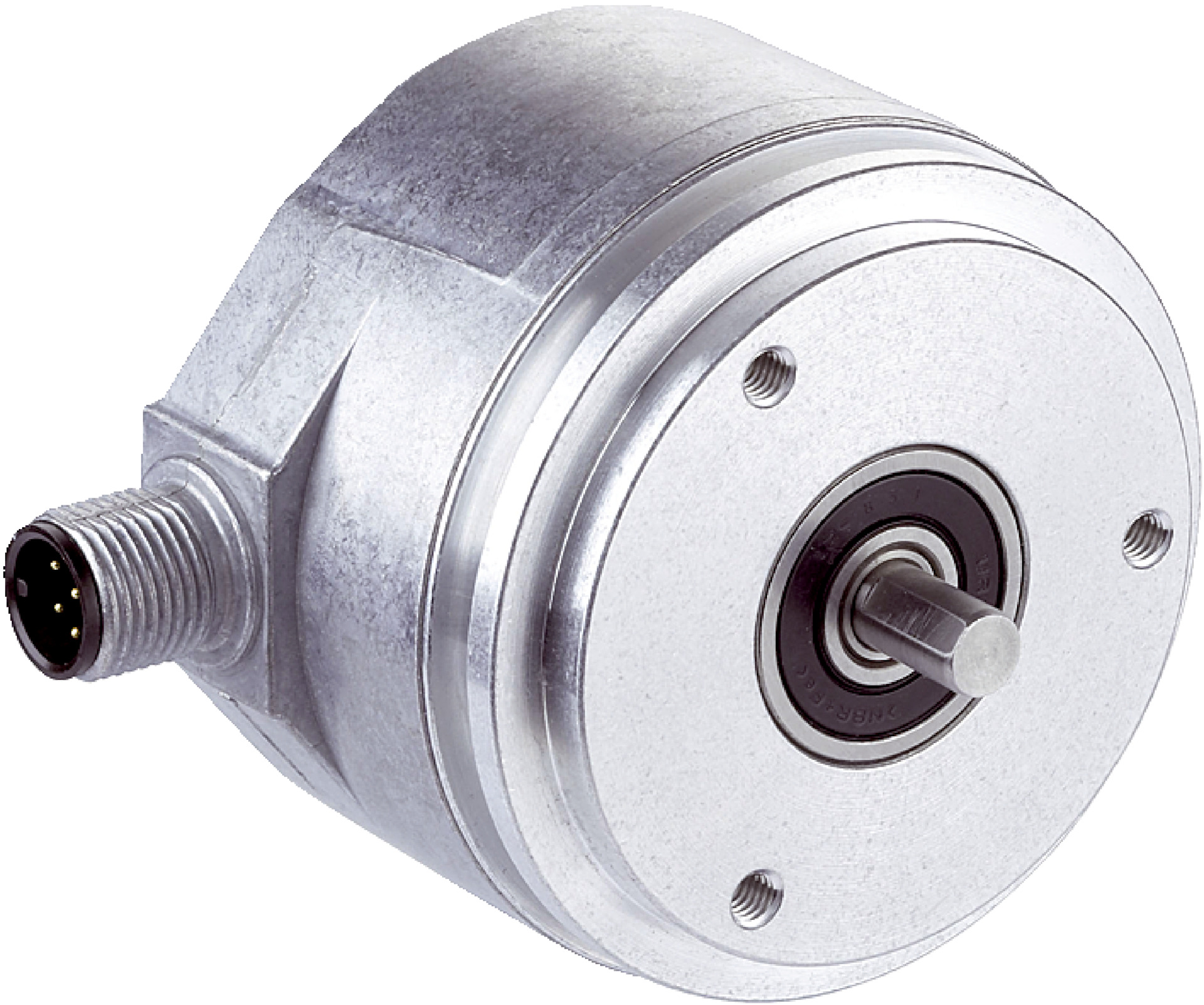

Incremental Rotary Encoder DFS60B-S1EC08192 | 8192 Pulses/Rev | IP67 Rated | High Speed up to 9000 min⁻¹ | by SICK
The Incremental Rotary Encoder DFS60B-S1EC08192 offers high resolution with 8192 pulses per revolution, making it ideal for precision measurement in industrial automation and control systems. Built with a robust stainless steel shaft and aluminum housing, it features an IP67 rating for dust and water protection, ensuring reliable performance in harsh environments. With a wide operating temperature range from -40°C to +100°C, this encoder is perfect for robotics and machine tool monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 8,192
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.05°
- Communication interface: Incremental HTL / Push pull, 6-channel
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 8,192 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP67 rated housing for protection against dust and water
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low power consumption (≤ 0.5 W without load)
- High operating speed up to 9,000 min⁻¹
- 6-channel incremental communication interface with HTL / Push pull
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool monitoring and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60B-S1EC08192 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
