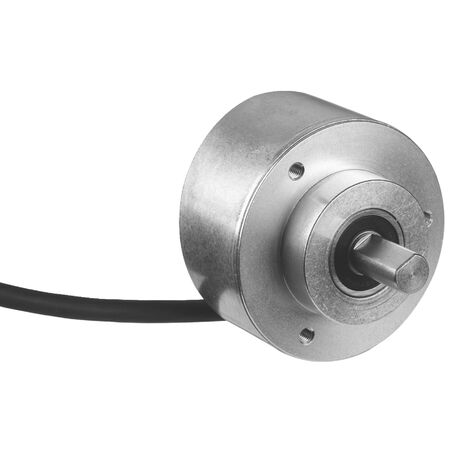

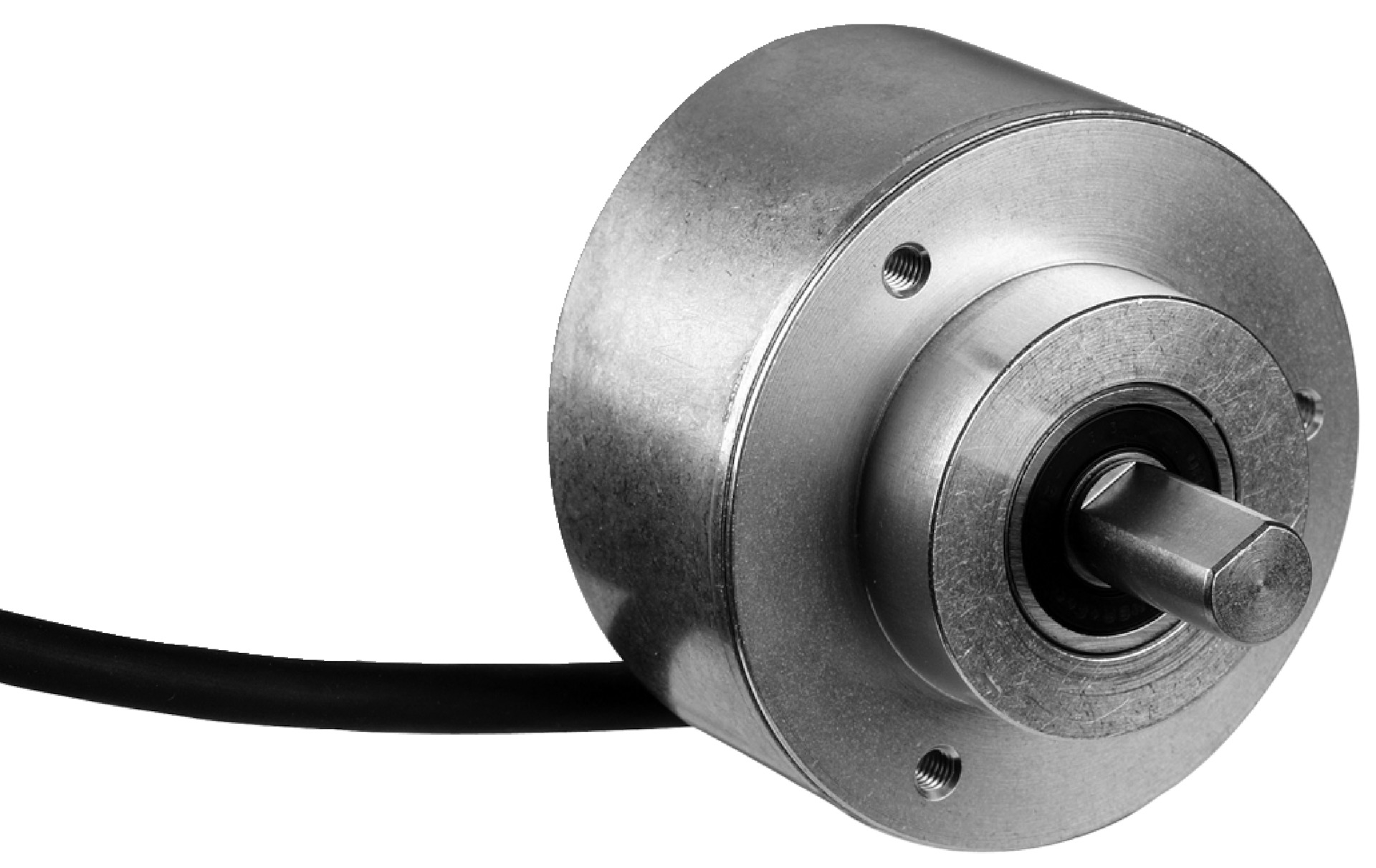

Incremental Rotary Encoder DFS60B-S4NK01024 | ±0.008° Measuring Step | IP67 Protection | by SICK
The Incremental Rotary Encoder DFS60B-S4NK01024 offers high precision with a measuring step deviation of ±0.008°, making it ideal for industrial automation and motion control applications. With a robust aluminum housing and IP67 protection, it withstands harsh environments while delivering reliable performance in robotics, machine tool positioning, and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Sine/cosine periods per revolution: 1,024
- Measuring step deviation: ±0.008°
- Output frequency: ≤ 200 kHz
- Operating current: 40 mA (without load)
- Load resistance: ≤ 120 Ω
- Connection type: 8-wire cable, 1.5 m length
- Supply voltage: 4.5 to 5.5 V
- Reference signal position: 90°, electronically gated
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Moment of inertia of rotor: 6.2 gcm²
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High precision with ±0.05° error limits
- Incremental communication interface with Sin/Cos signals
- Solid shaft with 10 mm diameter and stainless steel material
- Robust aluminum die cast housing with IP67/IP65 protection
- Operating temperature range from –40 °C to +100 °C
- Short-circuit protection on outputs
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor systems and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S4NK01024 Incremental Rotary Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
