Incremental Rotary Encoder DFS60B-T6EM05000 | 5000 Pulses/Rev | IP65 Protection | Through Hollow Shaft Design | by SICK

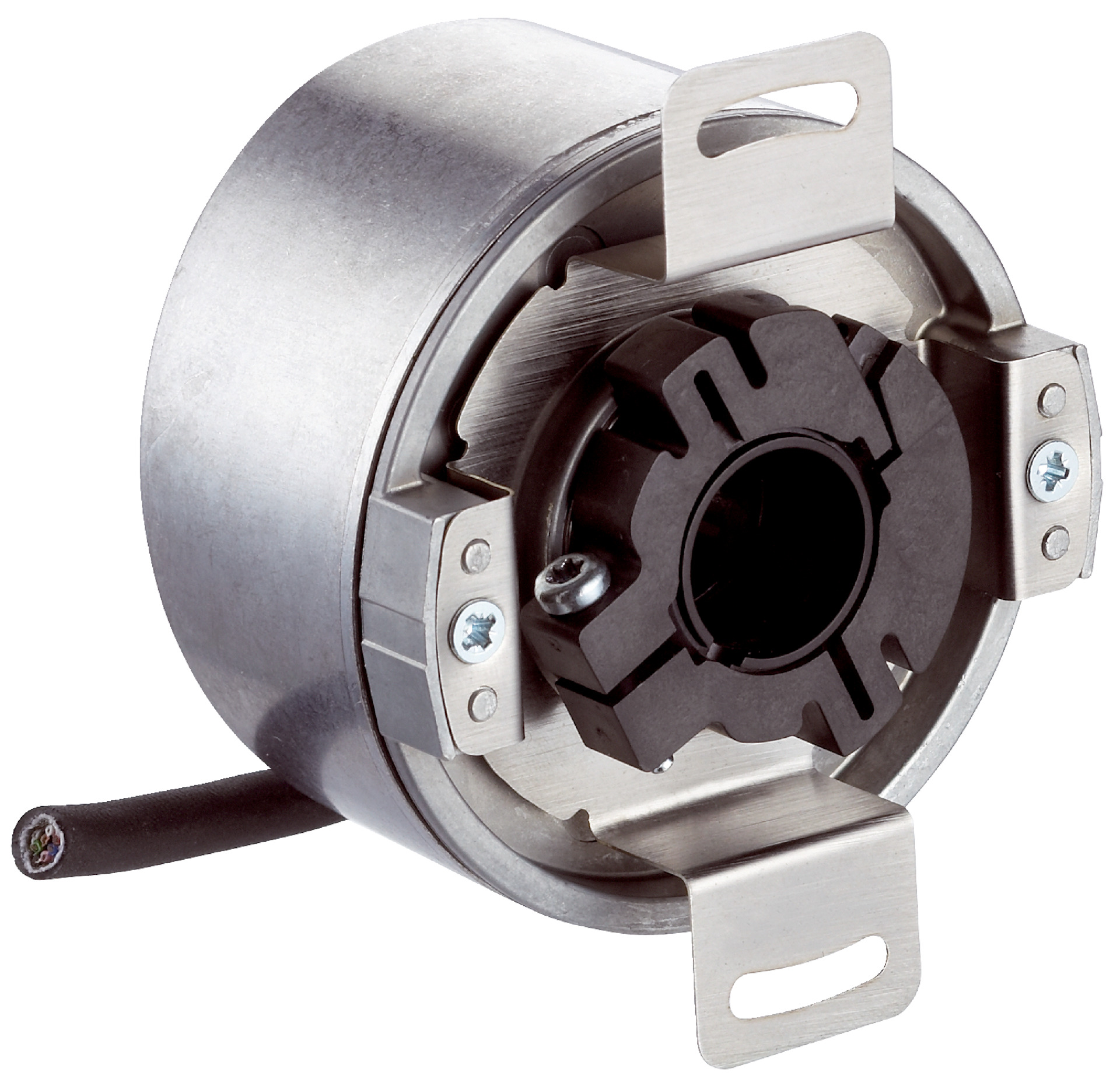

The Incremental Rotary Encoder DFS60B-T6EM05000 offers high precision with 5000 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust aluminum die cast housing ensures IP65 protection, while the through hollow shaft design allows for easy installation. With a wide operating temperature range from -40°C to +100°C, this encoder is built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 5 m
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 1/2″ Front clamp
- Shaft material: Plastic
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.8 Ncm (+20 °C)
- Operating torque: 0.6 Ncm (+20 °C)
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 housing and shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Dimensions (H x L x W): 60mm x 50mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 5,000 pulses per revolution
- Robust aluminum die cast housing with IP65 protection
- Through hollow shaft design with 1/2″ front clamp
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low start-up torque of 0.8 Ncm and operating torque of 0.6 Ncm
- 6-channel incremental HTL / Push-pull communication interface
- Long bearing lifetime of 3.6 x 10^10 revolutions
- EMC compliant according to EN 61000-6-2 and EN 61000-6-4
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems
- Machine tool feedback
- Position and speed measurement in manufacturing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 0.5 W reduces energy usage
- Durable design extends product life, reducing waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-T6EM05000 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
