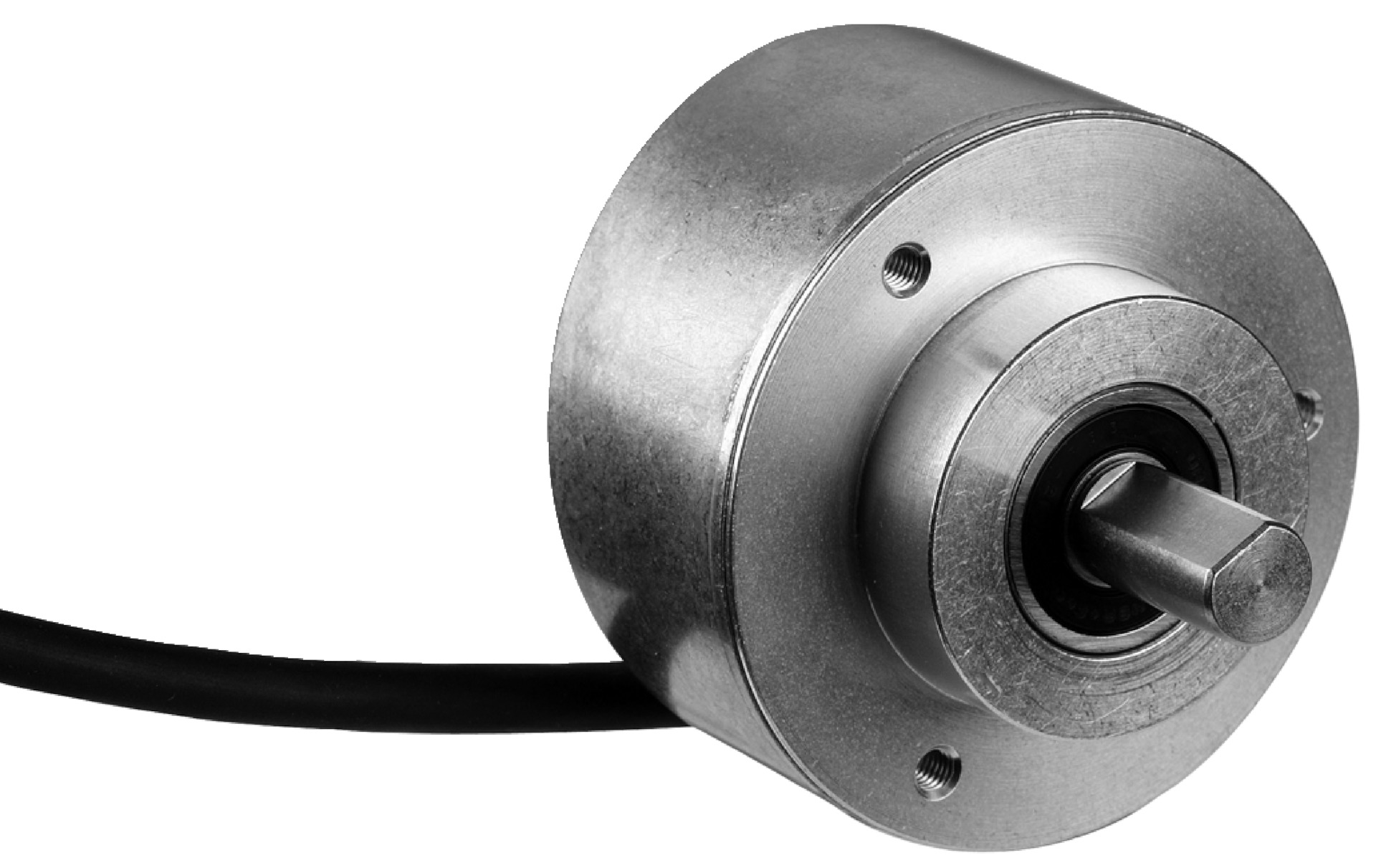

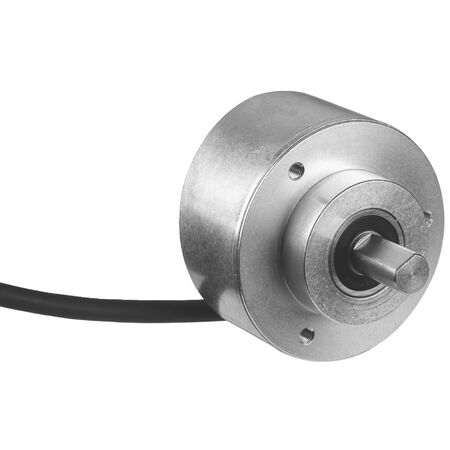

Incremental Rotary Encoder DFS60E-S4EM00720 | 720 PPR | IP67 Rated | Robust Design | by SICK
The Incremental Rotary Encoder DFS60E-S4EM00720 offers high precision with 720 pulses per revolution, making it ideal for industrial automation and motion control applications. With a robust mechanical design and IP67 rating, it ensures reliable performance in challenging environments. Perfect for robotics, conveyor systems, and machine tool feedback, this encoder is built to last and provides low power consumption for energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DFS60E-S4EM00720 | 720 PPR | IP67 Rated | Robust Design | by SICK
Brand: SICK
SKU: 1037795
Alternatively Known As: Incremental rotary encoder, rotary encoder 720 PPR, SICK DFS60 encoder, industrial encoder
Technical Specifications
- Mean time to dangerous failure (MTTFD): 300 years (EN ISO 13849-1)
- Pulses per revolution: 720
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ± 0.2°
- Error limits: ± 0.3°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 5 m
- Supply voltage: 10 ... 32 V
- Reference signal: 1, position 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side and cable connection, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 58mm x 58mm
- Weight: 0.3 kg
Key Features
- Incremental communication interface with HTL / Push pull
- 6-channel signal output
- High resolution with 720 pulses per revolution
- Robust mechanical design with solid shaft and face mount flange
- IP67 rated housing side and cable connection, IP65 shaft side
- Reverse polarity and short-circuit protection
- Operating speed up to 9,000 min⁻¹
- Wide operating temperature range from 0 °C to +85 °C
- Low power consumption ≤ 0.5 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60E-S4EM00720 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
