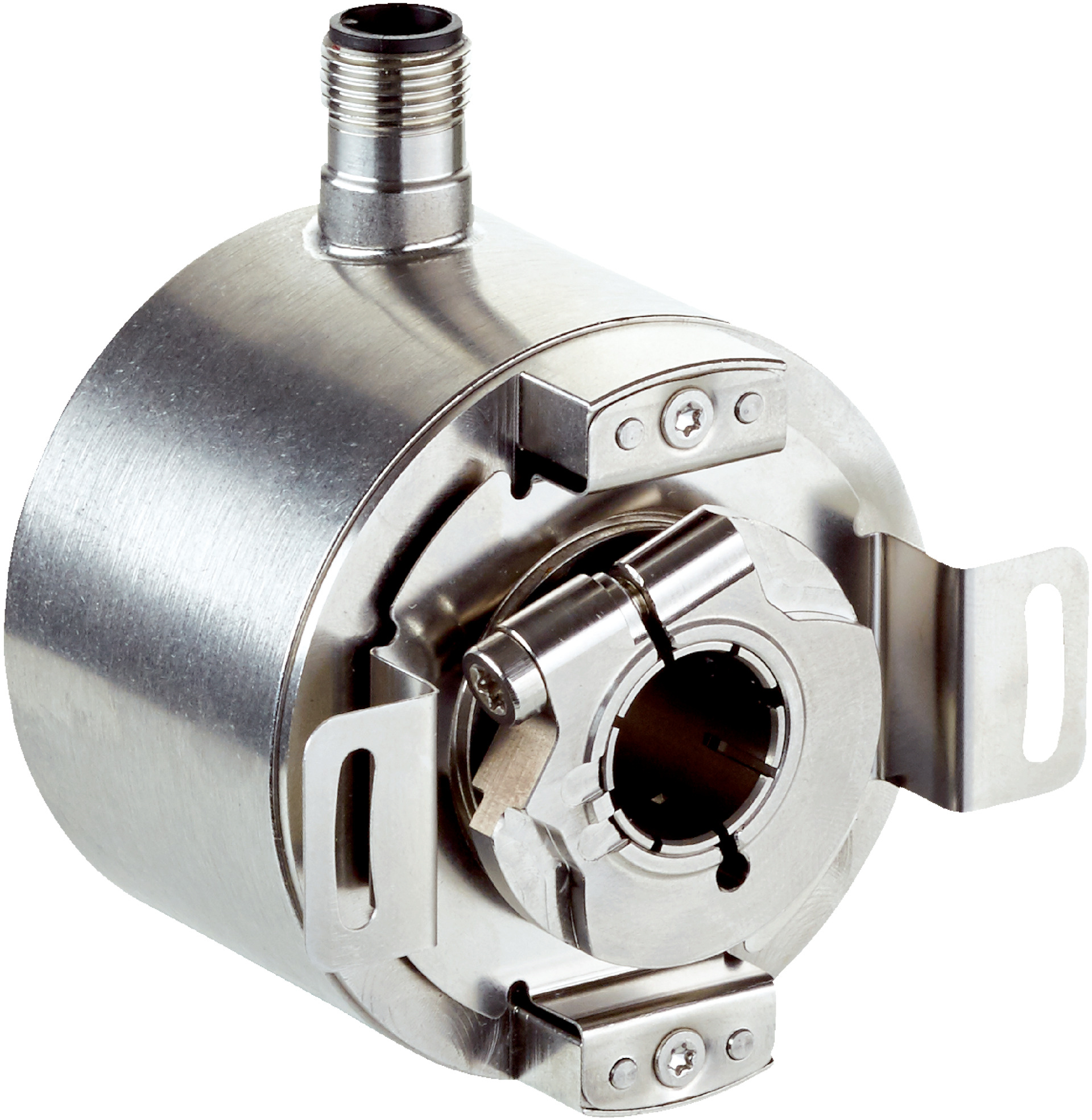

Incremental Rotary Encoder DFS60I-BCAC65536 | 65,536 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Rotary Encoder DFS60I-BCAC65536 offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and motion control applications. Built with a robust stainless steel housing and an IP67 rating, this encoder ensures durability and reliability in harsh environments. With a fast initialization time of 40 ms and low operating torque, it’s perfect for precision measurement and positioning tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection: Yes
- Mechanical design: Blind hollow shaft with 3/8″ front clamp
- Shaft, flange, and housing material: Stainless steel V2A
- Start-up torque: 1 Ncm at +20 °C
- Operating torque: 0.5 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Robust stainless steel V2A housing, shaft, and flange
- Blind hollow shaft mechanical design with 3/8″ front clamp
- IP67 rated enclosure for dust and water protection
- TTL / RS-422 incremental communication interface with 6 signal channels
- Short-circuit and reverse polarity protection
- Operating temperature range from –40 °C to +100 °C
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- High bearing lifetime of 3.6 x 10^10 revolutions
- Fast initialization time of 40 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper alignment and electrical connections.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption electronics contribute to energy efficiency
- High reliability reduces downtime and maintenance frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BCAC65536 incremental encoder is available for immediate purchase, ideal for precision industrial automation and motion control applications.
