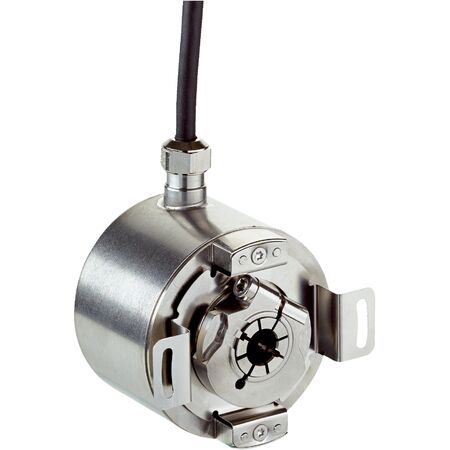

Incremental Rotary Encoder DFS60I-BBAK10000 | 10,000 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Rotary Encoder DFS60I-BBAK10000 offers high precision with 10,000 pulses per revolution, making it ideal for industrial automation and control systems. Built for durability, it features a robust stainless steel housing and an IP67 rating for dust and water protection. With a wide operating temperature range of -40°C to +100°C, this encoder is perfect for demanding environments, ensuring reliable performance in robotics, motion control, and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 8 mm front clamp
- Shaft, flange, and housing material: Stainless steel V2A
- Start-up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.5 kg
Key Features
- High resolution with 10,000 pulses per revolution
- Robust stainless steel V2A housing, shaft, and flange
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- Operating temperature range from -40°C to +100°C
- 6-channel incremental TTL/RS-422 communication interface
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Conveyor systems and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption electronics contribute to energy efficiency
- High reliability reduces downtime and maintenance frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BBAK10000 incremental encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
