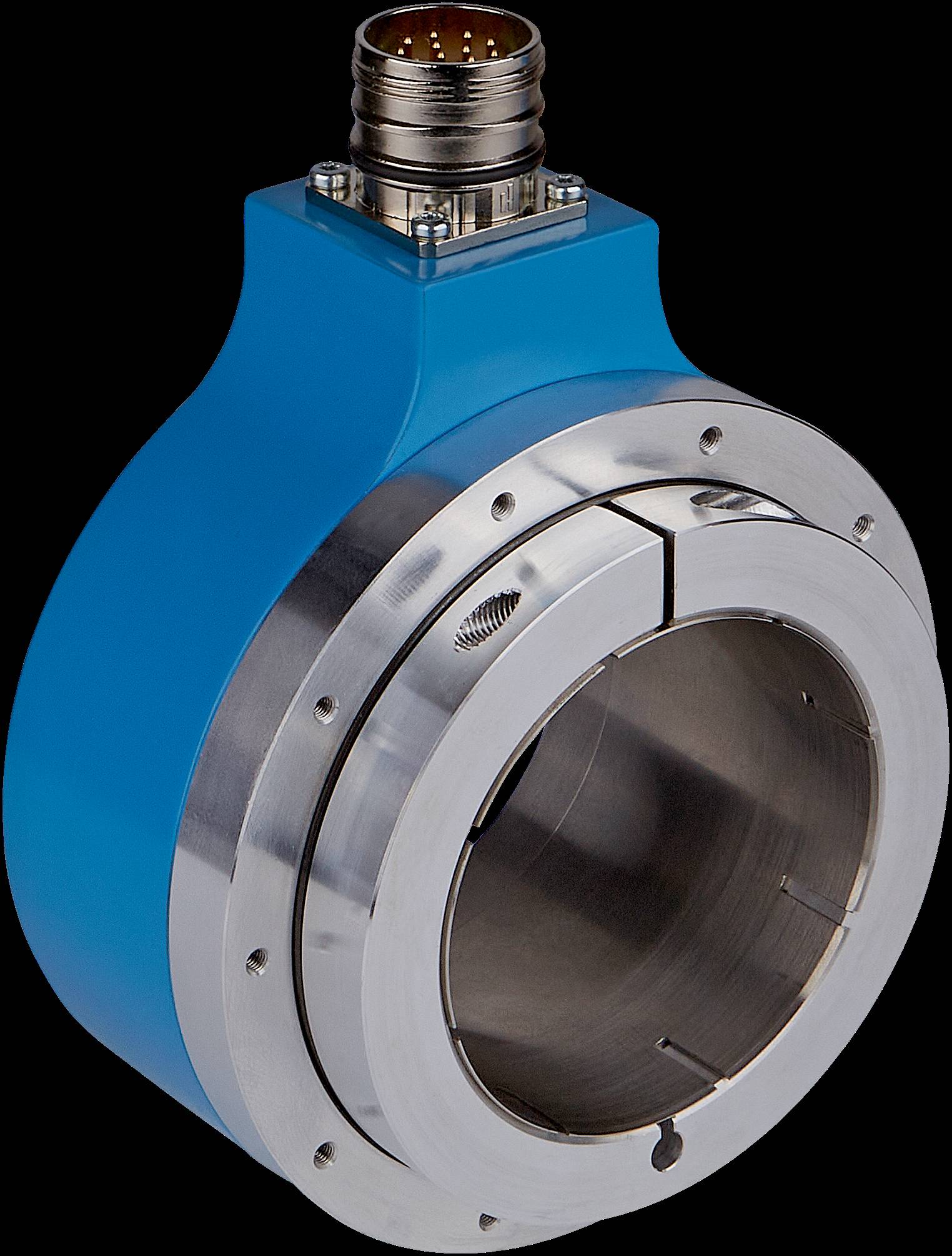

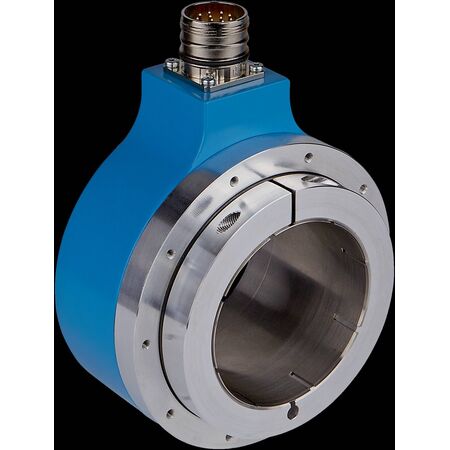

Incremental Rotary Encoder DGS80/90 | Up to 8192 Pulses | IP65 Enclosure | Hollow Shaft Options | by SICK
The DGS80/90 incremental rotary encoder is designed for precision in industrial automation, featuring up to 8192 pulses per revolution and a robust IP65 enclosure for dust and water protection. With large hollow shaft diameters of 30 mm to 65 mm and multiple connection types, it's perfect for motion control sensors and motor control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DGS80/90 | Up to 8192 Pulses | IP65 Enclosure | Hollow Shaft Options | by SICK
Brand: SICK
SKU: 1146048
Alternatively Known As: Incremental rotary encoder, hollow shaft encoder, industrial encoder, motion sensor encoder
Technical Specifications
- Pulses per revolution: up to 8,192
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12, M23, MS (Mil-Spec) plug, cable with flying leads
- Construction size (flange): Ø 110 mm
- Connection detail: Male connector, M23, 12-pin
- Supply voltage range: 5 V to 30 V
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192
- Enclosure rating IP65 for dust and water protection
- Communication interfaces: TTL, HTL
- Multiple connection types including M12, M23, MS plug, and cable with flying leads
- Collets available as accessories for shaft size adjustment
- Compact design with clamping ring for quick installation
- Universal stator couplings for easy mounting
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper integration and calibration within control systems.
Applications
- Industrial automation systems
- Asynchronous motor control
- Motion control sensors
- Shaft position and speed measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP65 rated enclosure reduces need for frequent replacements
- Energy-efficient design supports optimized motor control and reduced energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80/90 incremental encoders are available for immediate purchase, ideal for industrial automation and motor control applications.
