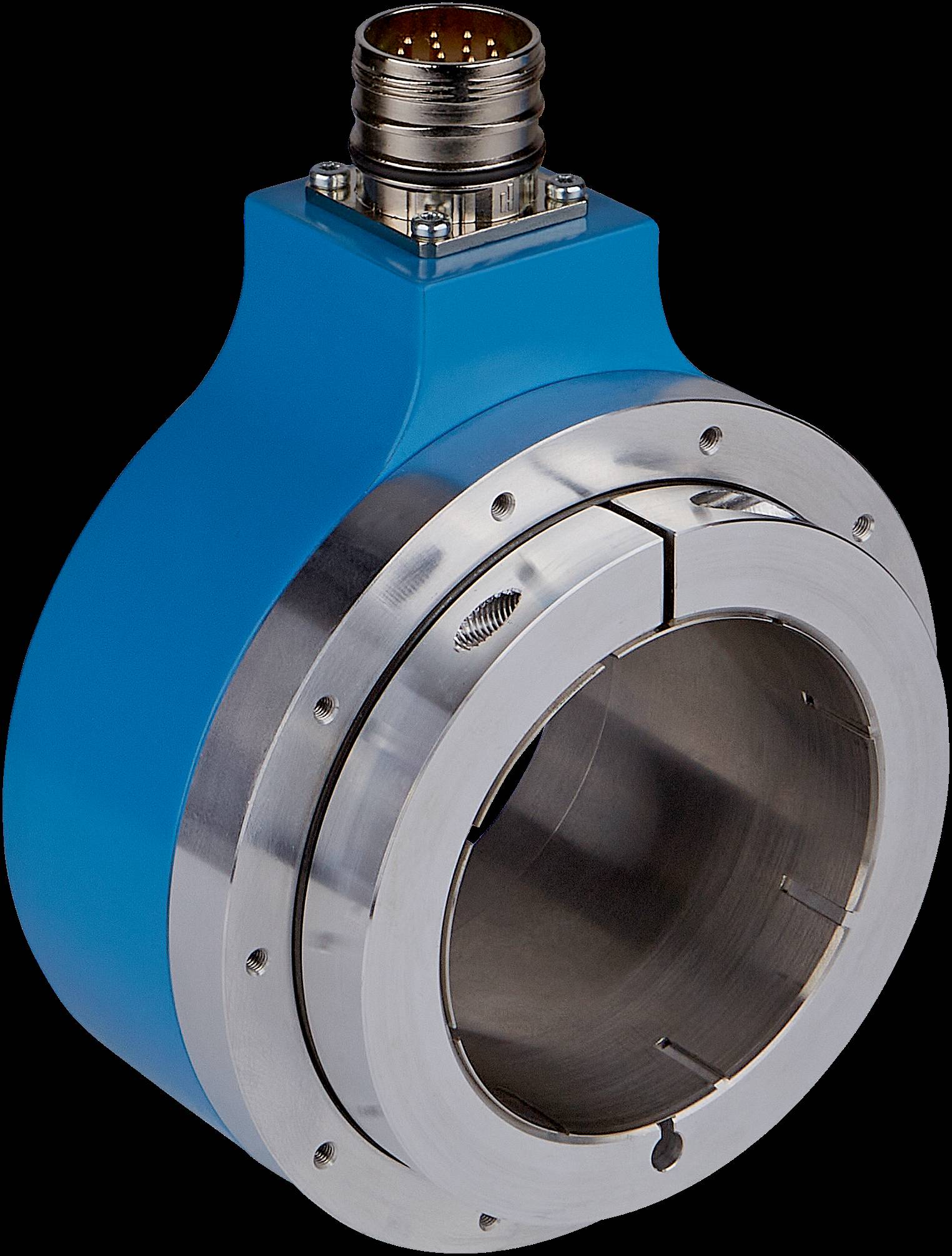

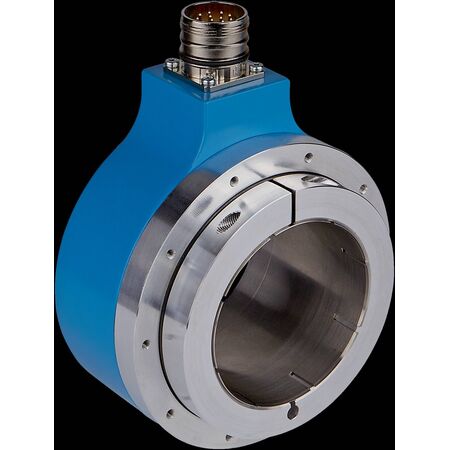

Incremental Rotary Encoder DGS80/90 | Up to 8192 Pulses | IP65 Rated | by SICK
The DGS80/90 incremental rotary encoder features large hollow shaft diameters of up to 65 mm and delivers up to 8192 pulses per revolution. Designed for industrial automation and motion control applications, this encoder is IP65 rated for dust and water protection, ensuring reliable performance in demanding environments. With multiple connection types and a compact design, it's perfect for seamless integration into your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DGS80/90 | Up to 8192 Pulses | IP65 Rated | by SICK
Brand: SICK
SKU: 1146050
Alternatively Known As: Incremental rotary encoder, hollow shaft encoder, motion control encoder, industrial encoder
Technical Specifications
- Pulses per revolution: up to 8,192
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12, M23, MS (Mil-Spec) plug and cable with flying leads
- Construction size (flange): Ø 110 mm
- Connection detail: Male connector, M23, 12-pin
- Supply voltage range: 5 V to 30 V
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192
- Enclosure rating IP65 for dust and water protection
- Communication interfaces: TTL, HTL
- Multiple connection types including M12, M23, MS (Mil-Spec) plug and cable with flying leads
- Collets available as accessories for shaft size adjustment
- Compact design with clamping ring for quick installation
- Universal stator couplings for easy mounting
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and motion control systems to ensure proper integration and safety.
Applications
- Industrial automation systems
- Asynchronous motor control
- Motion control sensor applications requiring large hollow shaft encoders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated design reduces need for frequent replacements
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80/90 incremental encoders are available for immediate purchase, ideal for industrial automation and motor control applications.
