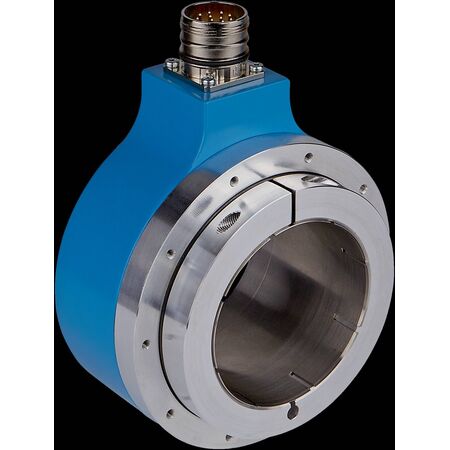

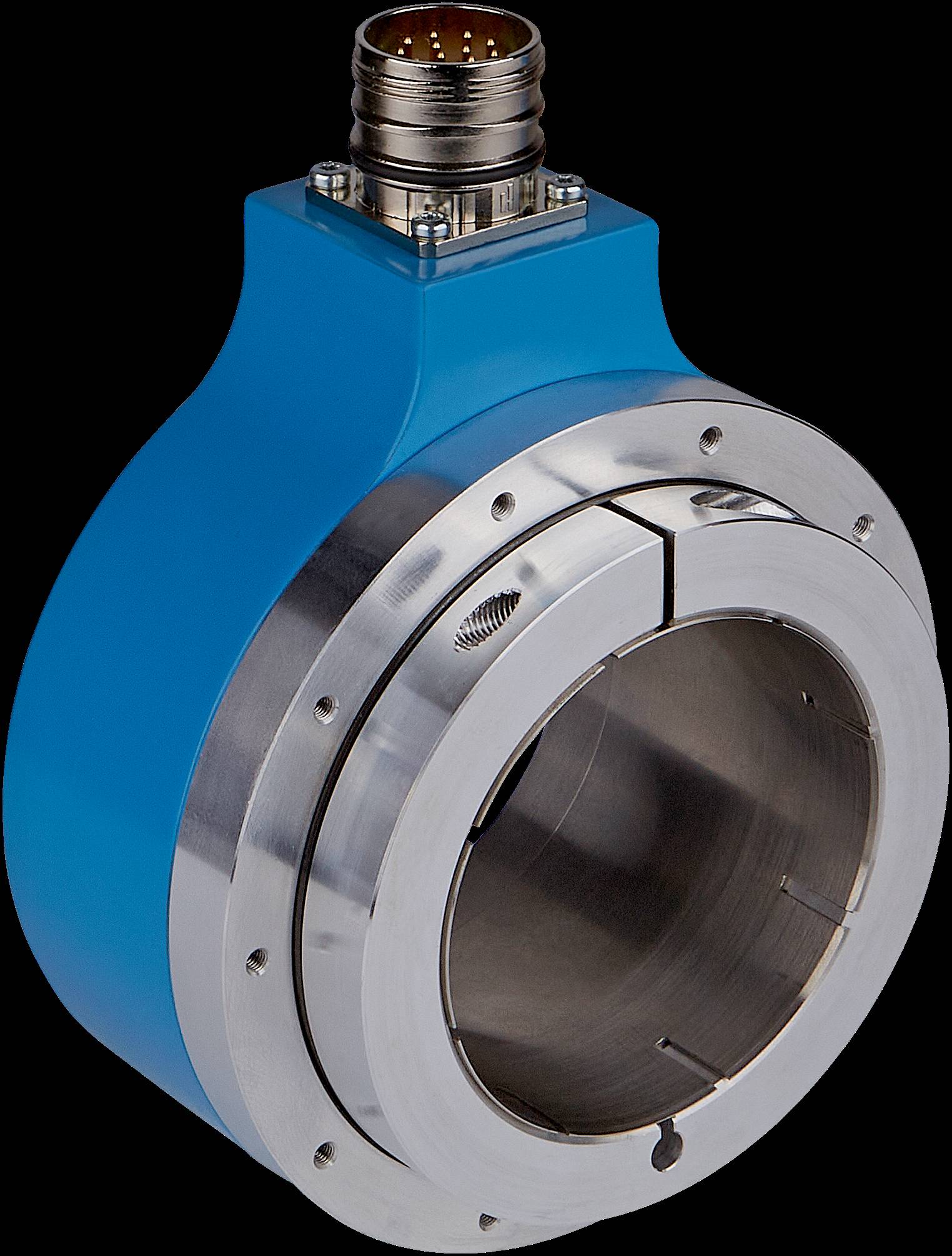

Incremental Rotary Encoder DGS80/90 | Up to 8192 Pulses | IP65 Rated | by SICK
The DGS80/90 incremental rotary encoder is designed for precision in industrial automation, featuring up to 8192 pulses per revolution and a robust IP65 enclosure for dust and water protection. With large hollow shaft diameters of 30 mm to 65 mm and multiple connection types, it's perfect for motion control in manufacturing and robotics, ensuring reliable feedback for asynchronous motors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DGS80/90 | Up to 8192 Pulses | IP65 Rated | by SICK
Brand: SICK
SKU: 1146052
Alternatively Known As: Incremental rotary encoder, hollow shaft encoder, industrial encoder, motion sensor encoder
Technical Specifications
- Pulses per revolution: up to 8,192
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12, M23, MS (Mil-Spec) plug, cable with flying leads
- Construction size (flange): Ø 110 mm
- Connection detail: Male connector, M23, 12-pin
- Supply voltage range: 5 V to 30 V
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192 for high resolution
- IP65 rated enclosure for dust and water protection
- Communication interfaces: TTL and HTL
- Multiple connection types including M12, M23, MS plug, and cable with flying leads
- Quick and easy installation with clamping ring and universal stator couplings
- Collets available as accessories for shaft size adjustment
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting.
Applications
- Industrial automation systems
- Asynchronous motor feedback
- Motion control in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK DGS80/90 incremental encoders are available for immediate purchase, ideal for industrial automation and motion control applications.
