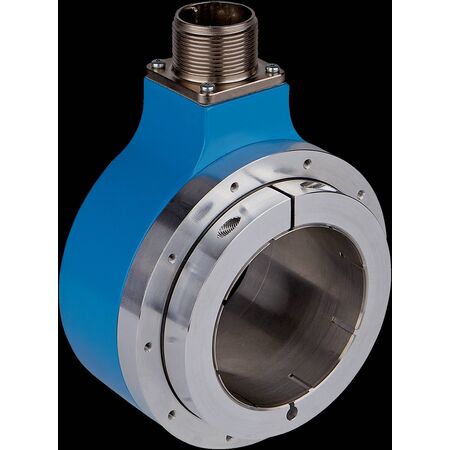

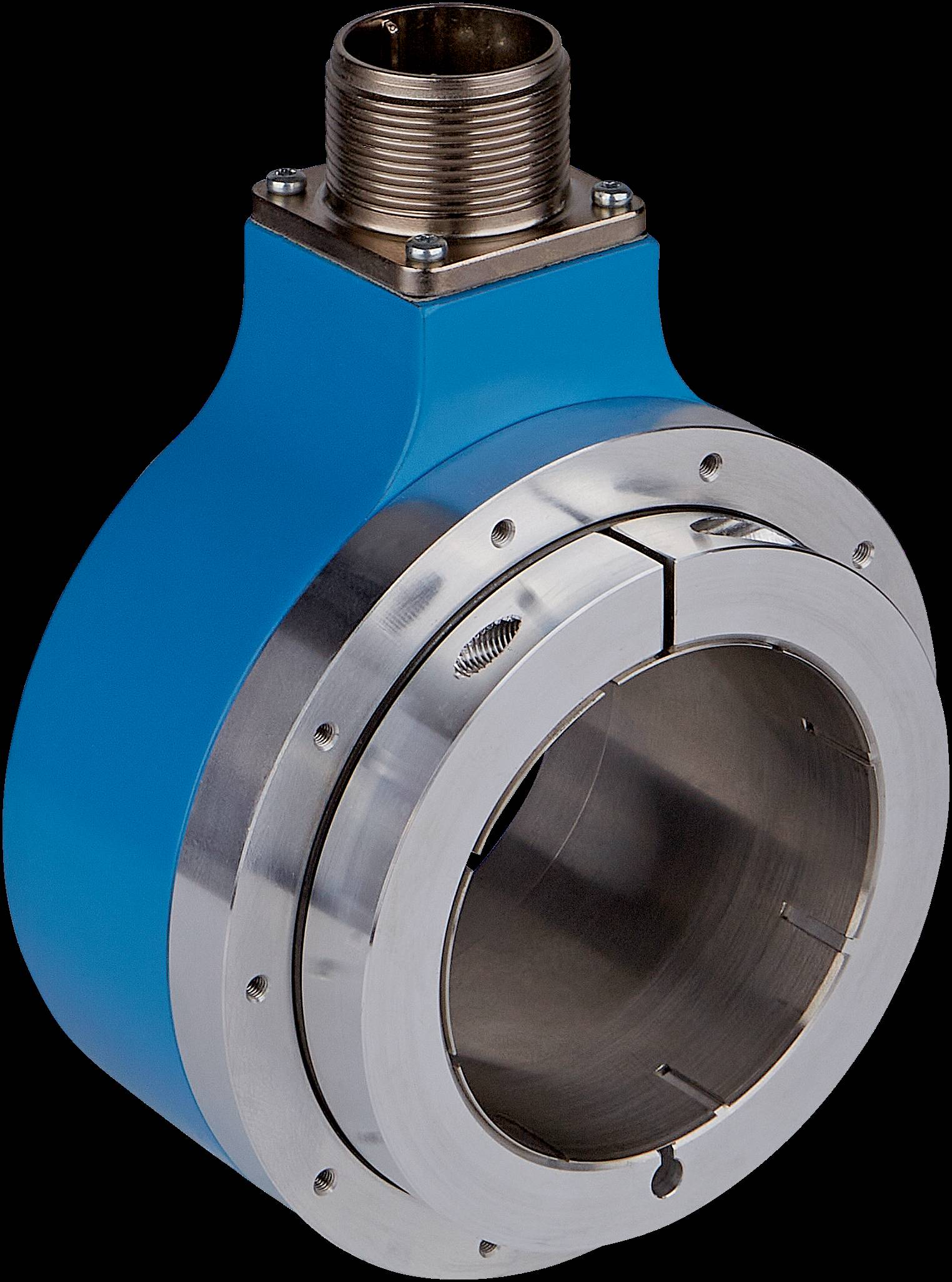

Incremental Rotary Encoder DGS80/90 | IP65 Enclosure | 2048 Pulses/Rev | Hollow Shaft Options | by SICK
The DGS80/90 incremental rotary encoder is designed for industrial automation, featuring a robust IP65 enclosure for dust and water protection. With up to 8192 pulses per revolution and large hollow shaft diameters of 30 mm, 42 mm, or 65 mm, it’s perfect for motion control applications. Ideal for integration with various control systems, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DGS80/90 | IP65 Enclosure | 2048 Pulses/Rev | Hollow Shaft Options | by SICK
Brand: SICK
SKU: 1146029
Alternatively Known As: Incremental rotary encoder, hollow shaft encoder, industrial encoder, motion control encoder
Technical Specifications
- Pulses per revolution: 2048 (up to 8192)
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12, M23, MS (Mil-Spec) plug, cable with flying leads
- Construction size (flange): Ø 110 mm
- Connection detail: Male connector, MS, 10-Pin
- Supply voltage range: 5 V to 30 V
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192
- Enclosure rating IP65 for dust and water protection
- Communication interfaces: TTL, HTL
- Multiple connection types including M12, M23, MS (Mil-Spec) plug and cable with flying leads
- Collets available as accessories for shaft size adjustment
- Compact design with clamping ring for quick installation
- Universal stator couplings for easy mounting
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation applications
- Integration with various control systems
- Asynchronous motors requiring rugged encoders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80/90 Incremental Encoders are available for immediate purchase, ideal for industrial automation and motion control sensor applications.
