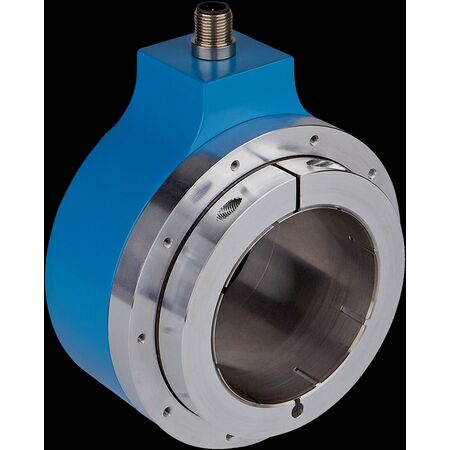

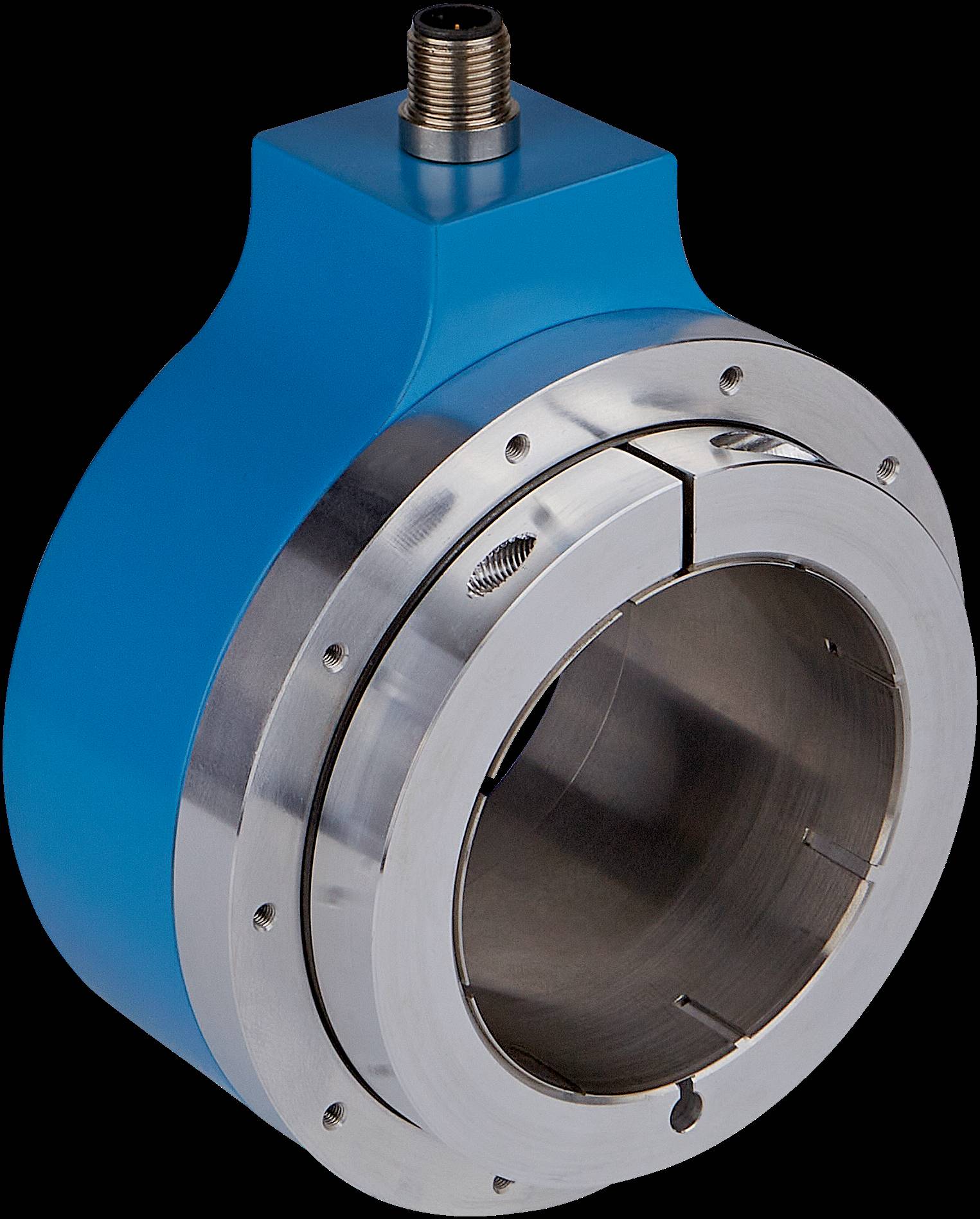

Incremental Rotary Encoder DGS80/90 | IP65 Enclosure | 2500 Pulses/Rev | Hollow Shaft Options | by SICK
The DGS80/90 incremental rotary encoder is designed for precision in industrial automation, featuring an IP65 enclosure for dust and water protection. With hollow shaft diameters of up to 65 mm and a pulse count of up to 8192, it's perfect for motion control in manufacturing and robotics. Easy to install with multiple connection types, this encoder ensures reliable feedback for asynchronous motors and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DGS80/90 | IP65 Enclosure | 2500 Pulses/Rev | Hollow Shaft Options | by SICK
Brand: SICK
SKU: 1146043
Alternatively Known As: Incremental rotary encoder, hollow shaft encoder, industrial encoder, motion sensor encoder
Technical Specifications
- Pulses per revolution: 2500 (up to 8192)
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12 male connector (8-pin), M23, MS plug, cable with flying leads
- Supply voltage range: 5 V to 30 V
- Construction size (flange): Ø 110 mm
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192
- Enclosure rating IP65 for dust and water protection
- Communication interfaces: TTL and HTL
- Multiple connection types including M12, M23, MS plug, and cable with flying leads
- Quick and easy installation with clamping ring and universal stator couplings
- Collets available as accessories for shaft size adjustment
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, electrical connection, and integration with control systems.
Applications
- Industrial automation systems
- Asynchronous motor feedback
- Motion control in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against defects.
Available Now
The SICK DGS80/90 incremental encoders are available for immediate purchase, ideal for industrial automation and motion control applications.
