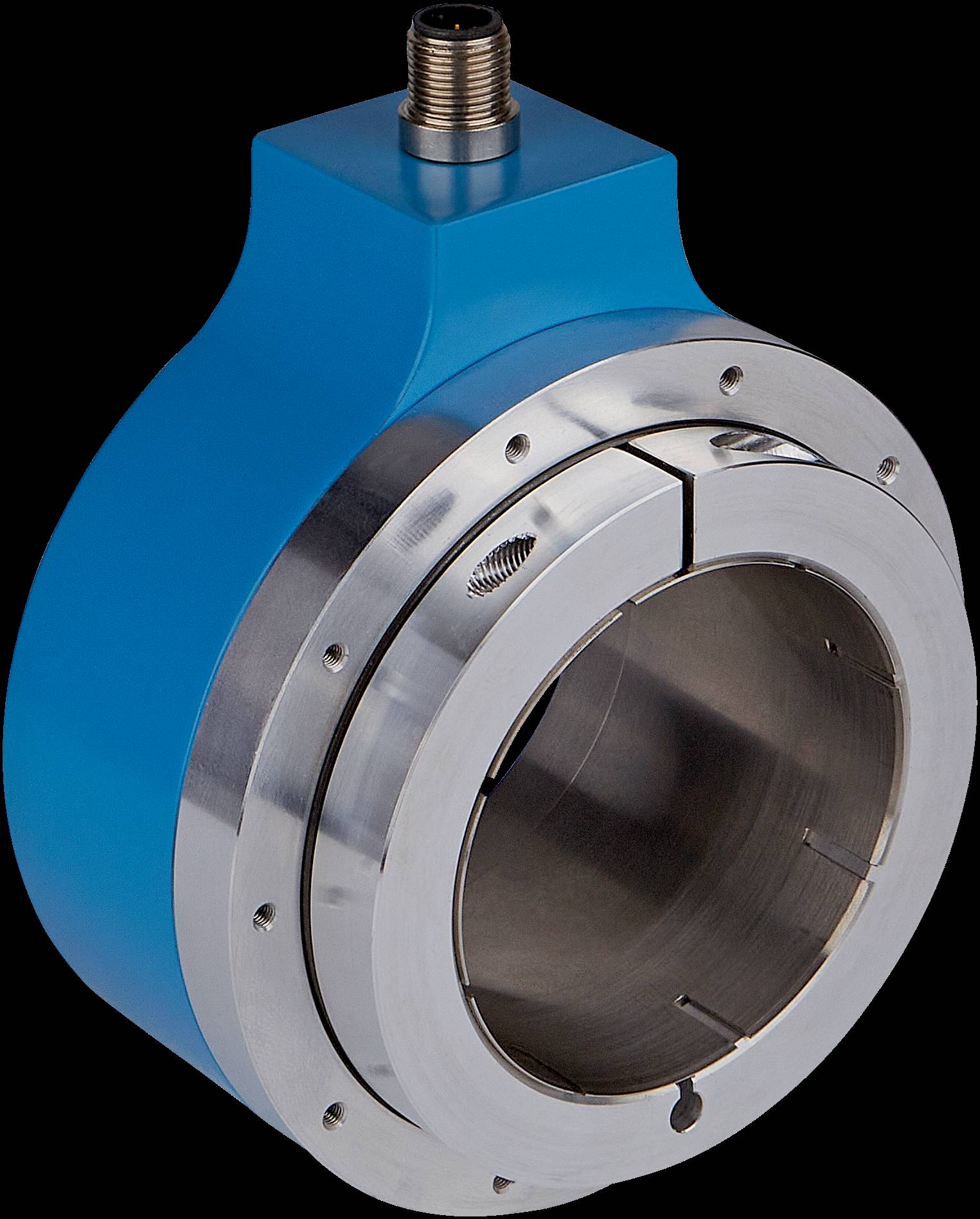

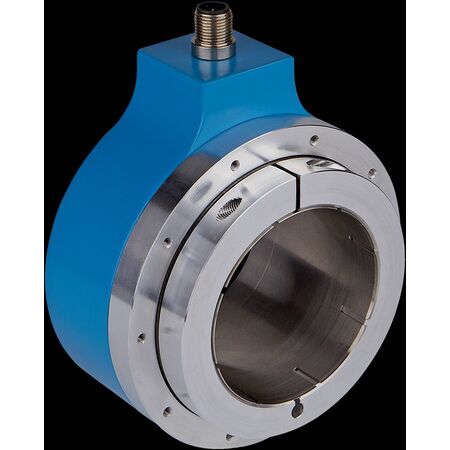

Incremental Rotary Encoder DGS80/90 | IP65 Rated | 4096 Pulses/Rev | Hollow Shaft Options | by SICK
The DGS80/90 incremental rotary encoder is designed for industrial automation, featuring a robust IP65 enclosure for dust and water protection. With up to 8192 pulses per revolution and large hollow shaft diameters of 30 mm, 42 mm, or 65 mm, it’s perfect for motion control applications. Multiple connection types ensure compatibility with various systems, making it an ideal choice for precise motor control and sensor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DGS80/90 | IP65 Rated | 4096 Pulses/Rev | Hollow Shaft Options | by SICK
Brand: SICK
SKU: 1146044
Alternatively Known As: Incremental rotary encoder, hollow shaft encoder, industrial encoder, motion sensor encoder
Technical Specifications
- Pulses per revolution: 4096 (up to 8192)
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12 male connector (8-pin), M23, MS (Mil-Spec) plug, cable with flying leads
- Construction size (flange): Ø 110 mm
- Supply voltage range: 5 V to 30 V
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192
- Enclosure rating IP65 for dust and water protection
- Communication interfaces: TTL and HTL
- Multiple connection types including M12, M23, MS (Mil-Spec) plug, and cable with flying leads
- Collets available as accessories for shaft size adjustment
- Compact design with clamping ring for quick installation
- Universal stator couplings for flexible mounting
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting.
Applications
- Industrial automation systems
- Asynchronous motor control
- Motion control sensor applications requiring large hollow shaft encoders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated design reduces need for frequent replacements
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80/90 incremental encoders are available for immediate purchase, ideal for industrial automation and motion control applications requiring robust and precise shaft encoders.
