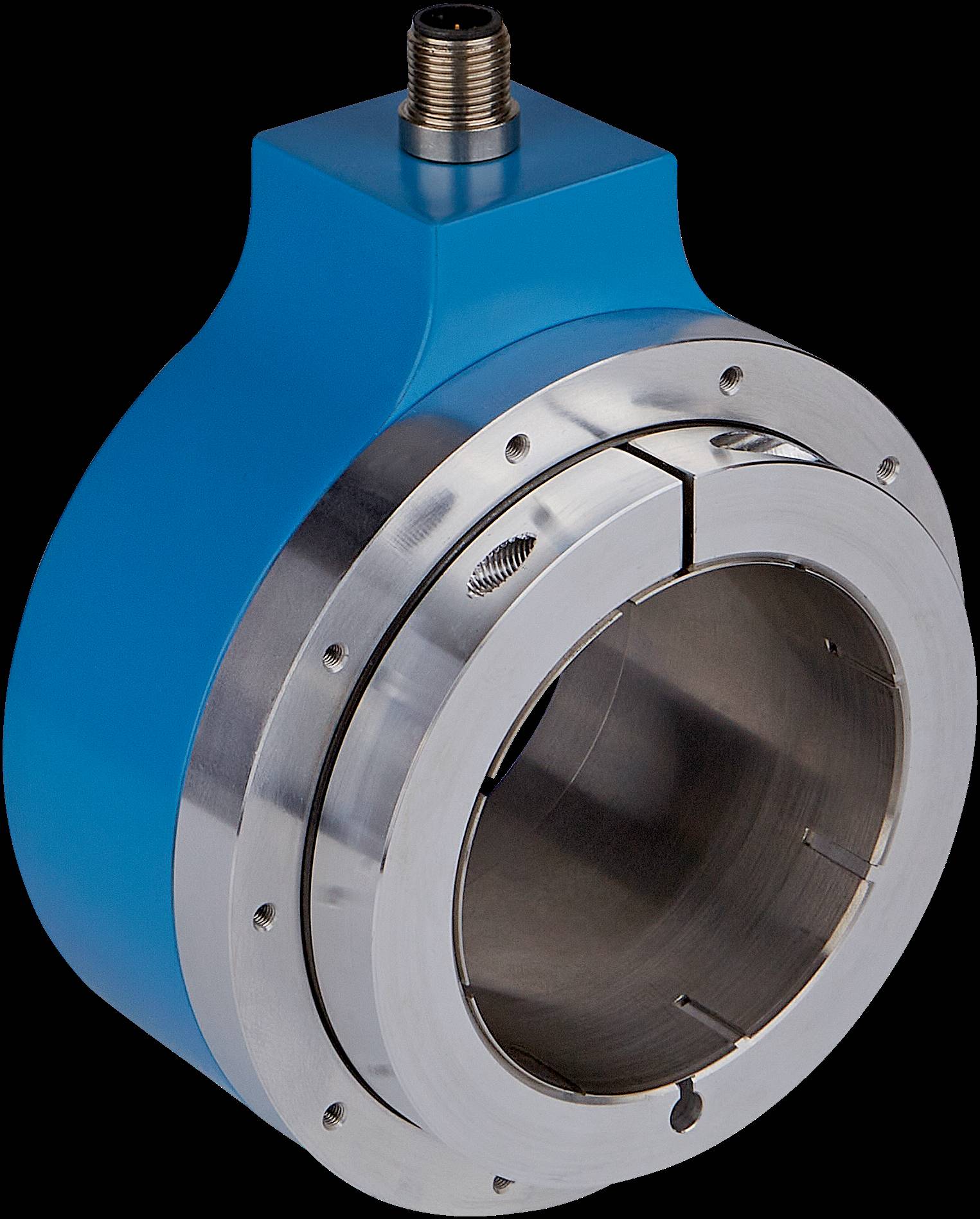

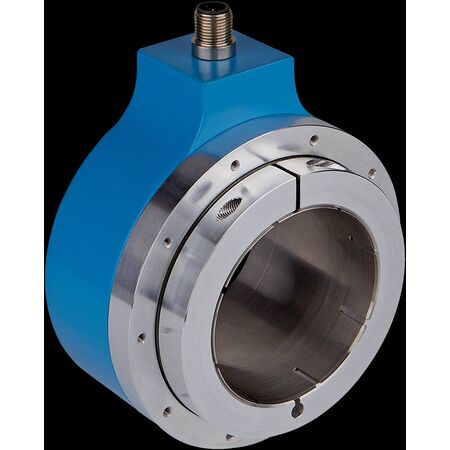

Incremental Rotary Encoder DGS80/90 | IP65 Rated | 8192 Pulses/Rev | Hollow Shaft Diameter 42mm/65mm | by SICK
The DGS80/90 incremental rotary encoder is designed for precision in industrial automation, featuring up to 8192 pulses per revolution and a robust IP65 enclosure for dust and water protection. With large hollow shaft diameters of 42mm for DGS80 and 65mm for DGS90, it’s perfect for motion control in manufacturing and robotics. Easy to install with multiple connection types, this encoder ensures reliable feedback for asynchronous motors and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DGS80/90 | IP65 Rated | 8192 Pulses/Rev | Hollow Shaft Diameter 42mm/65mm | by SICK
Brand: SICK
SKU: 1146041
Alternatively Known As: Incremental rotary encoder, hollow shaft encoder, industrial encoder, motion sensor encoder
Technical Specifications
- Pulses per revolution: 1024 (up to 8192)
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12 male connector (8-pin), M23, MS plug, cable with flying leads
- Construction size (flange): Ø 110 mm
- Supply voltage range: 5 V to 30 V
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192
- Enclosure rating IP65 for dust and water protection
- Communication interfaces TTL and HTL
- Multiple connection types including M12, M23, MS plug, and cable with flying leads
- Quick and easy installation with clamping ring and universal stator couplings
- Collets available as accessories for shaft size adjustment
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation systems
- Asynchronous motor feedback
- Motion control in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years depending on purchase terms.
Available Now
The SICK DGS80/90 incremental encoders are available for immediate purchase, ideal for industrial automation and motion control applications.
