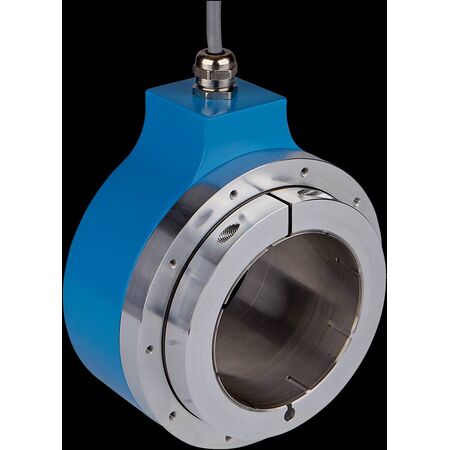

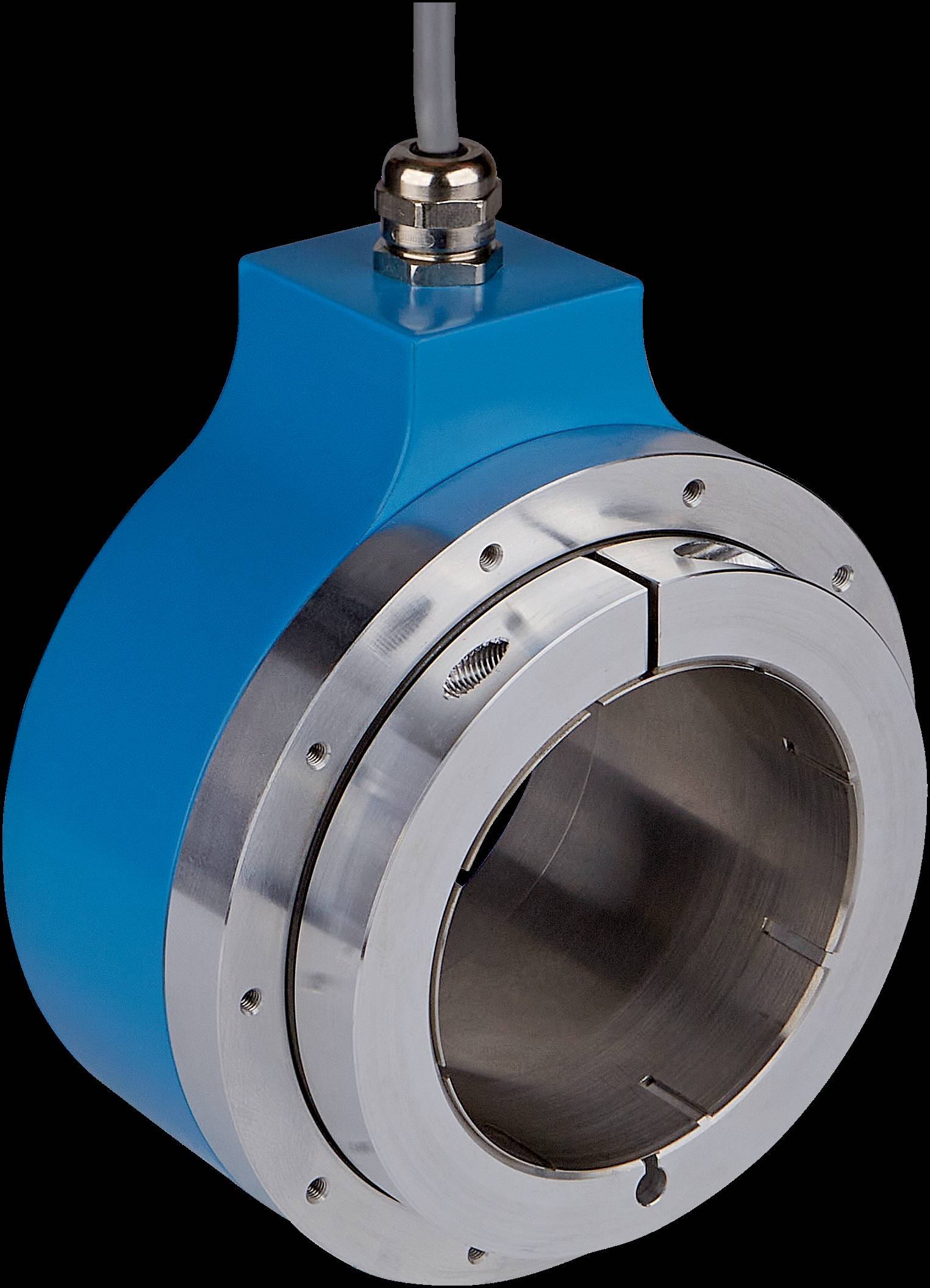

Incremental Rotary Encoder DGS80/90 | IP65 Rated | Up to 8192 Pulses | Hollow Shaft Options | by SICK
The DGS80/90 incremental rotary encoder is designed for precision in industrial automation, featuring a robust IP65 rating for dust and water protection. With hollow shaft diameters of up to 65 mm and the ability to deliver up to 8192 pulses per revolution, it's perfect for motion control and speed measurement applications. Ideal for professionals in automation systems, this encoder ensures reliable performance and easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Rotary Encoder DGS80/90 | IP65 Rated | Up to 8192 Pulses | Hollow Shaft Options | by SICK
Brand: SICK
SKU: 1146068
Alternatively Known As: Incremental rotary encoder, hollow shaft encoder, industrial encoder, motion sensor encoder
Technical Specifications
- Pulses per revolution: up to 8,192
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12, M23, MS (Mil-Spec) plug, cable with flying leads
- Supply voltage range: 5 V to 30 V
- Construction size (flange): Ø 110 mm
- Connection detail: cable, 8-wire
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192
- Enclosure rating IP65 for dust and water protection
- Communication interfaces: TTL and HTL
- Multiple connection types including M12, M23, MS plug, and cable with flying leads
- Collets available as accessories for shaft size adjustment
- Compact design with clamping ring for quick installation
- Universal stator couplings for easy mounting
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation systems to ensure proper integration and safety.
Applications
- Industrial automation systems
- Asynchronous motor control
- Motion control sensors
- Shaft position and speed measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated design reduces need for frequent replacements
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80/90 incremental encoders are available for immediate purchase, ideal for industrial automation and motor control applications.
