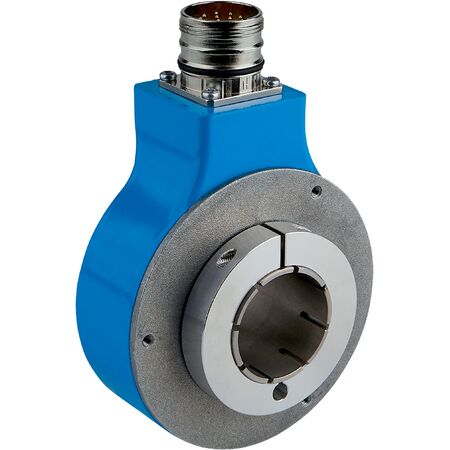

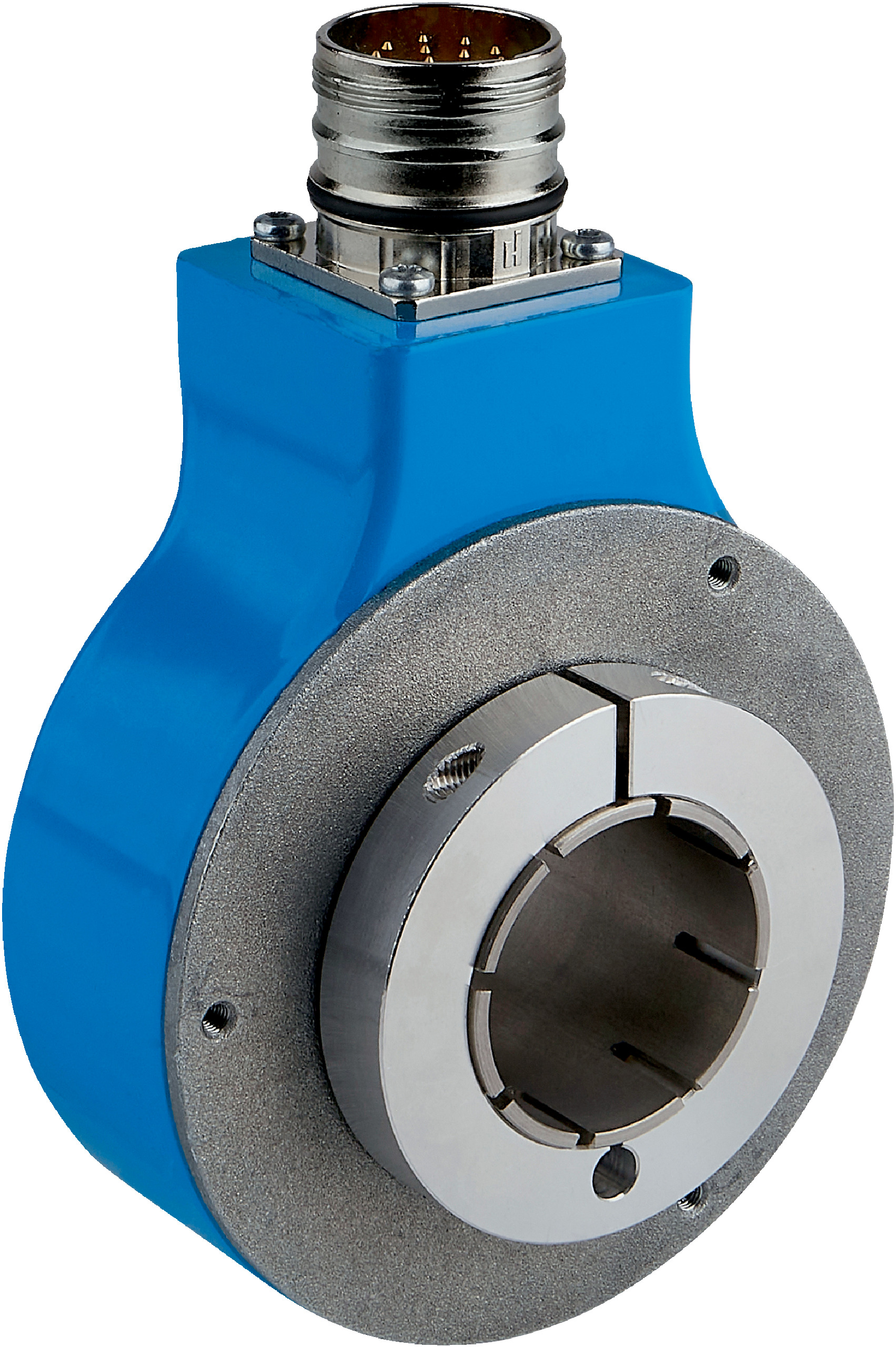

Incremental Rotary Encoder DGS80B-TSHA01024 | 1024 Pulses/Rev | IP65 Rated | Robust Hollow Shaft Design | by SICK
The Incremental Rotary Encoder DGS80B-TSHA01024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and motion control applications. With a robust through hollow shaft design and an IP65 rated enclosure, it ensures reliable performance in harsh environments. This encoder features a fast initialization time of less than 50 ms and low power consumption, making it perfect for robotics and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (accessory available)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm at +20 °C
- Operating torque: 5 Ncm at +20 °C
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25 °C to +85 °C
- Storage temperature range: -25 °C to +85 °C (without package)
- Shock resistance: 250 g, 6 ms (EN 60068-2-27)
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 50mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust through hollow shaft mechanical design with 30 mm shaft diameter
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Operating temperature range from -25 °C to +85 °C
- Low power consumption of ≤ 0.85 W
- Fast initialization time of less than 50 ms
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TSHA01024 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
