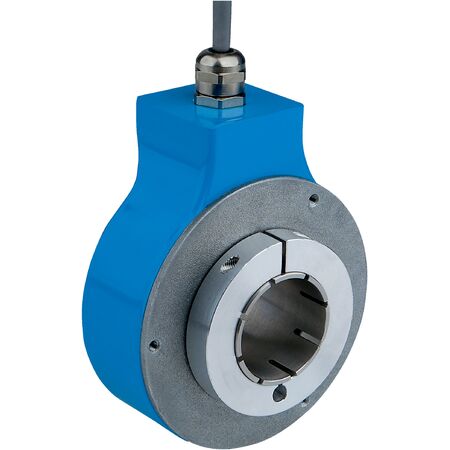

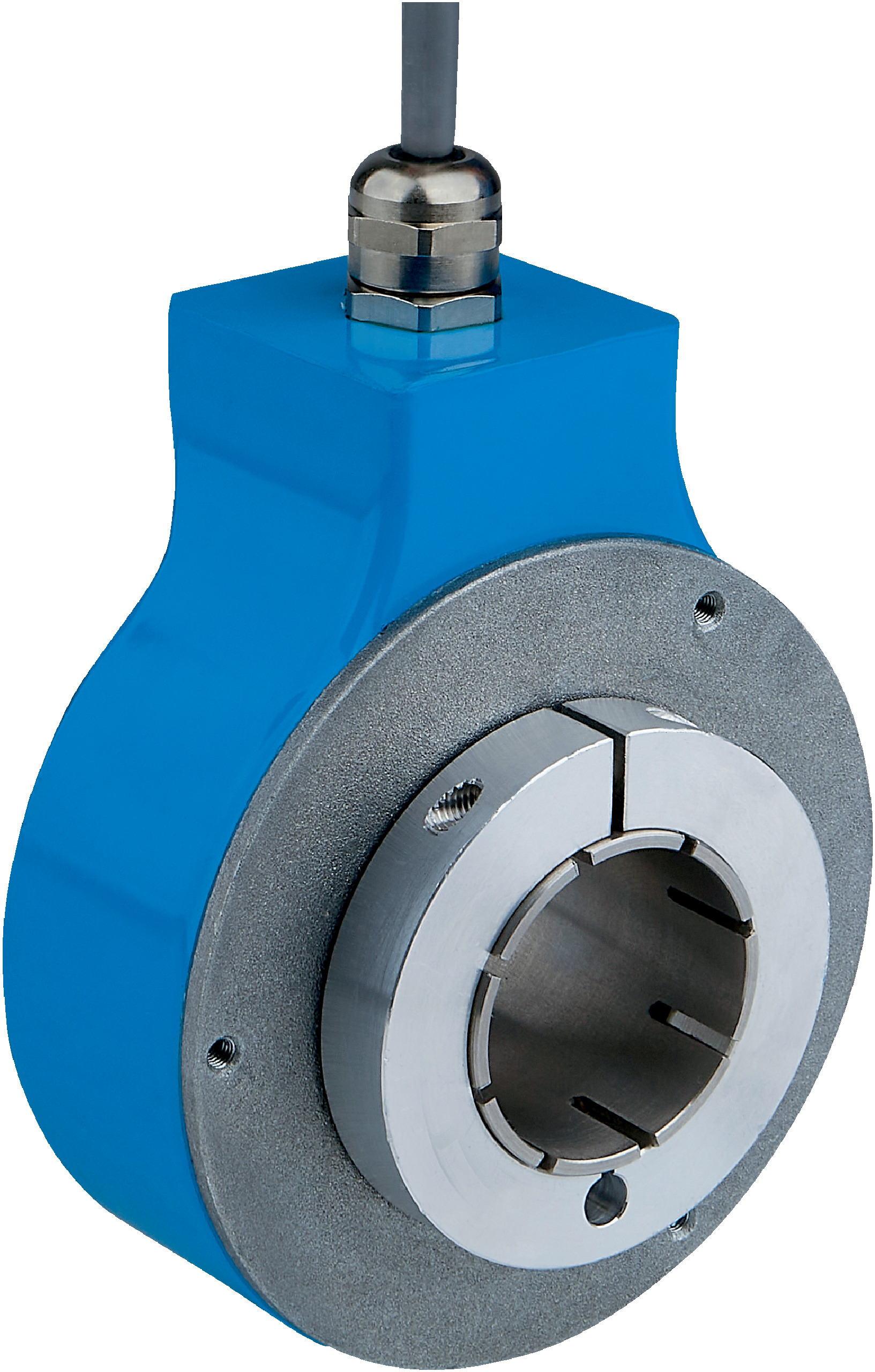

Incremental Rotary Encoder DGS80B-TSHK01024 | 1024 Pulses/Rev | IP65 Rated | Through Hollow Shaft Design | by SICK
The DGS80B-TSHK01024 incremental rotary encoder delivers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust through hollow shaft design and IP65 enclosure ensure durability in challenging environments, while features like reverse polarity protection and a fast initialization time under 50 ms enhance reliability for demanding tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (accessory available)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Cable material: PUR
- Shaft sealing ring material: FKM70
- Cable gland material: Nickel-plated brass
- Start up torque: 6 Ncm at +20°C
- Operating torque: 5 Ncm at +20°C
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25°C to +85°C
- Storage temperature range: -25°C to +85°C (without package)
- Shock resistance: 250 g, 6 ms (EN 60068-2-27)
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 80mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Through hollow shaft mechanical design with 30 mm shaft diameter
- Robust construction with ZAMAC die cast housing and flange
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection on outputs
- Operating temperature range from -25°C to +85°C
- Low startup torque of 6 Ncm and operating torque of 5 Ncm
- High bearing lifetime of 10^9 revolutions
- 6-channel incremental TTL/RS-422 communication interface
- Fast initialization time under 50 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and industrial electrical standards to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool feedback and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.85 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TSHK01024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
