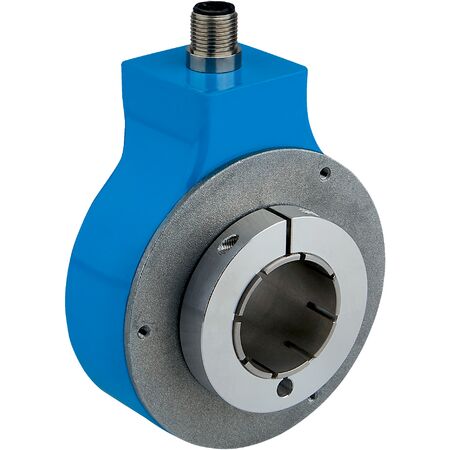

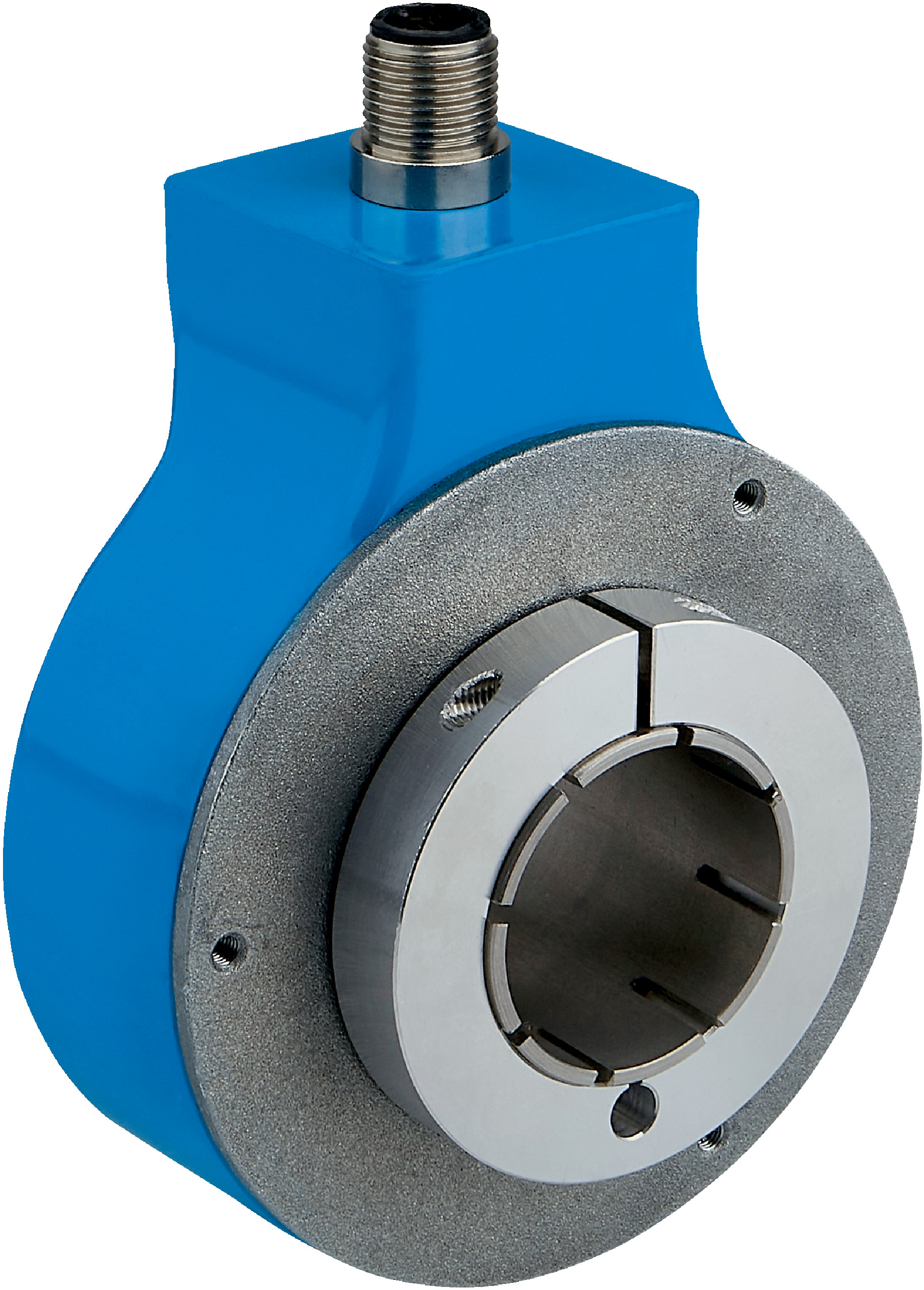

Incremental Rotary Encoder DGS80B-TSLC01024 | 1024 Pulses/Rev | IP65 Rated | Through Hollow Shaft Design | by SICK
The DGS80B-TSLC01024 incremental rotary encoder delivers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics applications. Its robust IP65-rated housing ensures protection against dust and water, while the through hollow shaft design allows for easy integration into various systems. With features like reverse polarity protection and a wide operating temperature range, this encoder is built for reliability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ± 15° electrical
- Duty cycle: ≤ 0.5 ± 15 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 5 ... 30 V
- Reference signal position: 90°, electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (slot available as accessory)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Cable material: PUR
- Shaft sealing ring material: FKM70
- Cable gland material: Nickel-plated brass
- Start up torque: 6 Ncm (+20 °C)
- Operating torque: 5 Ncm (+20 °C)
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: –25 °C to +85 °C
- Storage temperature range: –25 °C to +85 °C without package
- Resistance to shocks: 250 g, 6 ms (EN 60068-2-27)
- Resistance to vibration: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 80mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Through hollow shaft mechanical design with 30 mm shaft diameter
- Robust housing and flange made of ZAMAC die cast
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -25 °C to +85 °C
- Low power consumption of ≤ 0.85 W
- 6-channel incremental HTL / Push pull communication interface
- High resistance to shocks (250 g) and vibration (10 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Safety-related machinery monitoring
- Position and speed measurement in manufacturing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DGS80B-TSLC01024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
