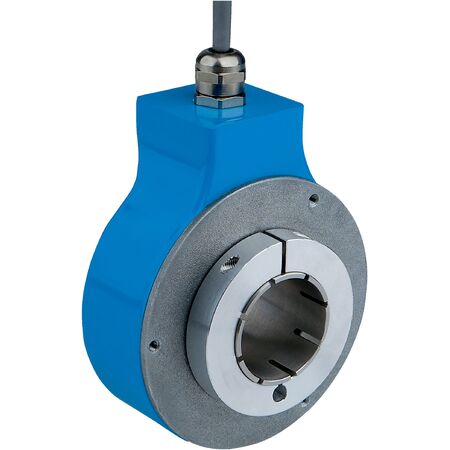

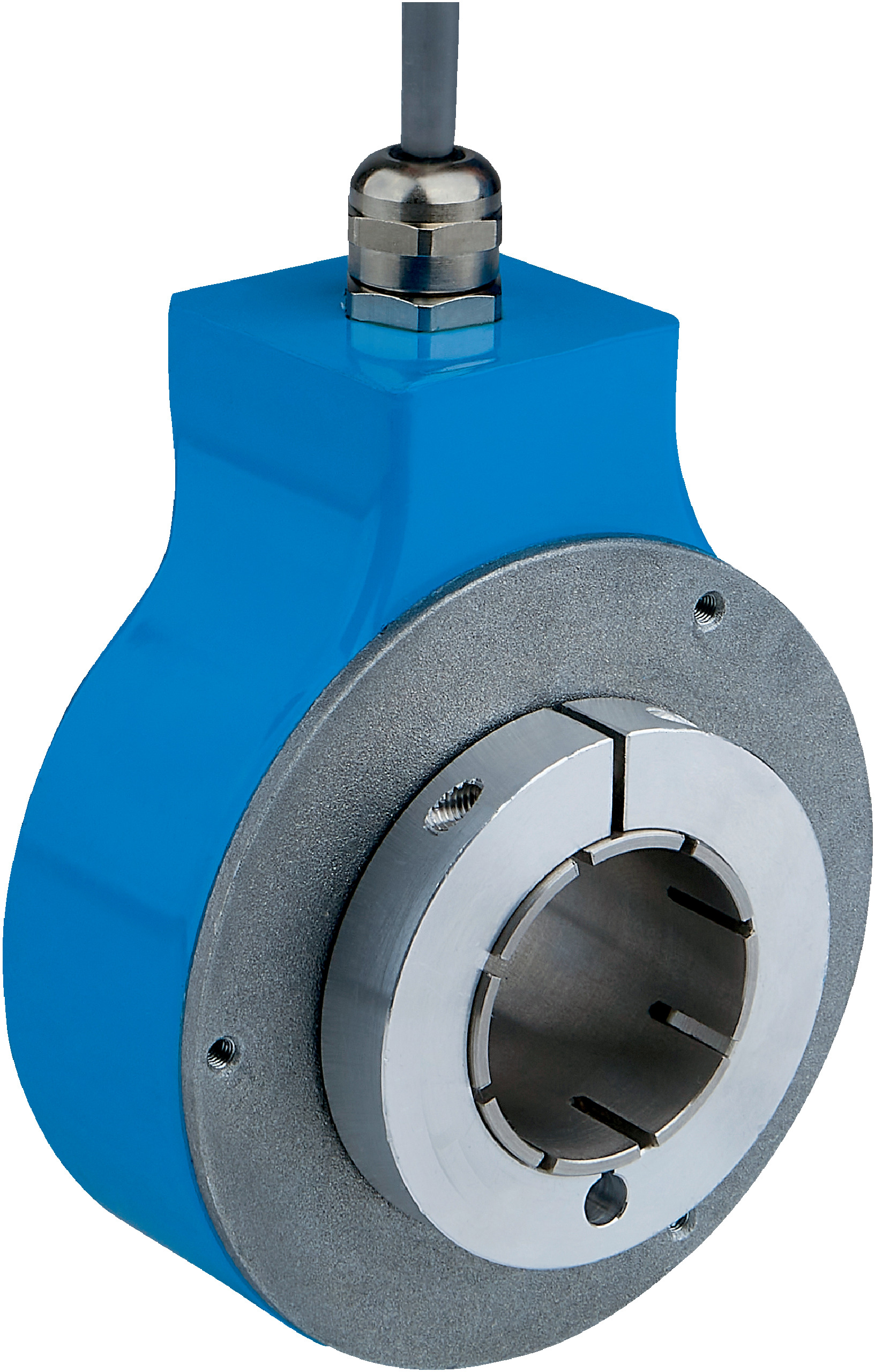

Incremental Rotary Encoder DGS80B-TSLK02048 | 2048 Pulses/Rev | IP65 Rated | Through Hollow Shaft Design | by SICK
The DGS80B-TSLK02048 incremental rotary encoder is designed for precision in industrial automation, featuring 2048 pulses per revolution and a robust through hollow shaft design with a 30 mm diameter. With an IP65 rating, it withstands harsh environments, making it ideal for position and speed measurement in machinery and safety-related monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2048
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (accessory available)
- Weight: 650 g
- Shaft material: Aluminum
- Housing material: ZAMAC die cast
- Cable material: PUR
- Shaft sealing ring material: FKM70
- Cable gland material: Nickel-plated brass
- Start up torque: 6 Ncm at +20 °C
- Operating torque: 5 Ncm at +20 °C
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25 °C to +85 °C
- Storage temperature range: -25 °C to +85 °C without package
- Shock resistance: 250 g, 6 ms
- Vibration resistance: 10 g, 5 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 80mm x 80mm
- Weight: 0.65 kg
Key Features
- Incremental communication interface with HTL / Push pull
- 6-channel signal output with up to 300 kHz frequency
- Through hollow shaft mechanical design with 30 mm shaft diameter
- High protection rating IP65 suitable for harsh environments
- Reverse polarity and short-circuit protection
- Operating temperature range from -25 °C to +85 °C
- Robust construction with ZAMAC die cast housing and aluminum shaft
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Position and speed measurement in machinery
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 0.85 W reduces energy usage
- Durable materials and high protection rating extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DGS80B-TSLK02048 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
