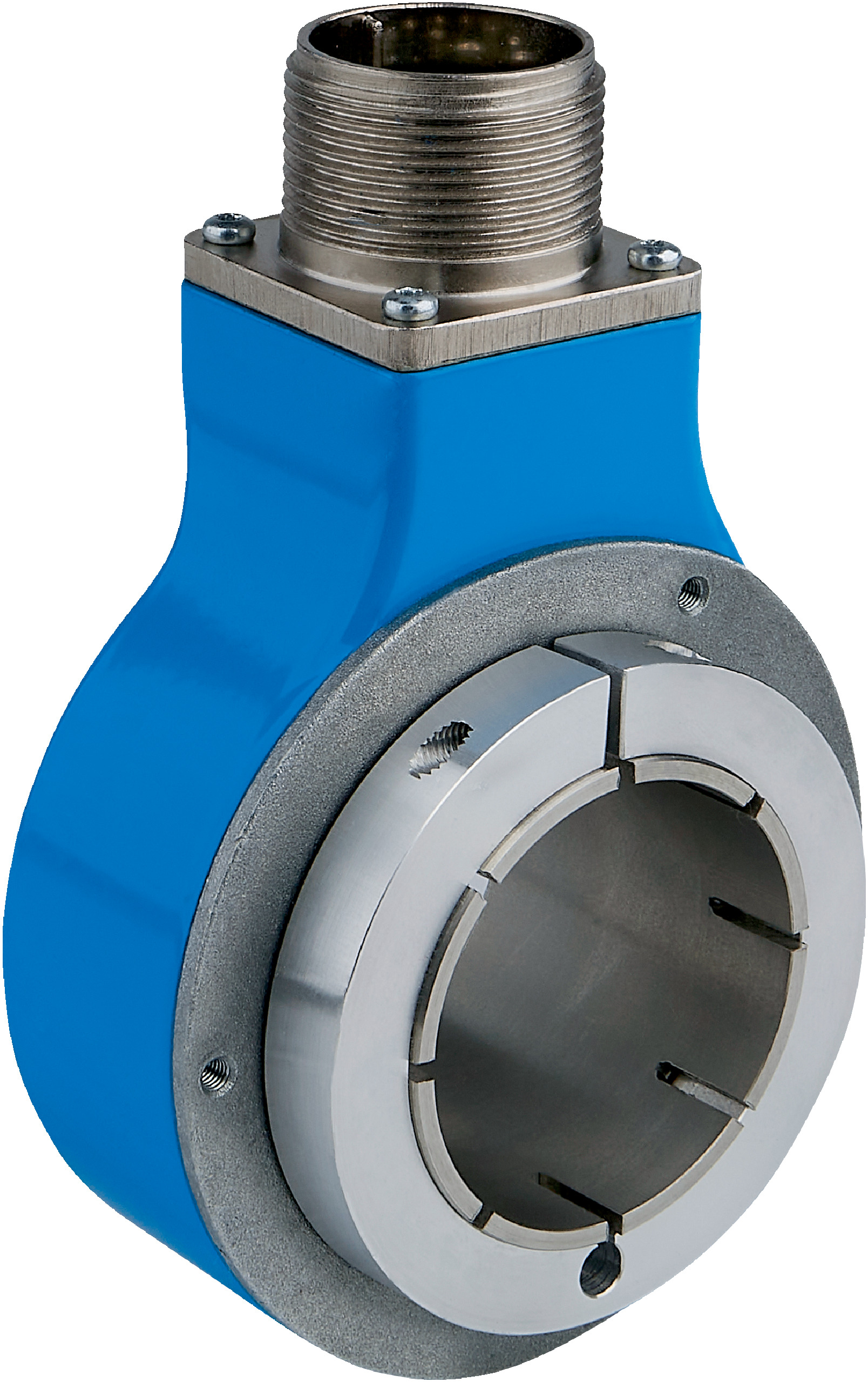

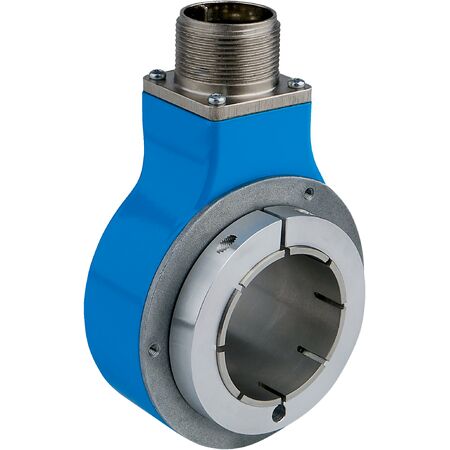

Incremental Rotary Encoder DGS80B-TYL402500 | 2500 Pulses/Rev | IP65 Rated | Through Hollow Shaft Design | by SICK
The DGS80B-TYL402500 incremental rotary encoder delivers high precision with 2,500 pulses per revolution, making it ideal for industrial automation and control systems. Its robust through hollow shaft design and IP65 rated enclosure ensure reliable performance in harsh environments, while features like reverse polarity protection and low power consumption enhance its durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,500
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, MS, 10-pin, radial
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 42 mm
- Flange type: 1-sided stator coupling
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm at +20°C
- Operating torque: 5 Ncm at +20°C
- Permissible shaft loading: 160 N radial, 100 N axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 877 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25°C to +85°C
- Storage temperature range: -25°C to +85°C without package
- Resistance to shocks: 250 g, 6 ms (EN 60068-2-27)
- Resistance to vibration: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 80mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 2,500 pulses per revolution
- Through hollow shaft design with 42 mm diameter
- Robust housing and flange made of ZAMAC die cast
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -25°C to +85°C
- Low power consumption of ≤ 0.85 W
- High mechanical durability with bearing lifetime of 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Position and speed measurement in machinery
- Robotics and conveyor systems
- Safety-related monitoring in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK DGS80B-TYL402500 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
