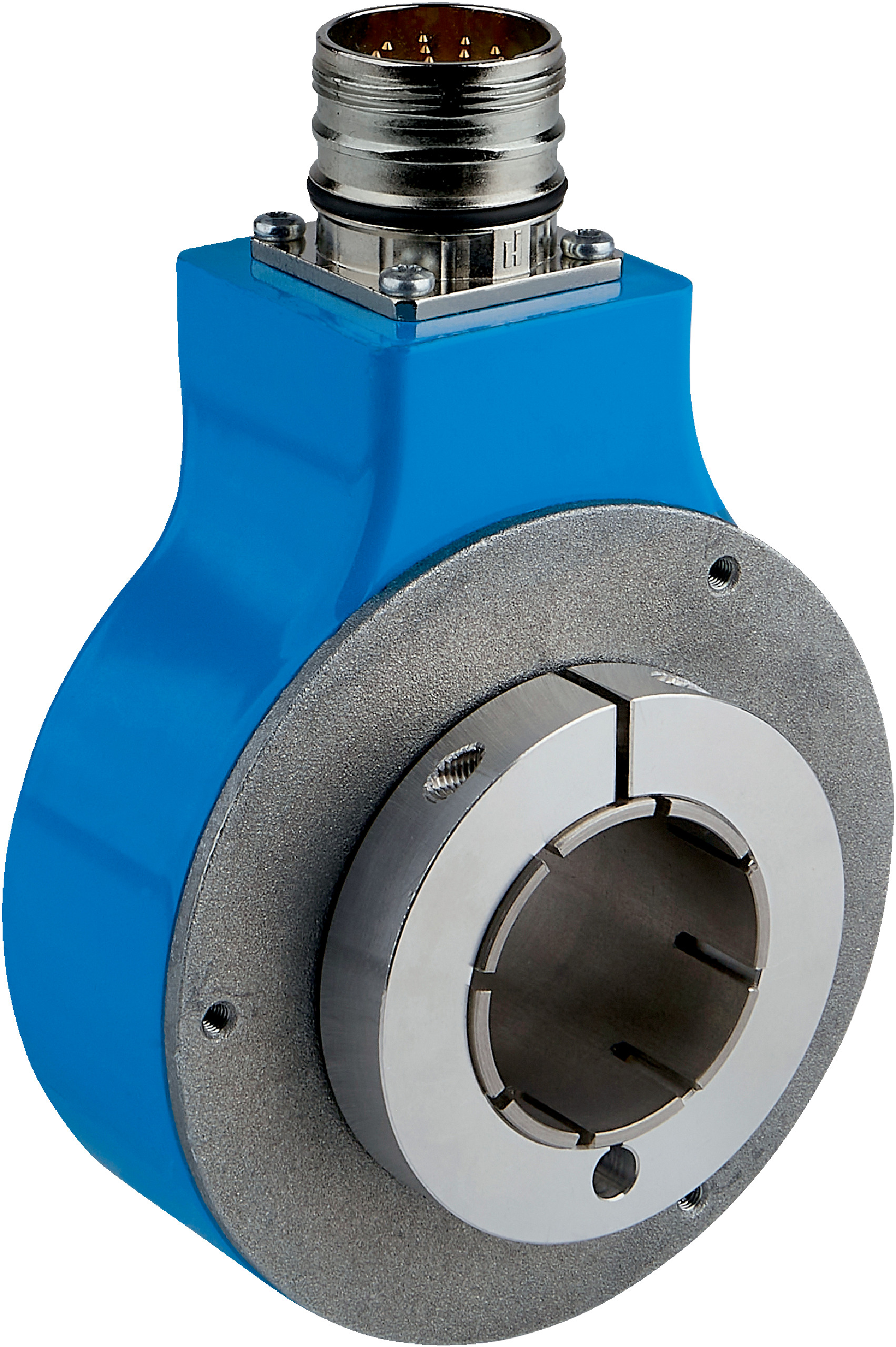

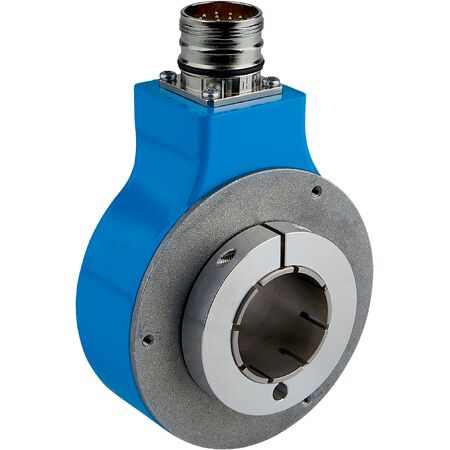

Incremental Rotary Encoder DGS80B-TSLA02500 | 2500 PPR | IP65 Rated | Robust Design | by SICK
The DGS80B-TSLA02500 incremental rotary encoder delivers high precision with 2500 pulses per revolution, making it ideal for industrial automation and robotics applications. Its robust design features a through hollow shaft and aluminum construction, ensuring durability and reliability in demanding environments. With an IP65 rating for dust and water protection, this encoder is perfect for safety-related monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,500
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (accessory available)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm at +20°C
- Operating torque: 5 Ncm at +20°C
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25°C to +85°C
- Storage temperature range: -25°C to +85°C without package
- Shock resistance: 250 g, 6 ms (EN 60068-2-27)
- Vibration resistance: 10 g, 5 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 80mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 2,500 pulses per revolution
- Incremental communication interface with HTL / Push pull
- Robust mechanical design with through hollow shaft and aluminum shaft
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -25°C to +85°C
- Low power consumption of ≤ 0.85 W
- High mechanical durability with bearing lifetime of 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial electrical standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DGS80B-TSLA02500 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
