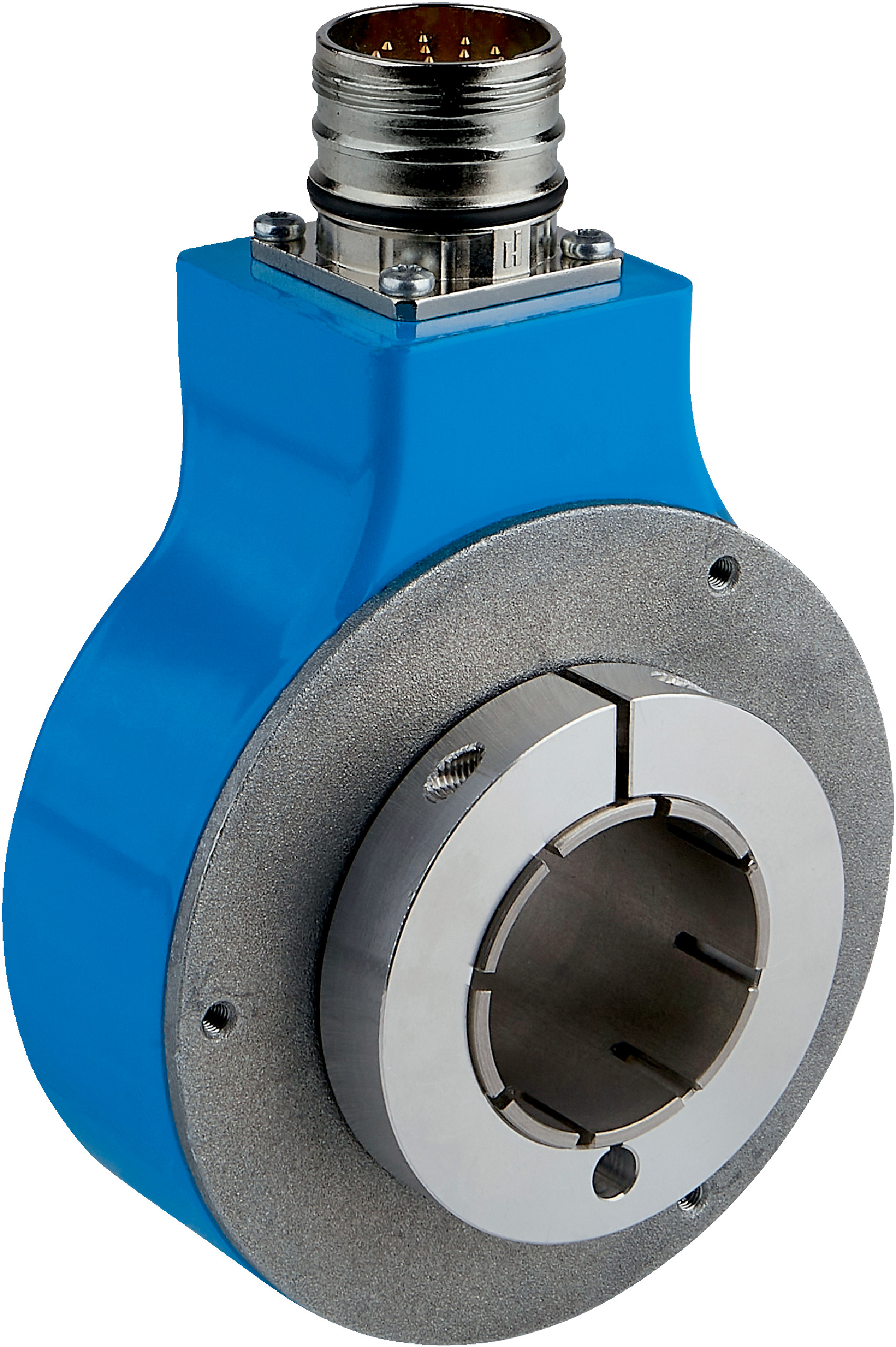

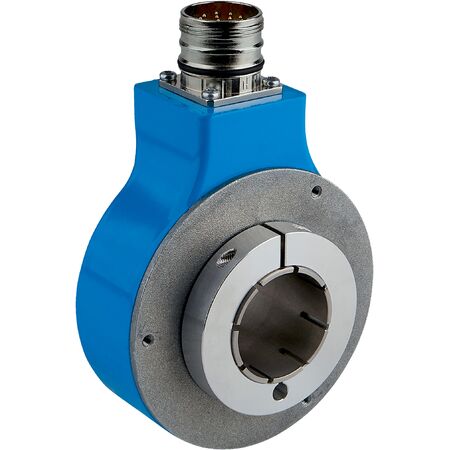

Incremental Rotary Encoder DGS80B-TSHA04096 | 4096 Pulses/Rev | IP65 Rated | Through Hollow Shaft Design | by SICK
The DGS80B-TSHA04096 incremental rotary encoder delivers high precision with 4,096 pulses per revolution, making it ideal for industrial automation and control systems. Its robust through hollow shaft design and IP65 rated enclosure ensure durability and protection against dust and water, while reverse polarity and short-circuit protection enhance safety in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 4,096
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6-channel
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (slot available as accessory)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm at +20 °C
- Operating torque: 5 Ncm at +20 °C
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25 °C to +85 °C
- Storage temperature range: -25 °C to +85 °C (without package)
- Shock resistance: 250 g, 6 ms
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz
- Dimensions (H x L x W): 80mm x 40mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Through hollow shaft mechanical design with 30 mm shaft diameter
- Robust housing and flange made of ZAMAC die cast
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection on outputs
- Operating temperature range from -25 °C to +85 °C
- Low power consumption of ≤ 0.85 W
- High mechanical durability with bearing lifetime of 10^9 revolutions
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TSHA04096 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
