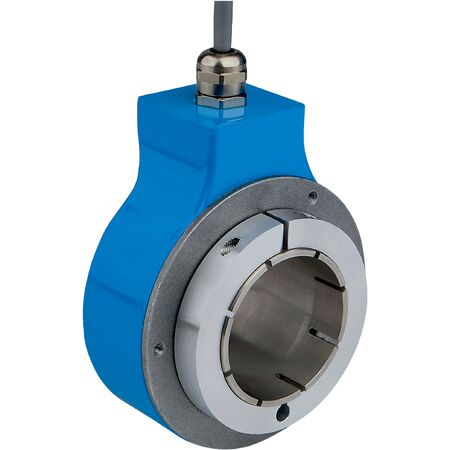

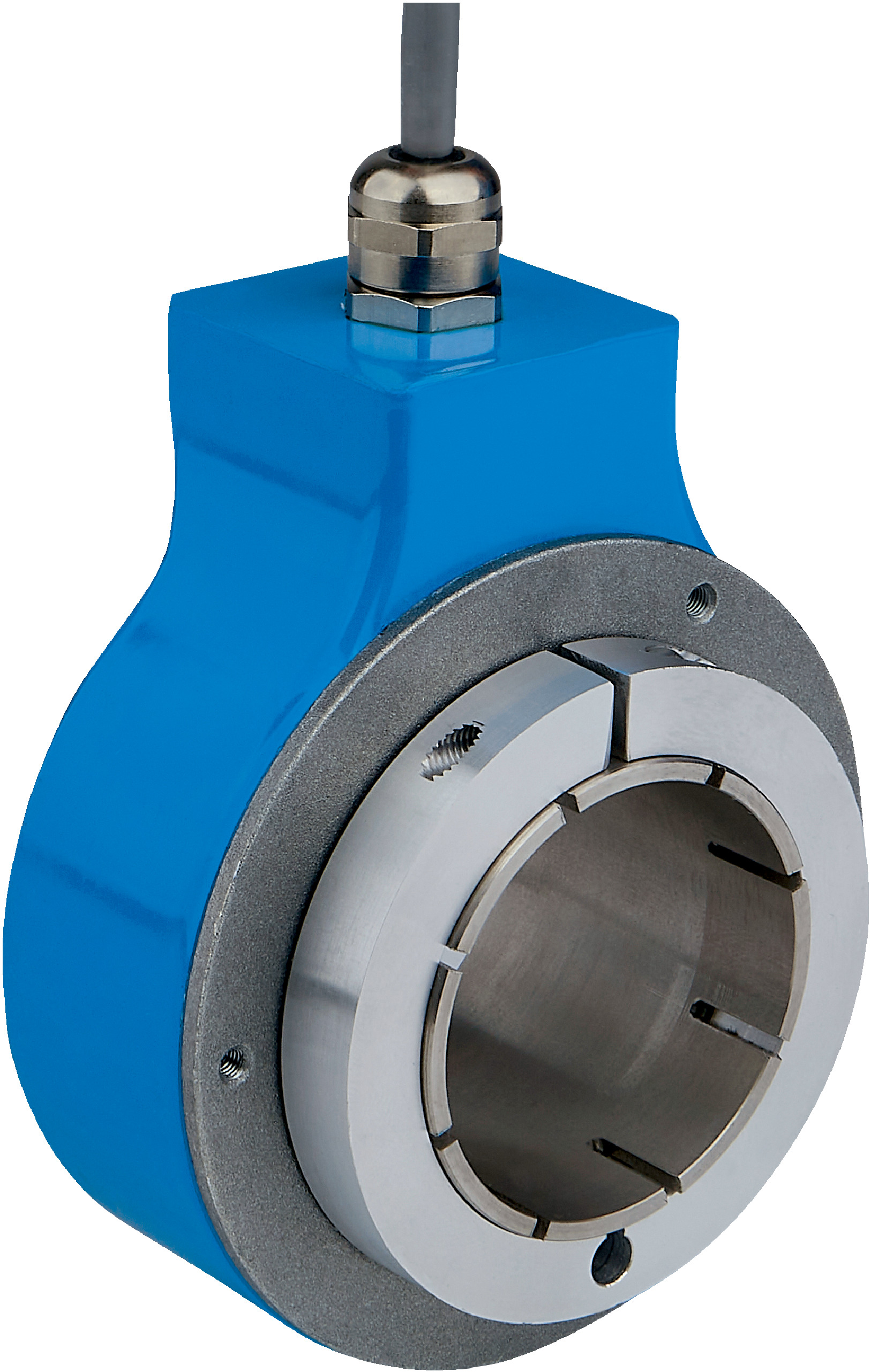

Incremental Rotary Encoder DGS80B-TYHK04096 | 4096 Pulses/Rev | IP65 Rated | Through Hollow Shaft Design | by SICK
The DGS80B-TYHK04096 incremental rotary encoder delivers high precision with 4,096 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust IP65 rated housing ensures protection against dust and water, while the through hollow shaft design allows for easy integration into various systems. With a fast initialization time of under 50 ms and a wide operating temperature range from -25°C to +85°C, this encoder is built for reliability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 4,096
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 5 to 30 V
- Mechanical design: Through hollow shaft
- Shaft diameter: 42 mm
- Flange type: 1-sided stator coupling
- Shaft material: Aluminum
- Housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm (+20 °C)
- Operating torque: 5 Ncm (+20 °C)
- Permissible shaft loading: 160 N radial, 100 N axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 877 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -25 °C to +85 °C
- Storage temperature range: -25 °C to +85 °C
- Shock resistance: 250 g, 6 ms
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz
- Dimensions (H x L x W): 80mm x 40mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Through hollow shaft mechanical design with 42 mm shaft diameter
- Robust housing and flange made of ZAMAC die cast
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -25°C to +85°C
- Low startup torque of 6 Ncm and operating torque of 5 Ncm
- High bearing lifetime of 10^9 revolutions
- Fast initialization time under 50 ms
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool feedback and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.85 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TYHK04096 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
