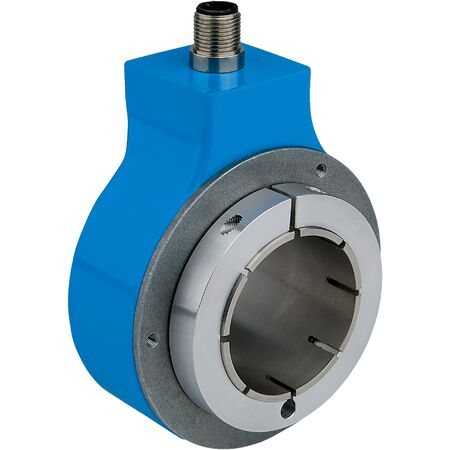

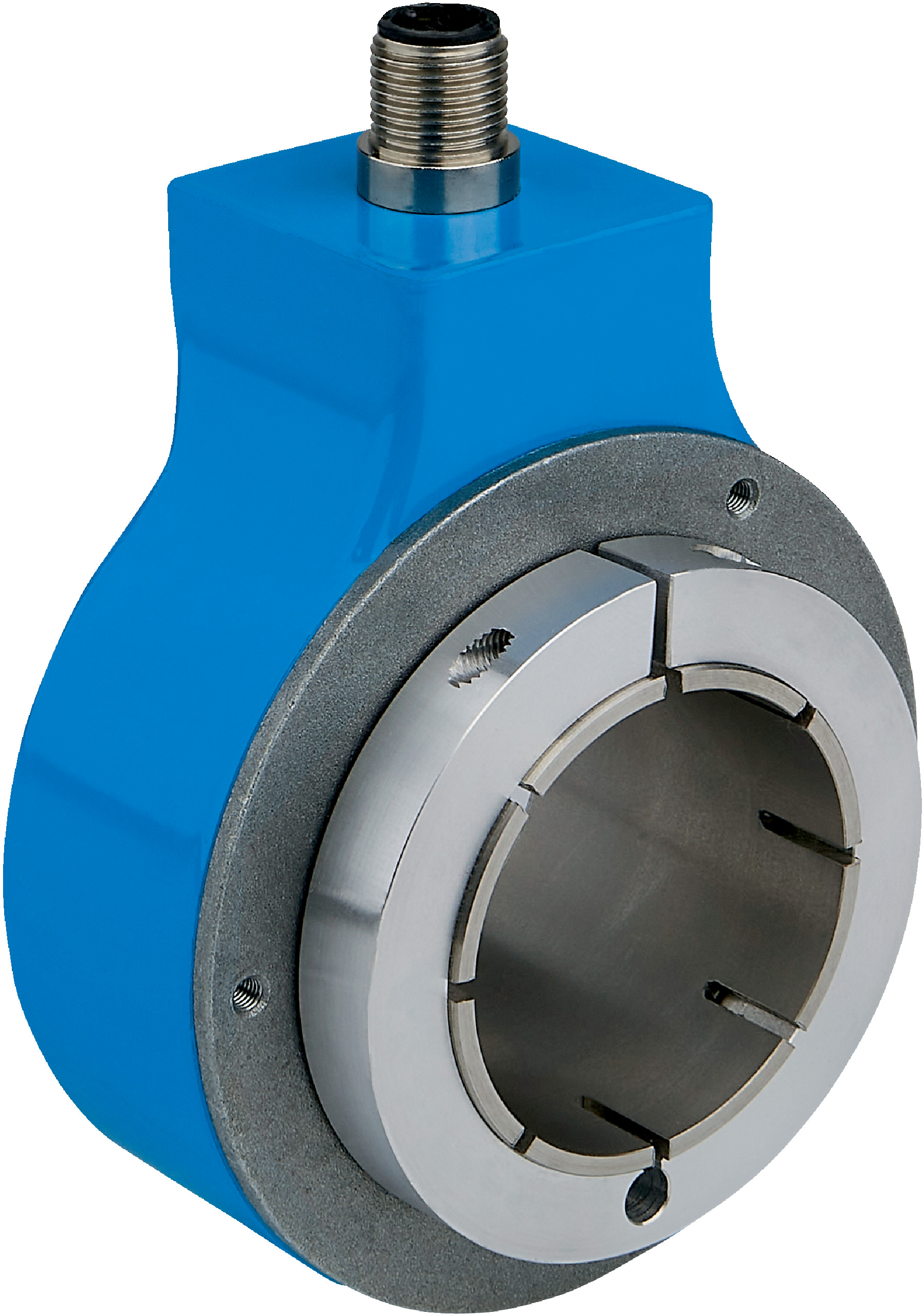

Incremental Rotary Encoder DGS80B-TYLC04096 | 4096 Pulses/Rev | IP65 Rated | Robust Hollow Shaft Design | by SICK
The DGS80B-TYLC04096 incremental rotary encoder delivers high-resolution feedback with 4,096 pulses per revolution, making it ideal for industrial automation and robotics. Its robust through hollow shaft design ensures durability, while the IP65 rated enclosure provides excellent dust and water resistance. With a fast initialization time of less than 50 ms and low power consumption, this encoder is perfect for precise position and speed measurement in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 4,096
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 42 mm
- Flange type: 1-sided stator coupling (accessory available)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm at +20 °C
- Operating torque: 5 Ncm at +20 °C
- Permissible shaft loading: 160 N radial, 100 N axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 877 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25 °C to +85 °C
- Storage temperature range: -25 °C to +85 °C without package
- Shock resistance: 250 g, 6 ms (EN 60068-2-27)
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.65 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Robust through hollow shaft mechanical design
- IP65 rated enclosure for dust and water resistance
- Short-circuit and reverse polarity protection
- Low power consumption of ≤ 0.85 W
- Fast initialization time of less than 50 ms
- Operating temperature range from -25 °C to +85 °C
- High mechanical durability with bearing lifetime of 10^9 revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and machinery requiring high-resolution feedback
- Conveyor systems and motor control applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TYLC04096 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
