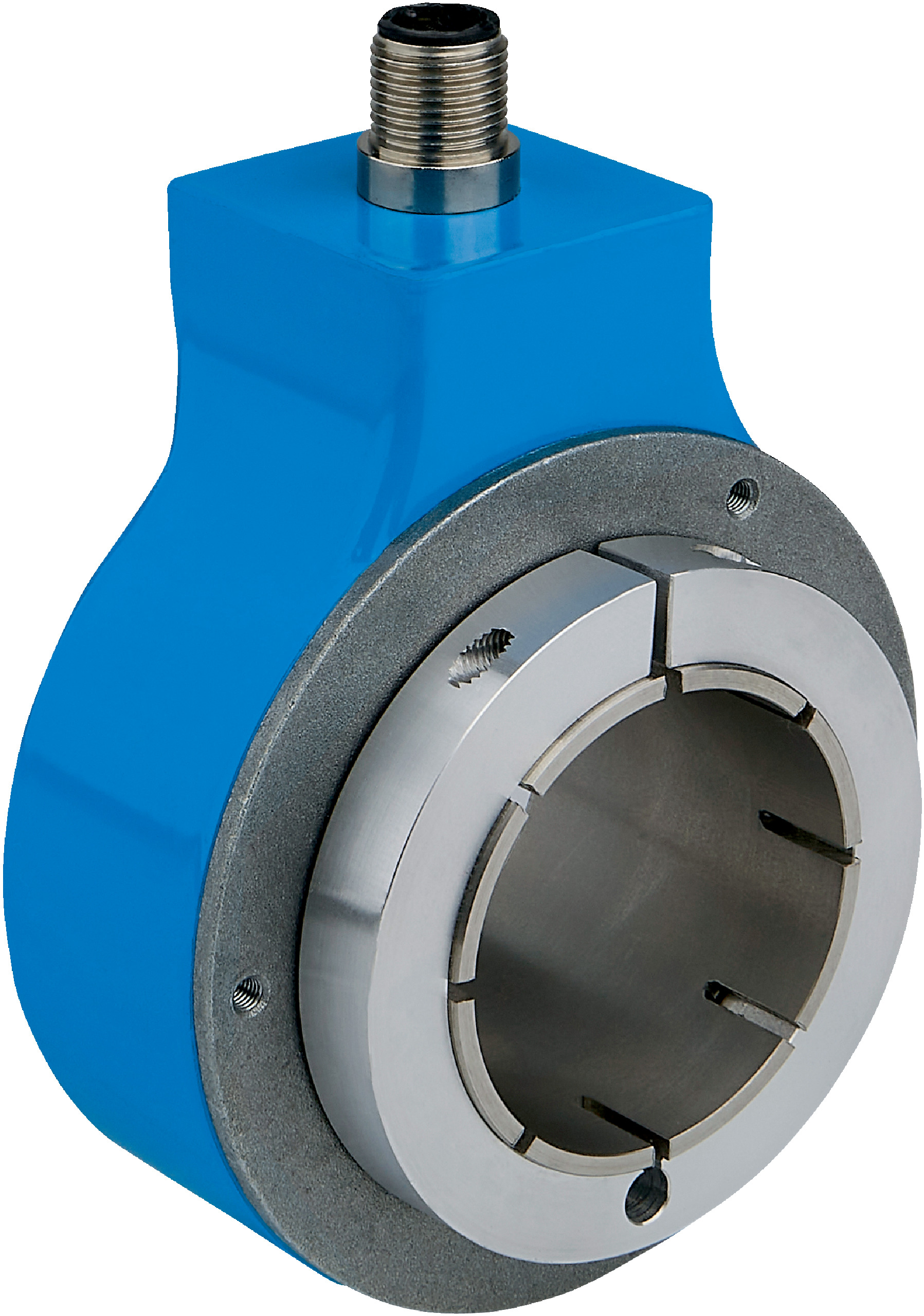

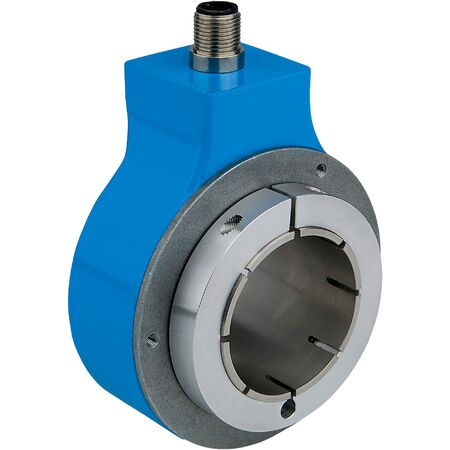

Incremental Rotary Encoder DGS80B-TYHC04096 | 4096 Pulses/Rev | IP65 Enclosure | by SICK
The DGS80B-TYHC04096 incremental rotary encoder delivers high precision with 4,096 pulses per revolution, making it ideal for industrial automation and robotics applications. Its robust design features a through hollow shaft with a 42 mm diameter and an IP65 enclosure rating, ensuring durability in harsh environments. With fast initialization under 50 ms and low power consumption, this encoder is perfect for machine tool positioning and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 4,096
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 42 mm
- Flange type: 1-sided stator coupling (accessory)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm at +20°C
- Operating torque: 5 Ncm at +20°C
- Permissible shaft loading: 160 N radial, 100 N axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 877 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25°C to +85°C
- Storage temperature range: -25°C to +85°C (without package)
- Shock resistance: 250 g, 6 ms
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz
- Dimensions (H x L x W): 80mm x 80mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Through hollow shaft mechanical design with 42 mm shaft diameter
- Robust housing with ZAMAC die cast materials and IP65 enclosure rating
- Short-circuit and reverse polarity protection
- Operating temperature range from -25°C to +85°C
- Low power consumption of ≤ 0.85 W
- Fast initialization time of less than 50 ms
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TYHC04096 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
