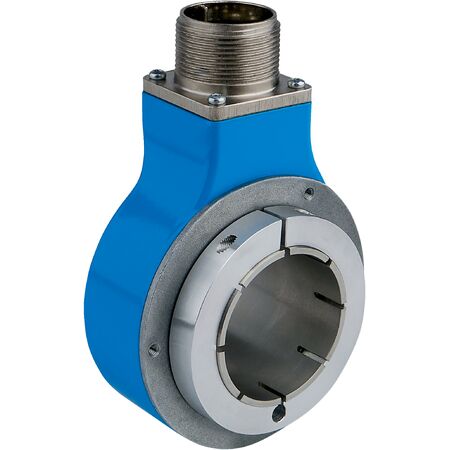

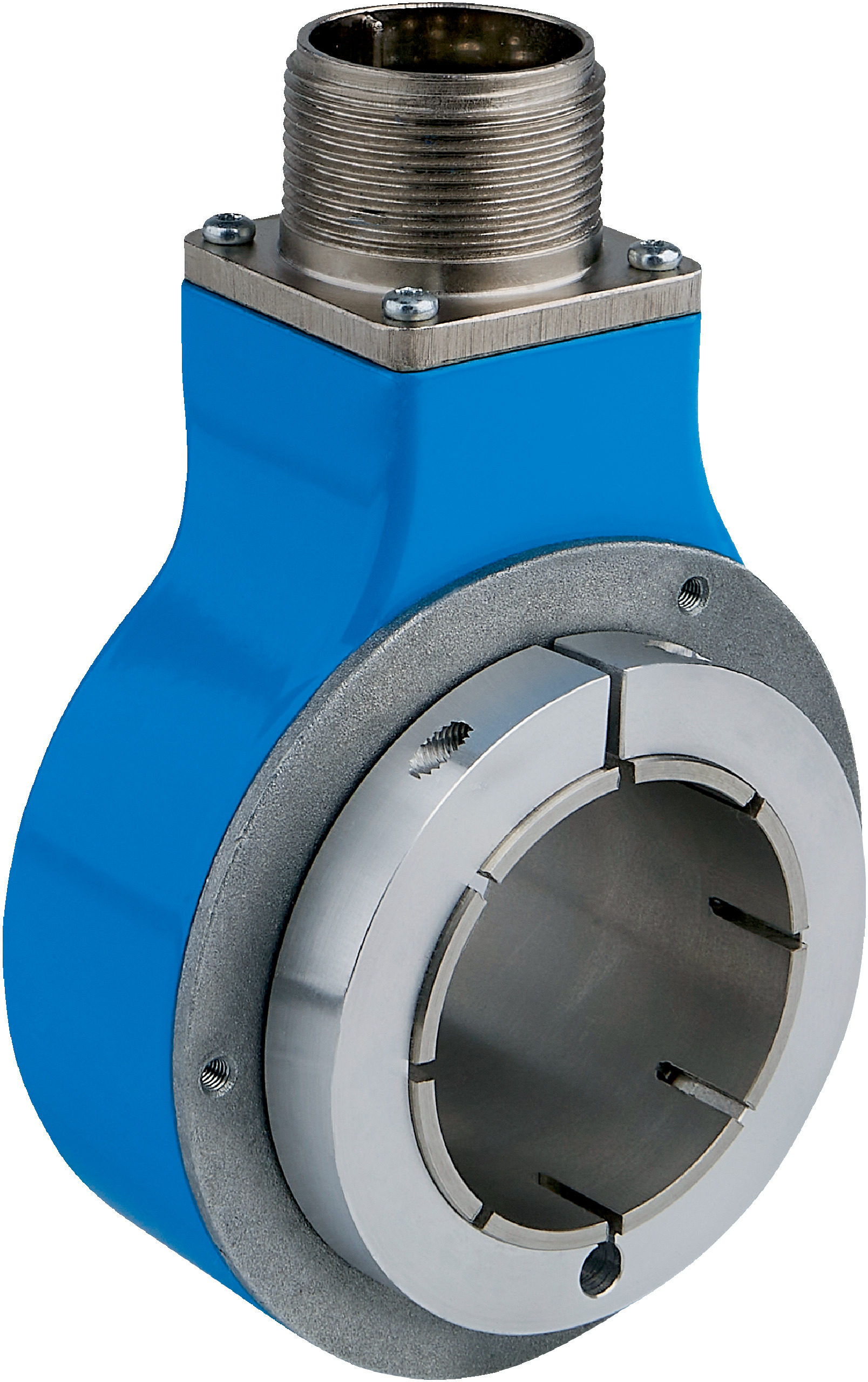

Incremental Rotary Encoder DGS80B-TYL405000 | 5000 Pulses/Rev | IP65 Protection | by SICK
The DGS80B-TYL405000 incremental rotary encoder delivers high precision with 5000 pulses per revolution, making it ideal for industrial automation and robotics. Its robust IP65-rated housing ensures durability in harsh environments, while features like reverse polarity protection and a fast initialization time under 50 ms enhance reliability for critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, MS, 10-pin, radial
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 42 mm
- Flange type: 1-sided stator coupling (slot available as accessory)
- Weight: 650 g
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm at +20 °C
- Operating torque: 5 Ncm at +20 °C
- Permissible shaft loading: 160 N radial, 100 N axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 877 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25 °C to +85 °C
- Storage temperature range: -25 °C to +85 °C without package
- Shock resistance: 250 g, 6 ms (EN 60068-2-27)
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 80mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 5,000 pulses per revolution
- Through hollow shaft mechanical design with 42 mm shaft diameter
- Robust housing with IP65 protection rating
- Reverse polarity and short-circuit protection
- Operating temperature range from -25 °C to +85 °C
- Low power consumption of ≤ 0.85 W
- Fast initialization time under 50 ms
- 6-channel incremental HTL / Push pull communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring high-resolution feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TYL405000 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring high precision and reliability.
