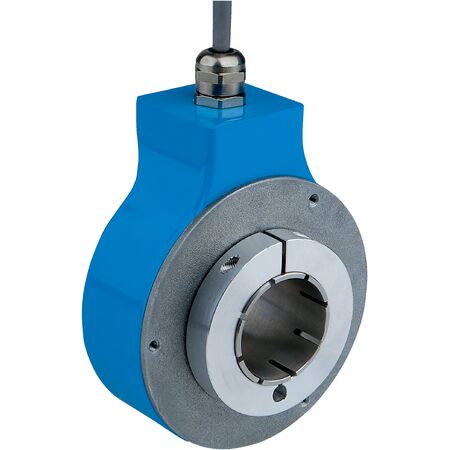

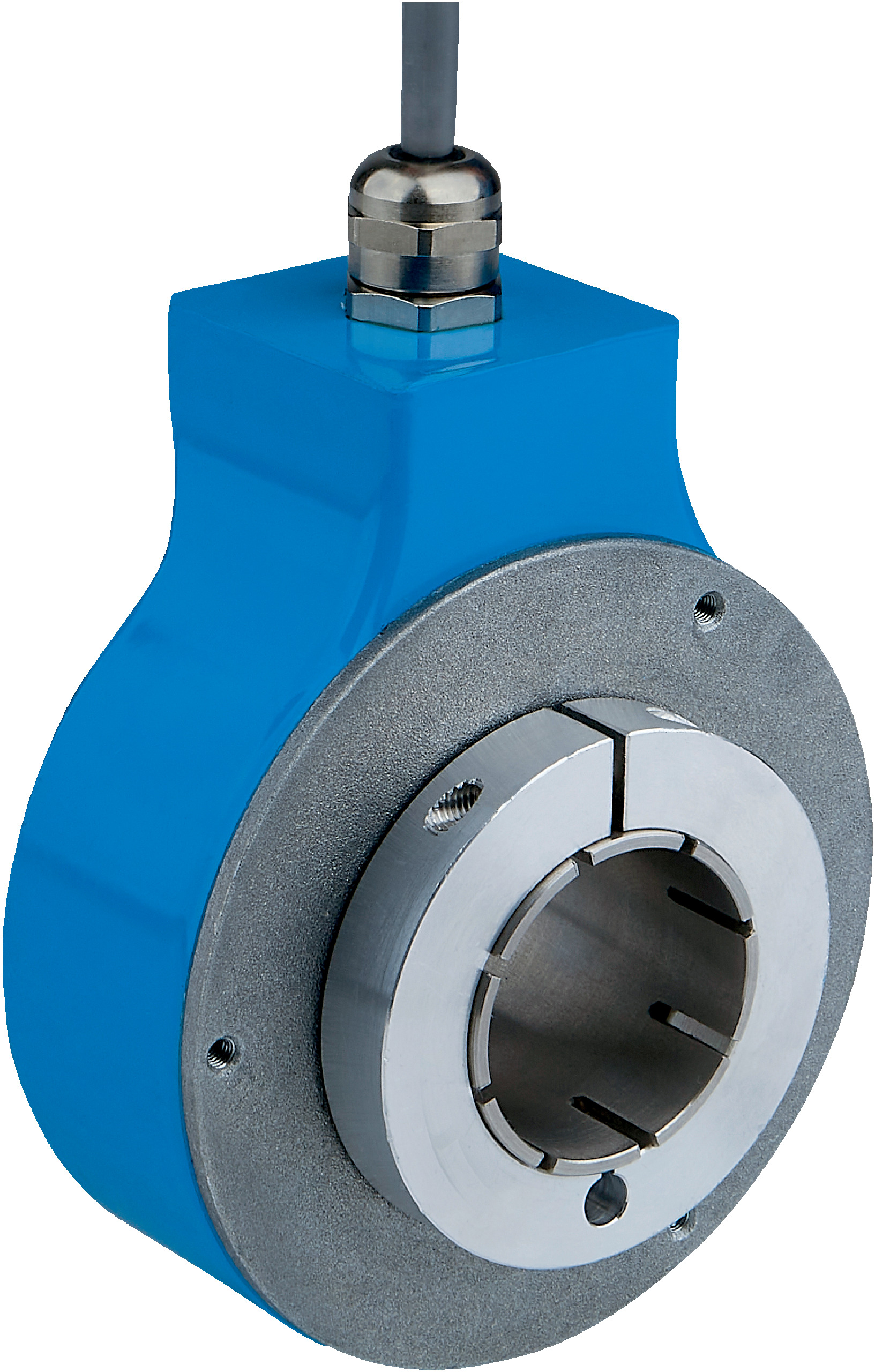

Incremental Rotary Encoder DGS80B-TSLK08192 | 8192 Pulses/Rev | IP65 Rated | by SICK
The DGS80B-TSLK08192 incremental rotary encoder delivers high precision with 8,192 pulses per revolution, making it ideal for industrial automation and robotics. Featuring a robust design with an IP65 rating for dust and water resistance, this encoder ensures reliable performance in challenging environments. With a fast initialization time under 50 ms and a wide operating temperature range from -25°C to +85°C, it’s perfect for motion control systems and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 8,192
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 5 to 30 V
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (accessory available)
- Weight: 650 g
- Shaft material: Aluminum
- Housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm at +20°C
- Operating torque: 5 Ncm at +20°C
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -25°C to +85°C
- Storage temperature range: -25°C to +85°C
- Shock resistance: 250 g, 6 ms
- Vibration resistance: 10 g, 5 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 80mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 8,192 pulses per revolution
- Incremental HTL / Push pull communication interface
- 6-channel signal output with fast initialization time under 50 ms
- Robust mechanical design with through hollow shaft and aluminum shaft
- IP65 rated enclosure for dust and water resistance
- Reverse polarity and short-circuit protection on outputs
- Wide operating temperature range from -25°C to +85°C
- High shock and vibration resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.85 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TSLK08192 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
