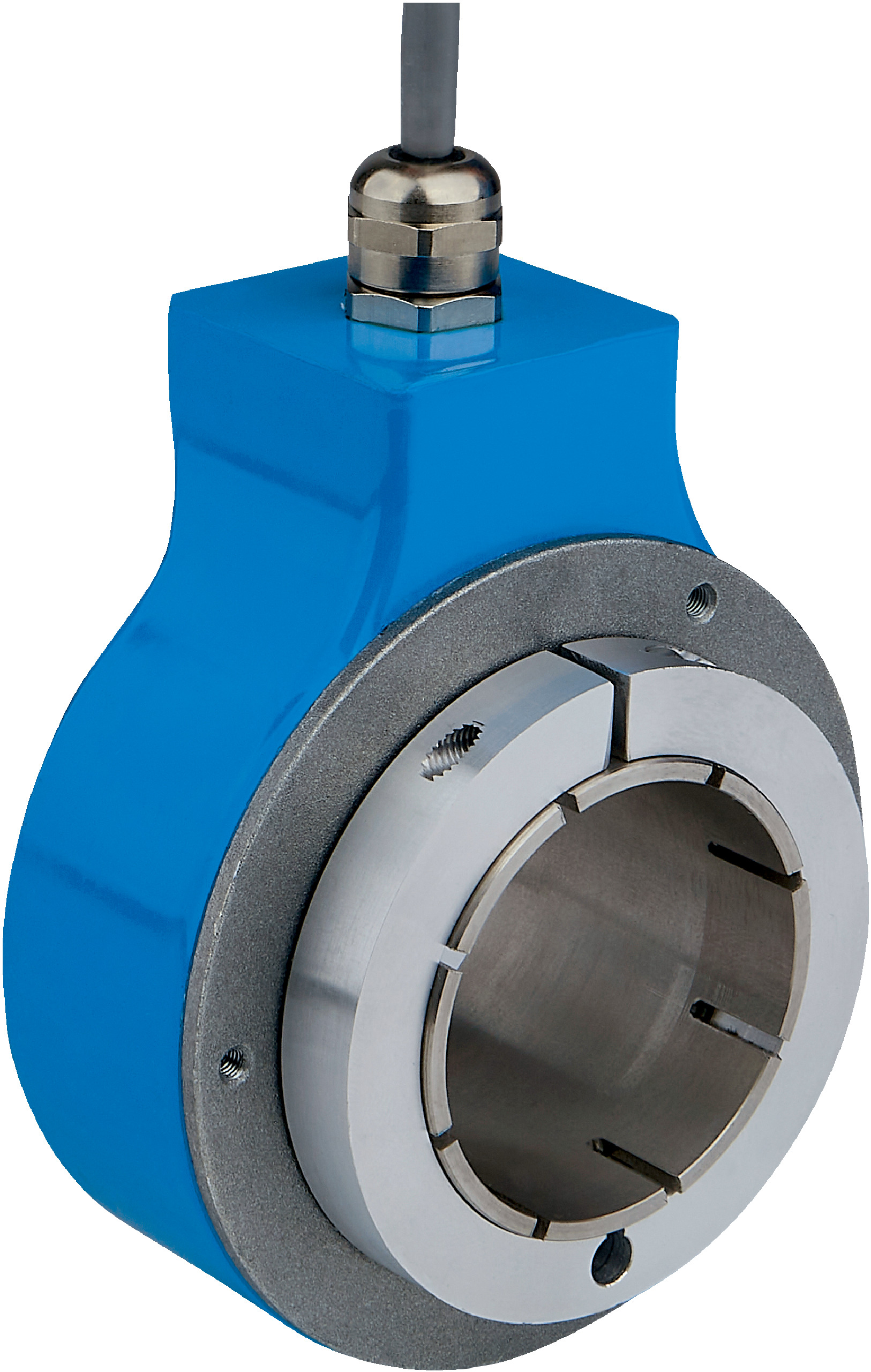

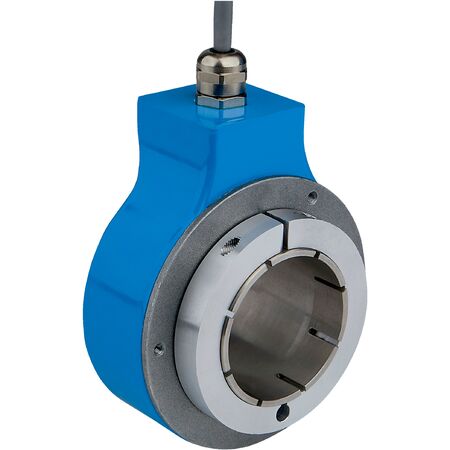

Incremental Rotary Encoder DGS80B | 8192 Pulses/Rev | IP65 Rated | by SICK
The DGS80B incremental rotary encoder delivers high precision with 8,192 pulses per revolution, making it ideal for industrial automation and robotics applications. Featuring a robust mechanical design with an aluminum shaft and IP65 rated enclosure, it ensures reliable performance in harsh environments. With a wide operating temperature range from -25°C to +85°C, this encoder is built for durability and efficiency in demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 8,192
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 5 to 30 V
- Mechanical design: Through hollow shaft
- Shaft diameter: 42 mm
- Flange type: 1-sided stator coupling
- Shaft material: Aluminum
- Housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm (+20 °C)
- Operating torque: 5 Ncm (+20 °C)
- Permissible shaft loading: 160 N radial, 100 N axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 877 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -25 °C to +85 °C
- Storage temperature range: -25 °C to +85 °C
- Resistance to shocks: 250 g, 6 ms
- Resistance to vibration: 10 g, 5 Hz to 2,000 Hz
- Dimensions (H x L x W): 80mm x 50mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 8,192 pulses per revolution
- Incremental communication interface with HTL / Push pull signals
- 6-channel output with output frequency up to 300 kHz
- Robust mechanical design with through hollow shaft and aluminum shaft
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -25°C to +85°C
- Reverse polarity and short-circuit protection
- Low power consumption of ≤ 0.85 W
- High mechanical durability with bearing lifetime of 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TYLK08192 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
