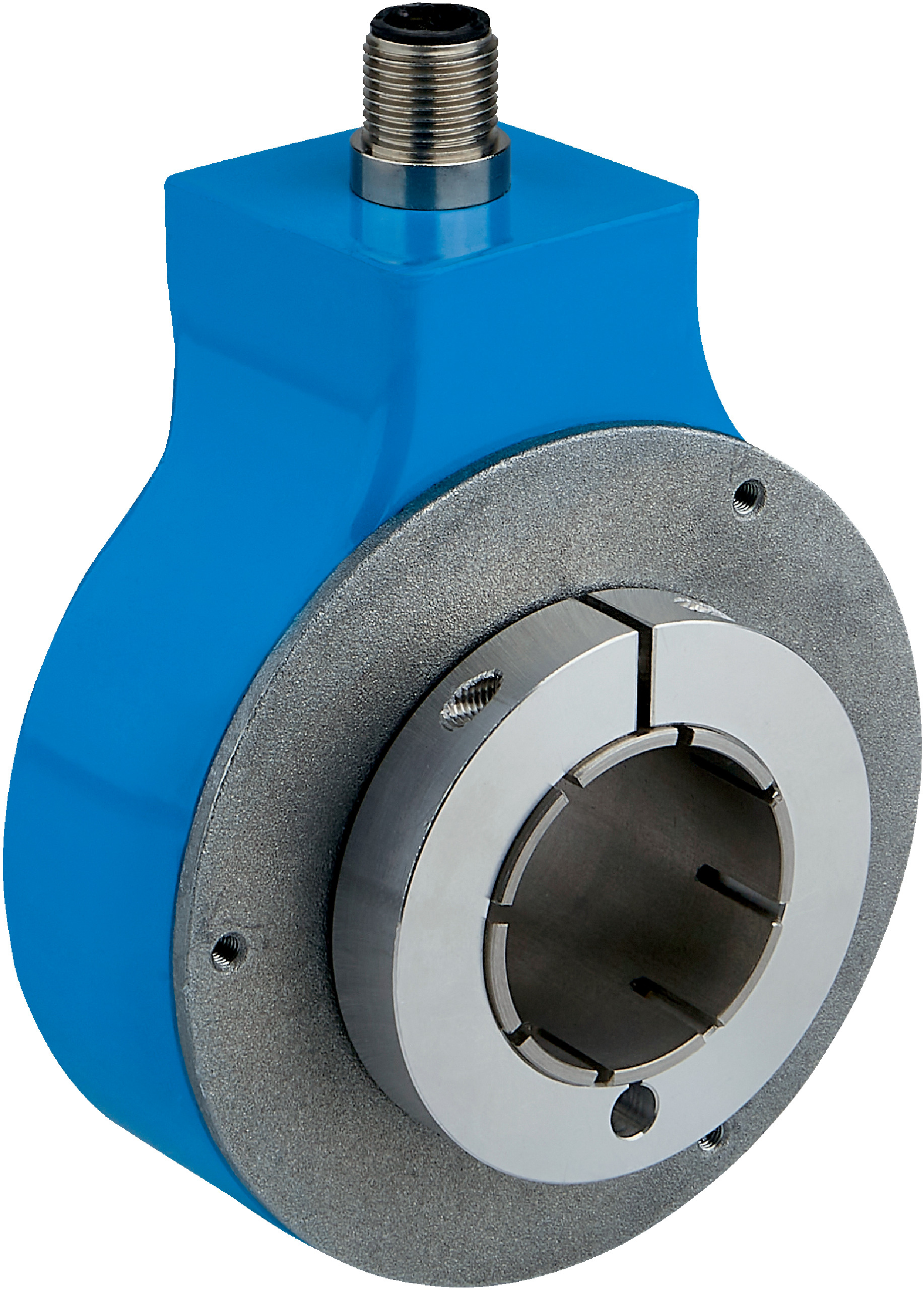

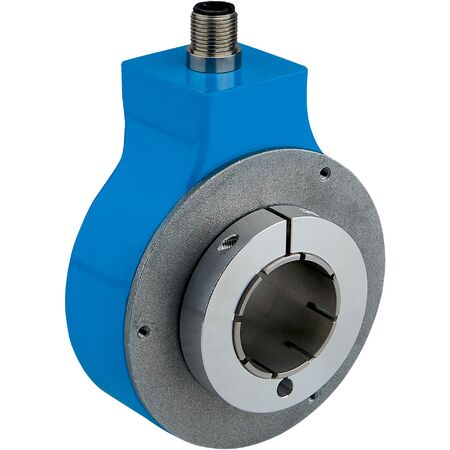

Incremental Rotary Encoder DGS80B-TSHC04096 | 4096 Pulses/Rev | IP65 Enclosure | 30mm Hollow Shaft | by SICK
The DGS80B-TSHC04096 incremental rotary encoder delivers high precision with 4096 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust IP65-rated housing ensures protection against dust and water, while the through hollow shaft design allows for easy integration into various systems. With a fast initialization time of less than 50 ms and low power consumption, this encoder is perfect for reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 4,096
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (accessory available)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm at +20°C
- Operating torque: 5 Ncm at +20°C
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25°C to +85°C
- Storage temperature range: -25°C to +85°C (without package)
- Shock resistance: 250 g, 6 ms (EN 60068-2-27)
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.65 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Through hollow shaft mechanical design with 30 mm shaft diameter
- Robust housing with ZAMAC die cast materials
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -25°C to +85°C
- Low power consumption of ≤ 0.85 W
- Fast initialization time of less than 50 ms
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool positioning and feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TSHC04096 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
