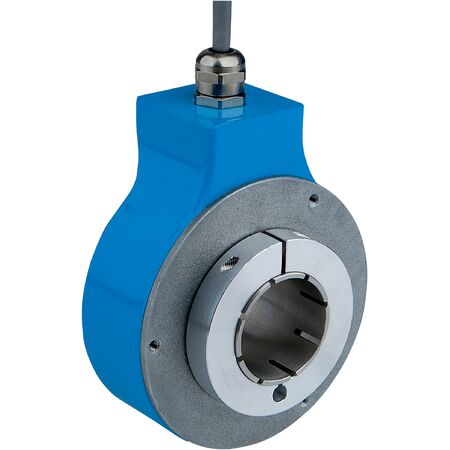

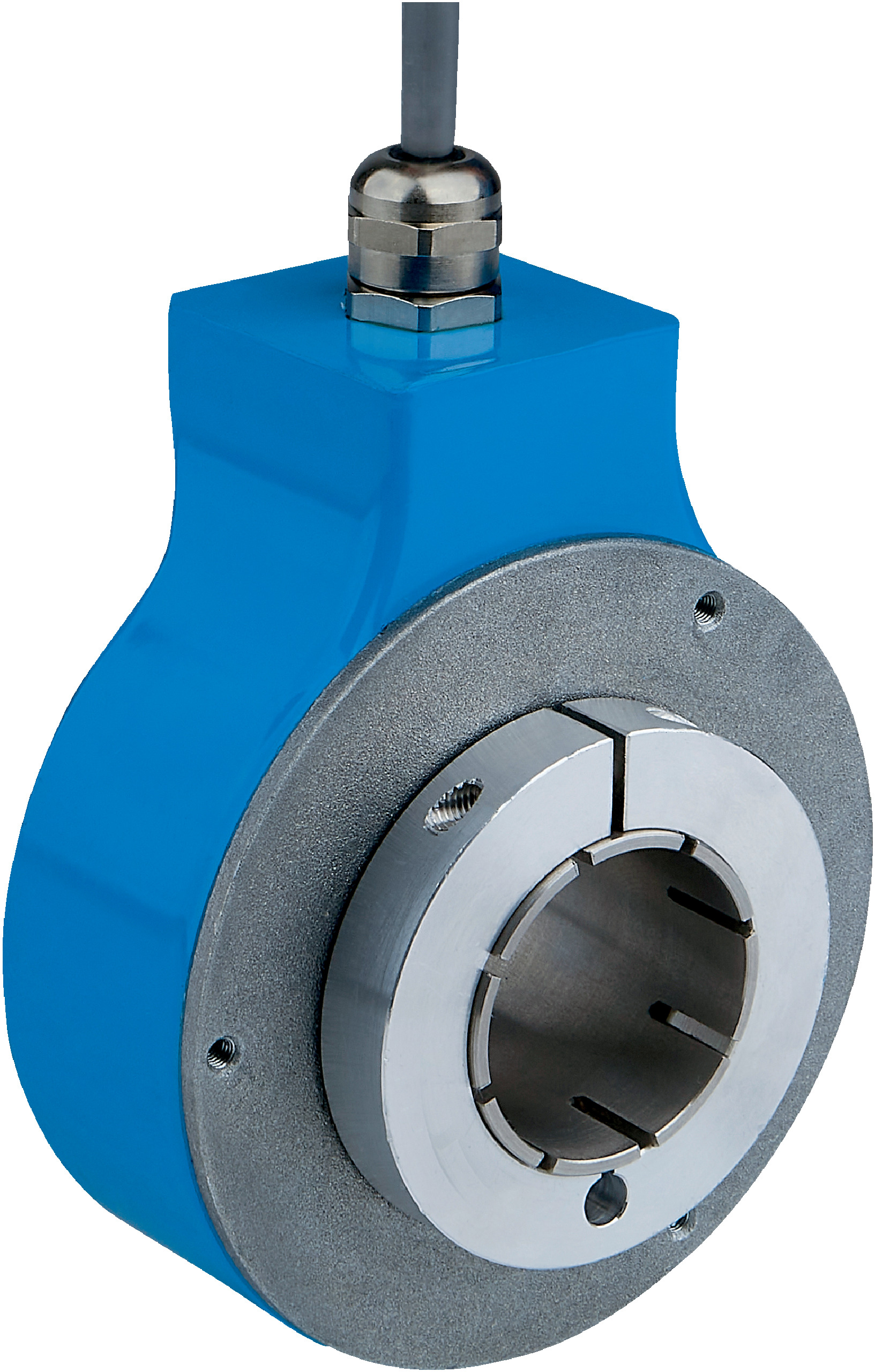

Incremental Rotary Encoder DGS80B-TSHK04096 | 4096 Pulses/Rev | IP65 Rated | Through Hollow Shaft Design | by SICK
The DGS80B-TSHK04096 incremental rotary encoder delivers high precision with 4,096 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust IP65 rated enclosure ensures protection against dust and water, while the through hollow shaft design allows for easy integration into various systems. With a wide operating temperature range of -25 °C to +85 °C, this encoder is built for reliability and longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 4,096
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6-channel
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (slot accessory available)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Cable material: PUR
- Shaft sealing ring material: FKM70
- Cable gland material: Nickel-plated brass
- Start up torque: 6 Ncm at +20 °C
- Operating torque: 5 Ncm at +20 °C
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25 °C to +85 °C
- Storage temperature range: -25 °C to +85 °C (without package)
- Shock resistance: 250 g, 6 ms (EN 60068-2-27)
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 40mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Through hollow shaft mechanical design with 30 mm shaft diameter
- Robust housing and flange made of ZAMAC die cast
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -25 °C to +85 °C
- Low startup torque of 6 Ncm and operating torque of 5 Ncm
- Cable connection with 8-wire radial 1.5 m PUR cable
- High reliability with MTTFD of 518 years according to EN ISO 13849-1
- EMC compliant with EN 61000-6-2 and EN 61000-6-3 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper connection and compliance with safety regulations.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems
- Machine tool feedback
- Position and speed measurement in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 0.85 W supports energy efficiency
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TSHK04096 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
