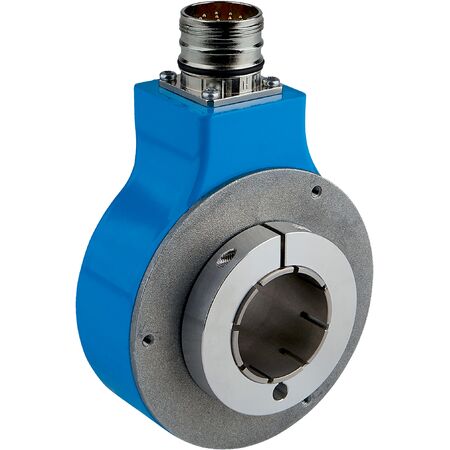

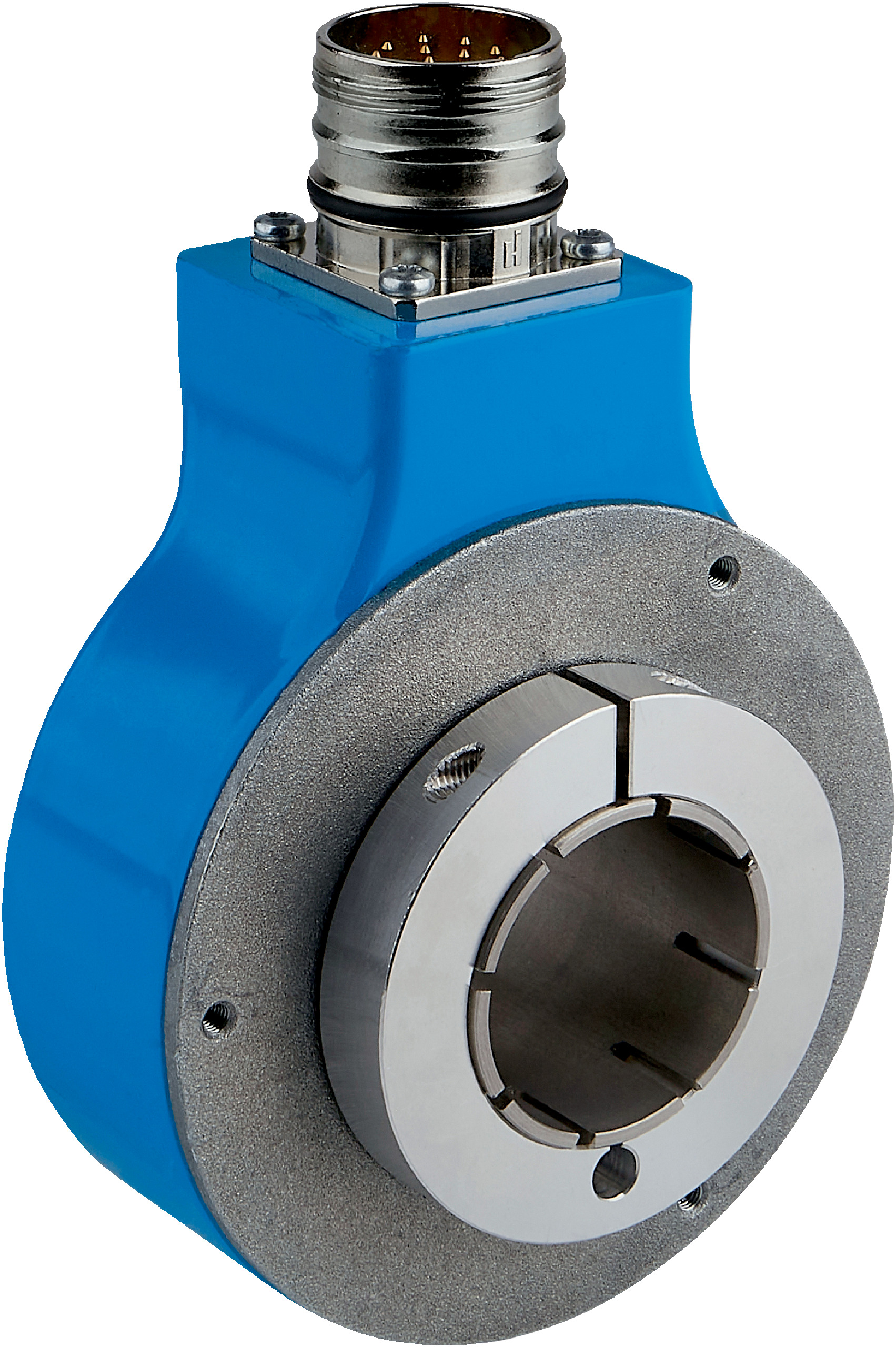

Incremental Rotary Encoder DGS80B-TSLA01024 | 1024 Pulses/Rev | IP65 Enclosure | Robust Hollow Shaft Design | by SICK
The DGS80B-TSLA01024 incremental rotary encoder delivers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and motion control applications. Its robust through hollow shaft design ensures durability, while the IP65 rated enclosure provides excellent protection against dust and water. With a fast initialization time of less than 50 ms and low power consumption, this encoder is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (accessory available)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm at +20 °C
- Operating torque: 5 Ncm at +20 °C
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: –25 °C to +85 °C
- Storage temperature range: –25 °C to +85 °C (without package)
- Shock resistance: 250 g, 6 ms
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.65 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust through hollow shaft mechanical design
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Low power consumption of ≤ 0.85 W
- Operating temperature range from –25 °C to +85 °C
- High mechanical durability with bearing lifetime of 10^9 revolutions
- Fast initialization time of less than 50 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and material handling
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TSLA01024 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
