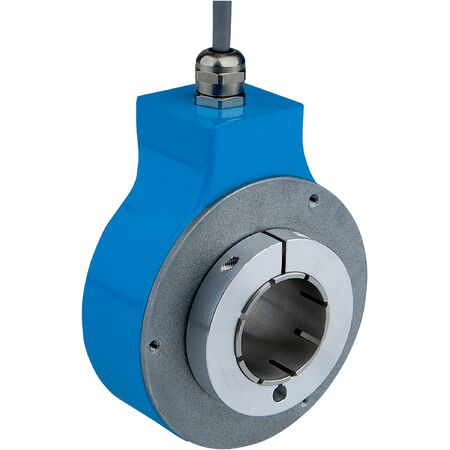

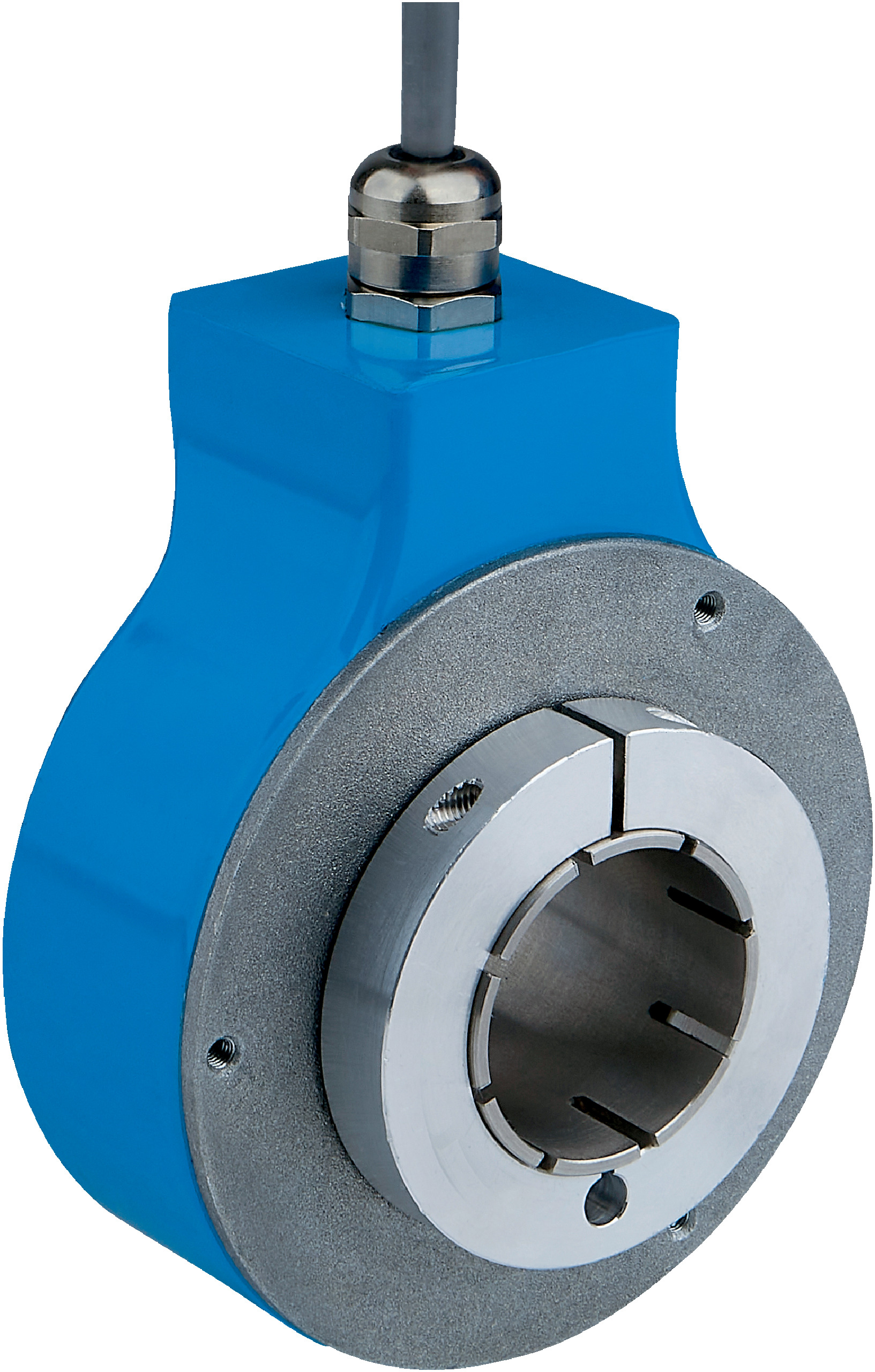

Incremental Rotary Encoder DGS80B-TSLK02500 | 2500 PPR | IP65 Rated | Robust Design | by SICK
The DGS80B-TSLK02500 incremental rotary encoder delivers high precision with 2500 pulses per revolution, making it ideal for industrial automation and robotics. Its robust design features a through hollow shaft and an IP65 rated enclosure, ensuring reliable performance in harsh environments. Perfect for applications requiring accurate position and speed measurement, this encoder is built to withstand shocks and vibrations while maintaining low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,500
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental HTL / Push-pull
- Number of signal channels: 6
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 5 to 30 V
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (accessory available)
- Weight: 650 g
- Shaft material: Aluminum
- Housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm (+20 °C)
- Operating torque: 5 Ncm (+20 °C)
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: –25 °C to +85 °C
- Storage temperature range: –25 °C to +85 °C
- Shock resistance: 250 g, 6 ms
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz
- Dimensions (H x L x W): 80mm x 80mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 2,500 pulses per revolution
- Incremental HTL / Push-pull communication interface with 6 signal channels
- Robust mechanical design with through hollow shaft and aluminum shaft
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Low power consumption of ≤ 0.85 W
- Operating temperature range from –25 °C to +85 °C
- High resistance to shocks (250 g) and vibration (10 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring high-resolution feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TSLK02500 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
