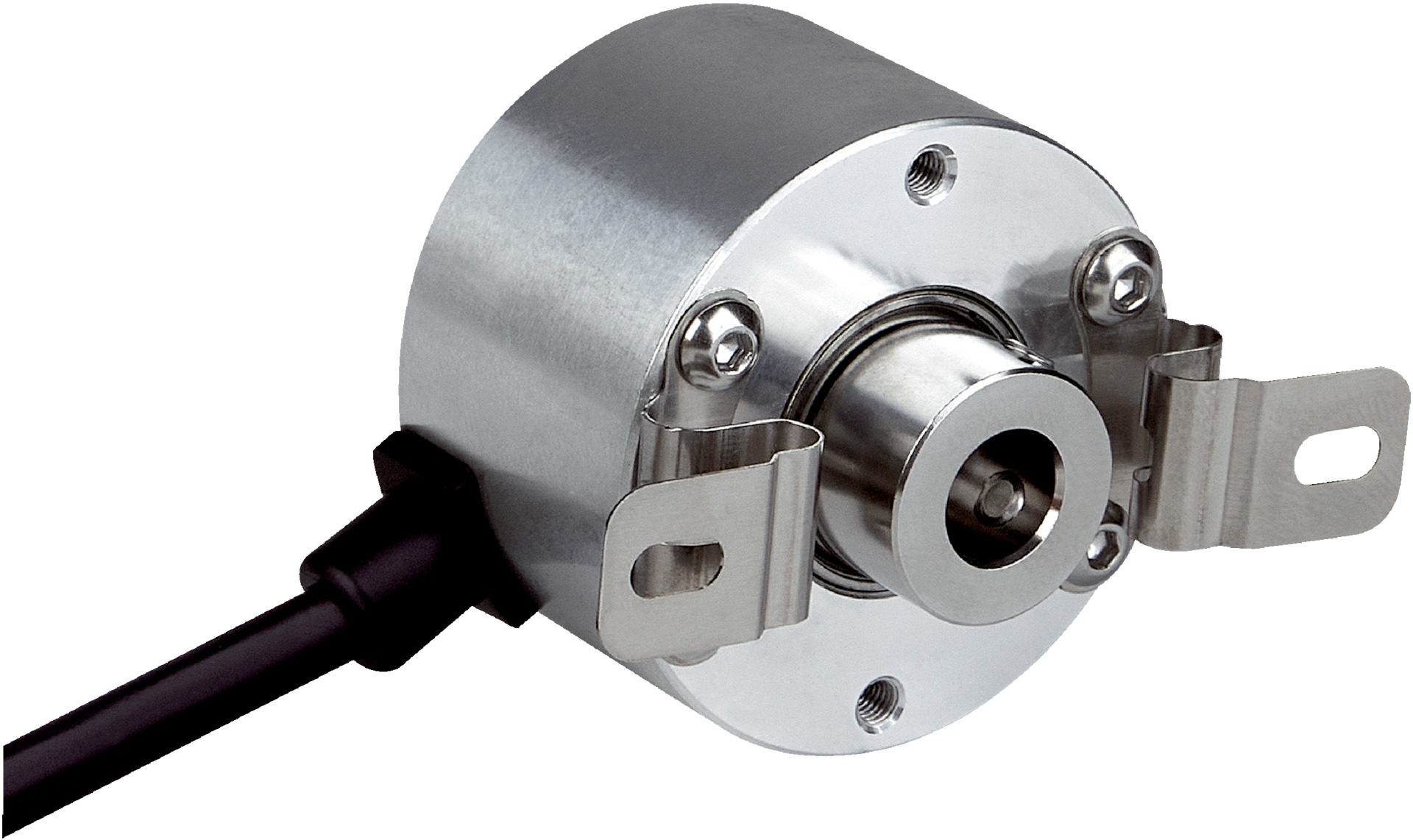

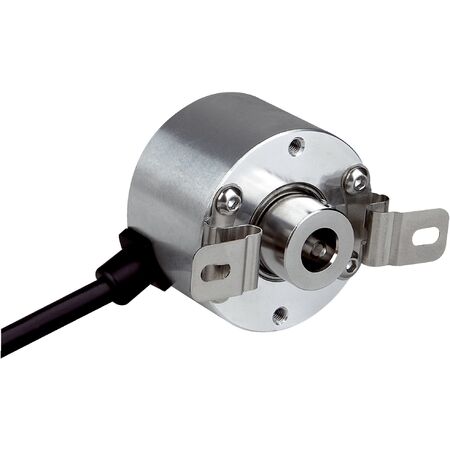

Incremental Rotary Encoder DLS40E-BERV00600 | 600 Pulses/Rev | Blind Hollow Shaft Design | High Speed Up to 8000 min⁻¹ | by SICK
The DLS40E-BERV00600 incremental rotary encoder is engineered for precision in industrial automation, featuring 600 pulses per revolution and a robust blind hollow shaft design with a 12 mm diameter. With a high operating speed of up to 8,000 min⁻¹ and built-in reverse polarity protection, this encoder is perfect for applications in machine tools, robotics, and conveyor systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 600
- Measuring step: 90°, electric/pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental, Open Collector
- Number of signal channels: 3
- Output frequency: ≤ 150 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 2 W (without load)
- Connection type: Cable, 5-wire, radial, 2 m
- Supply voltage: 10 ... 27 V
- Reference signal: 1
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 12 mm Front clamp
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Permissible movement static: ± 0.3 mm (radial), ± 0.5 mm (axial)
- Permissible movement dynamic: ± 0.1 mm (radial), ± 0.2 mm (axial)
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: ≤ 8,000 min⁻¹
- Moment of inertia of rotor: 24.6 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –10 °C to +70 °C
- Storage temperature range: –25 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.17 kg
Key Features
- Incremental communication interface with open collector output
- 600 pulses per revolution for precise measurement
- Blind hollow shaft mechanical design with 12 mm shaft diameter
- Robust aluminum housing and flange with stainless steel shaft
- High operating speed up to 8,000 min⁻¹
- Reverse polarity and short-circuit protection
- Low power consumption of ≤ 2 W
- High resistance to shocks (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Rotational speed and position measurement
- Machine tool feedback
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DLS40E-BERV00600 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
