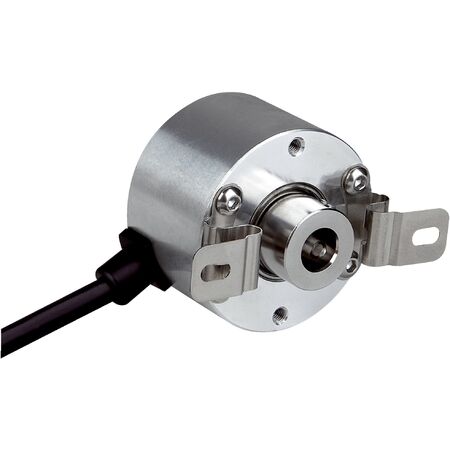

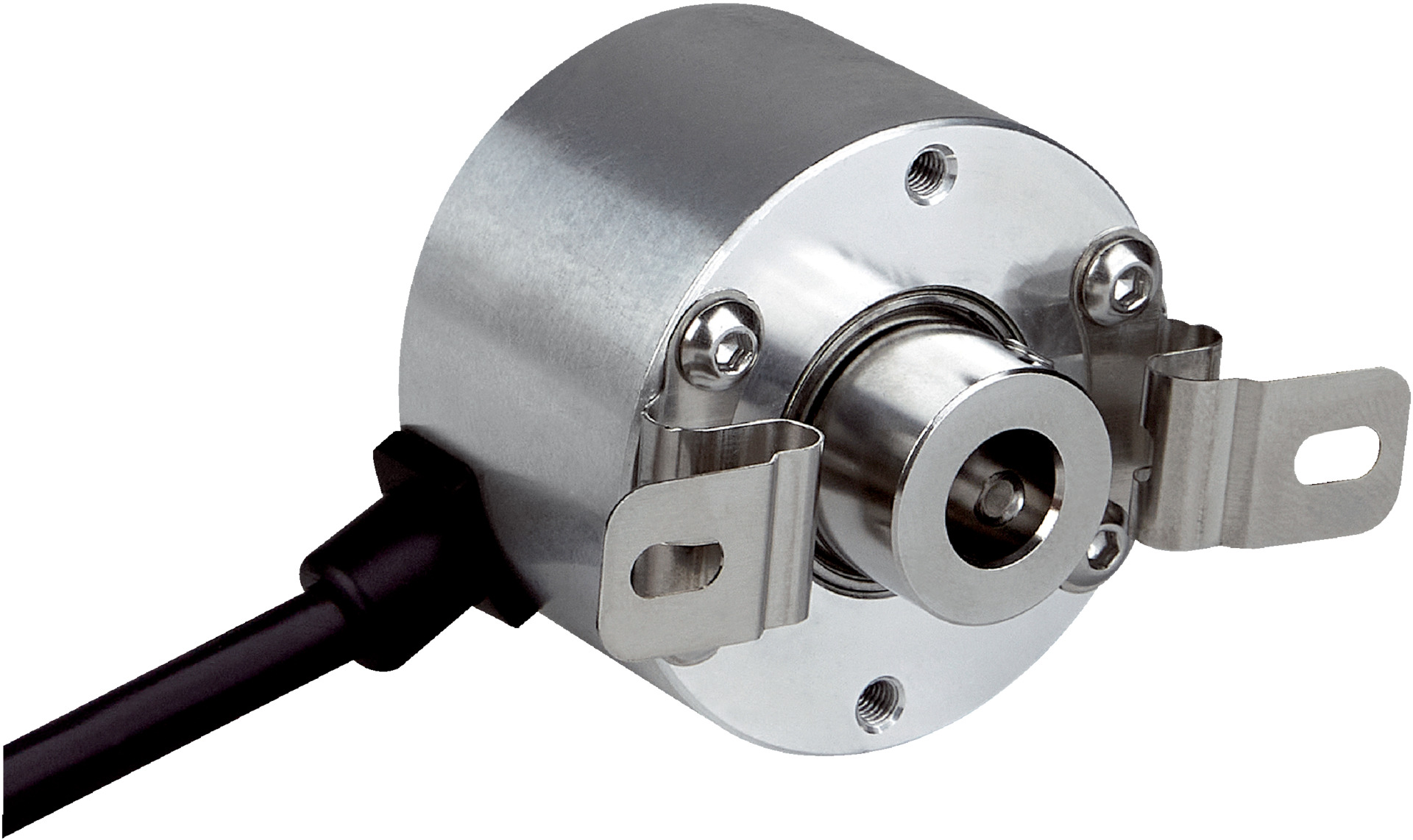

Incremental Rotary Encoder DLS40E-BARV00600 | 600 Pulses/Rev | Blind Hollow Shaft Design | High Speed Up to 8000 RPM | by SICK
The Incremental Rotary Encoder DLS40E-BARV00600 is engineered for precision in industrial automation, featuring 600 pulses per revolution and a blind hollow shaft design with a 6 mm diameter. With a robust aluminum housing and stainless steel shaft, it ensures high durability and performance, making it ideal for robotics, conveyor systems, and motor control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 600
- Measuring step: 90°, electric/pulses per revolution
- Duty cycle: ≤ 0.5 ± 10 %
- Communication interface: Incremental, Open Collector
- Number of signal channels: 3
- Output frequency: ≤ 150 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 2 W (without load)
- Connection type: Cable, 5-wire, radial, 2 m
- Supply voltage: 10 ... 27 V
- Reference signal number: 1
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 6 mm Front clamp
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Permissible movement static: ± 0.3 mm (radial), ± 0.5 mm (axial)
- Permissible movement dynamic: ± 0.1 mm (radial), ± 0.2 mm (axial)
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: ≤ 8,000 min⁻¹
- Moment of inertia of rotor: 24.6 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –10 °C to +70 °C
- Storage temperature range: –25 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.17 kg
Key Features
- Incremental communication interface with open collector output
- 600 pulses per revolution for precise measurement
- Blind hollow shaft mechanical design with 6 mm shaft diameter
- Robust aluminum housing and flange with stainless steel shaft
- High operating speed up to 8,000 min⁻¹
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 2 W without load
- High resistance to shocks (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Rotational speed and position measurement
- Robotics and machinery feedback
- Conveyor systems and motor control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DLS40E-BARV00600 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
