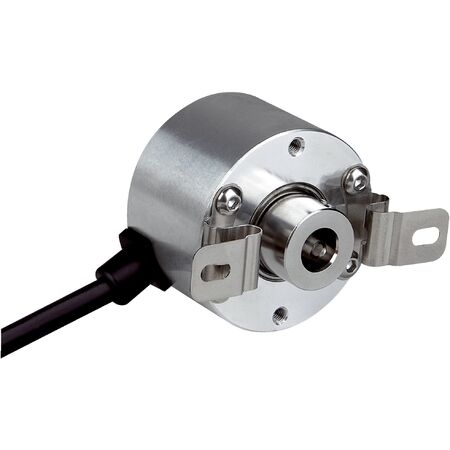

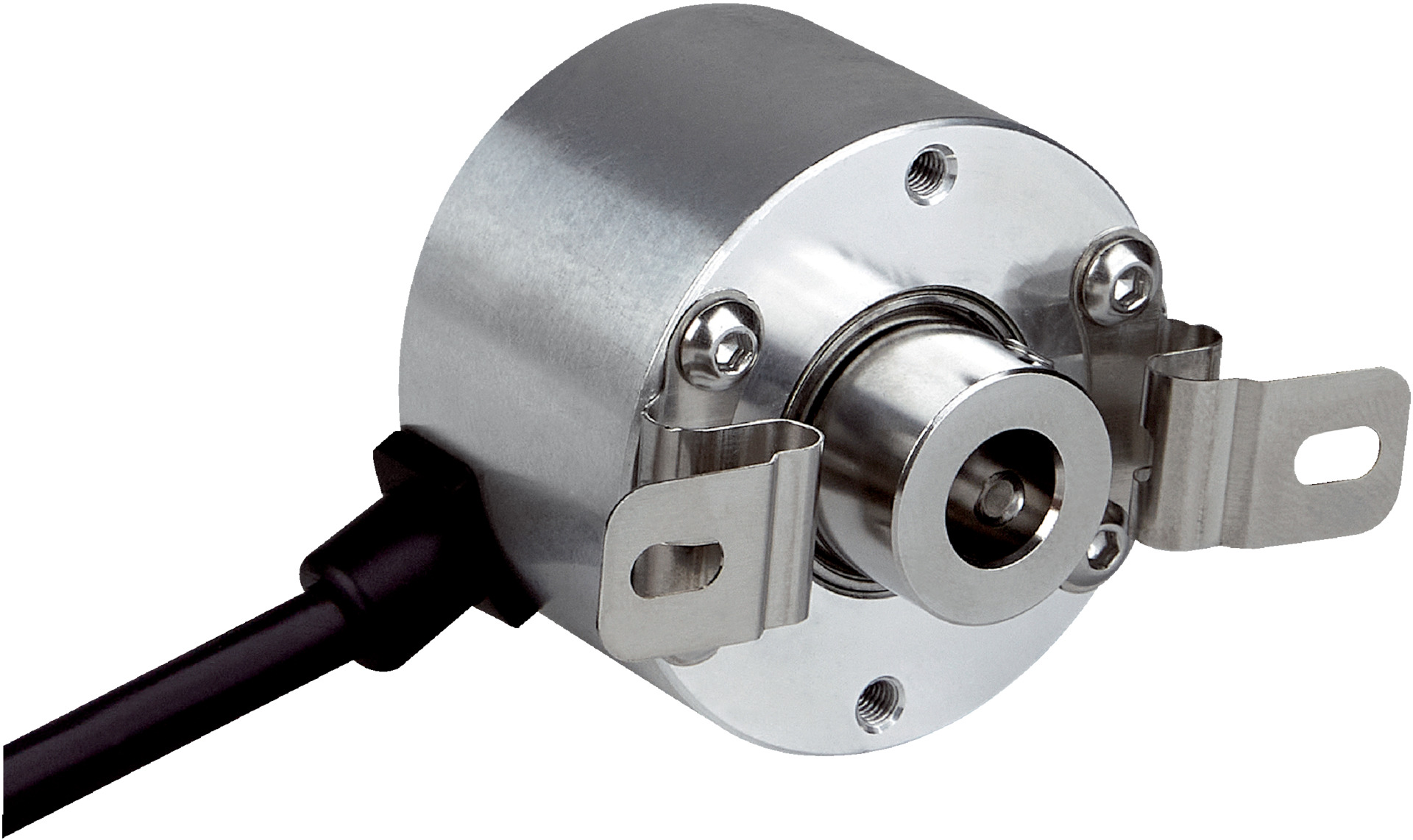

Incremental Rotary Encoder DLS40E-BBRV00600 | 600 Pulses/Rev | Blind Hollow Shaft Design | High Speed Up to 8000 RPM | by SICK
The DLS40E-BBRV00600 incremental rotary encoder delivers precise rotational position measurement with 600 pulses per revolution, making it ideal for industrial automation and robotics. Its robust blind hollow shaft design features a stainless steel shaft and aluminum housing, ensuring durability and reliability in demanding environments. With an operating speed of up to 8,000 min⁻¹ and built-in reverse polarity protection, this encoder is perfect for motion control feedback and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 600 years (EN ISO 13849-1)
- Pulses per revolution: 600
- Measuring step: 90° electric/pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental, open collector
- Number of signal channels: 3
- Output frequency: ≤ 150 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 2 W (without load)
- Connection type: Cable, 5-wire, radial, 2 m
- Supply voltage: 10 to 27 V
- Reference signal: 1
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 8 mm front clamp
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: ≤ 8,000 min⁻¹
- Moment of inertia of rotor: 24.6 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Operating temperature range: -10 °C to +70 °C
- Storage temperature range: -25 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.17 kg
Key Features
- Incremental communication interface with open collector output
- 600 pulses per revolution for high resolution
- Blind hollow shaft mechanical design with 8 mm shaft diameter
- Robust aluminum housing and flange with stainless steel shaft
- Operating speed up to 6,000 min⁻¹, max 8,000 min⁻¹
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 2 W without load
- High resistance to shocks (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise rotational position measurement
- Robotics for motion control feedback
- Conveyor systems for speed and position monitoring
- Machine tools requiring accurate pulse output
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DLS40E-BBRV00600 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
