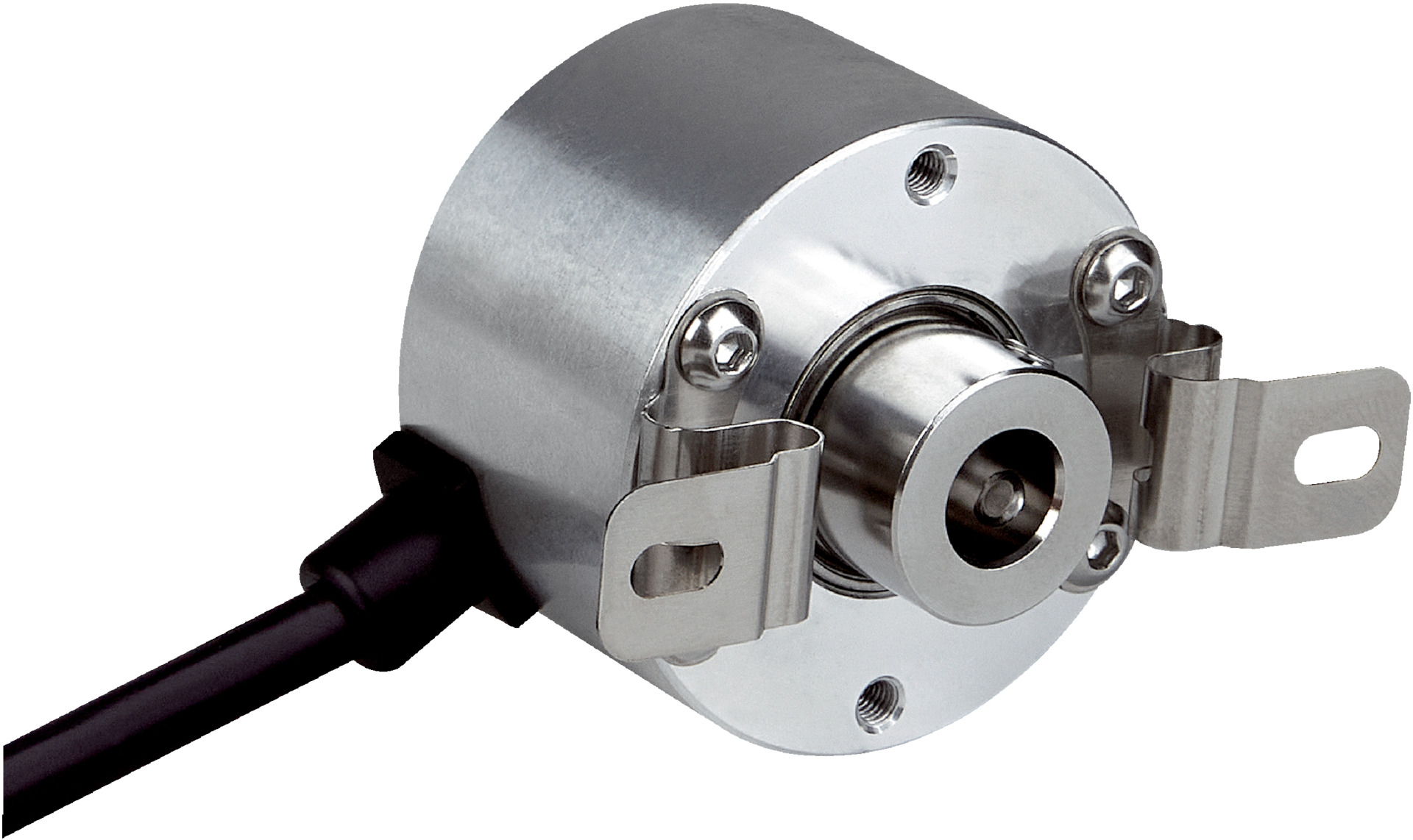

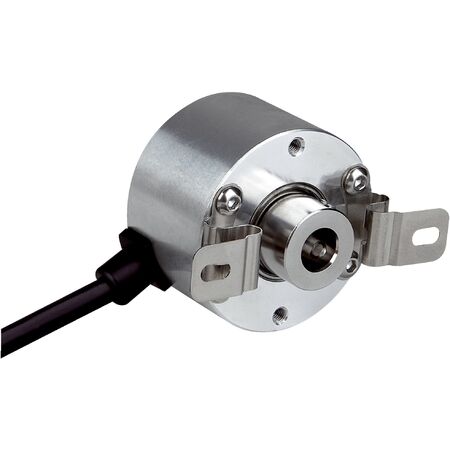

Incremental Rotary Encoder DLS40E-BEAV00600 | 600 PPR | 6-Channel Output | Robust Aluminum Housing | by SICK
The DLS40E-BEAV00600 incremental rotary encoder delivers precise measurement with 600 pulses per revolution and a 6-channel output, making it ideal for industrial automation and control systems. Built for durability, it features a robust aluminum housing and operates within a temperature range of -10°C to +70°C, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 600
- Measuring step: 90°, electric/pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: ≤ 150 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 2 W (without load)
- Connection type: Cable, 8-wire, radial, 2 m
- Supply voltage: 4.5 to 5.5 V
- Mechanical design: Blind hollow shaft
- Shaft diameter: 12 mm front clamp
- Start up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Permissible movement static: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible movement dynamic: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: ≤ 8,000 min⁻¹
- Moment of inertia of rotor: 24.6 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Operating temperature range: -10°C to +70°C
- Storage temperature range: -25°C to +85°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.17 kg
Key Features
- 600 pulses per revolution for precise measurement
- Incremental communication interface with TTL / RS-422
- 6-channel signal output with up to 150 kHz frequency
- Robust aluminum housing and flange with stainless steel shaft
- High mechanical durability with 2.0 x 10^9 bearing lifetime
- Operating temperature range from -10°C to +70°C
- Reverse polarity and short-circuit protection
- Cable connection with 8-wire radial 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Rotational speed and position measurement
- Robotics and machinery feedback
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 2 W reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DLS40E-BEAV00600 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
