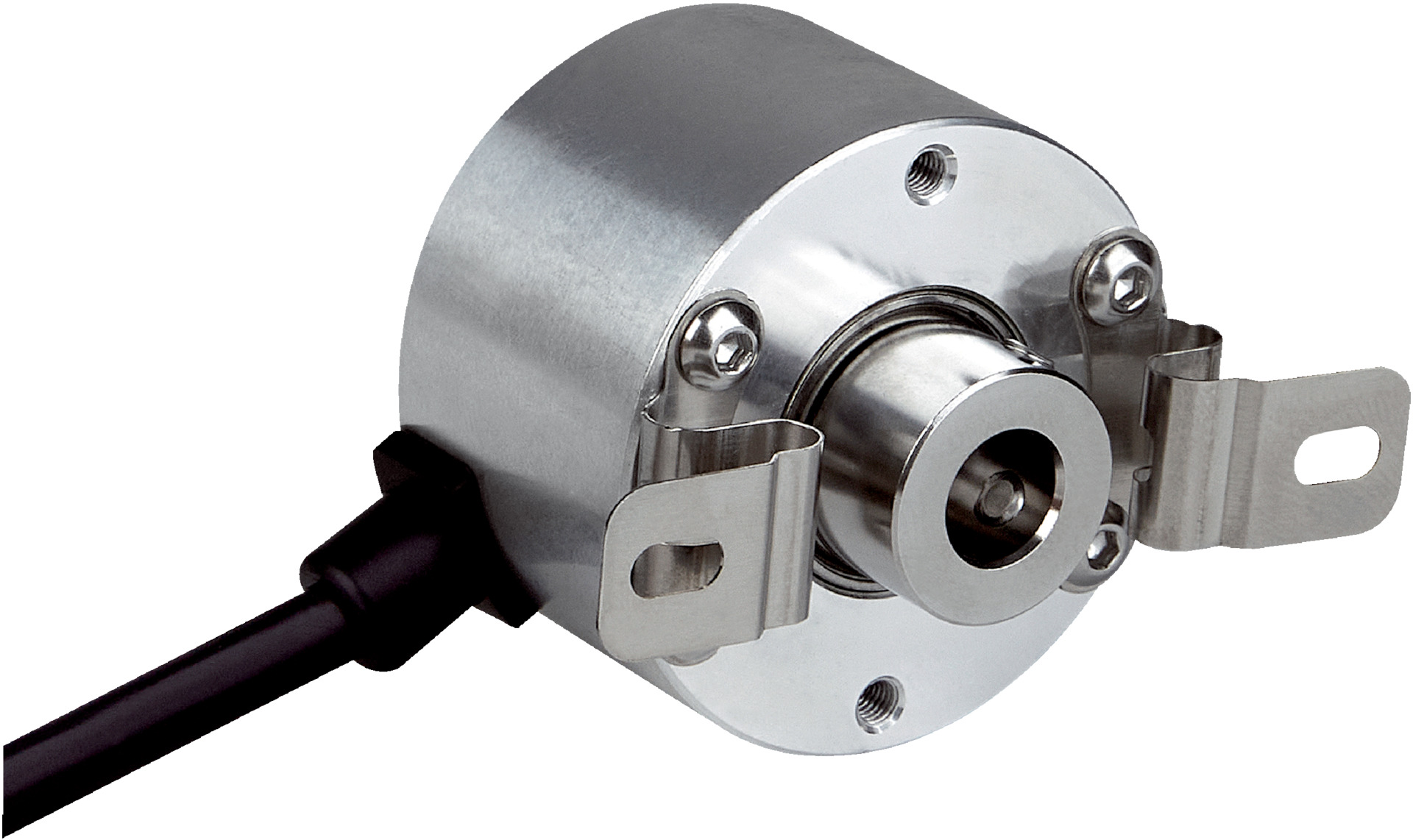

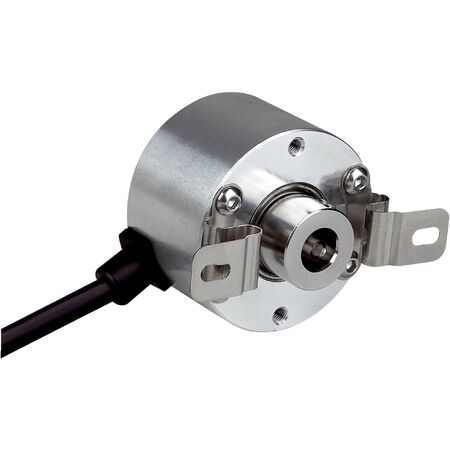

Incremental Rotary Encoder DLS40E-BEGV00600 | 600 Pulses/Rev | HTL Communication | Robust Aluminum Housing | by SICK
The DLS40E-BEGV00600 incremental rotary encoder is designed for precise rotational speed and position measurement in industrial automation. With 600 pulses per revolution and a robust aluminum housing, it ensures reliable performance even in demanding environments. Ideal for machine tool feedback and robotics, this encoder features low power consumption and high resistance to shocks and vibrations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 600 years (EN ISO 13849-1)
- Pulses per revolution: 600
- Measuring step: 90° electric/pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 3
- Output frequency: ≤ 150 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 2 W (without load)
- Connection type: Cable, 5-wire, radial, 2 m
- Supply voltage: 10 ... 27 V
- Reference signal: 1
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 12 mm front clamp
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: ≤ 8,000 min⁻¹
- Moment of inertia of rotor: 24.6 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –10 °C to +70 °C
- Storage temperature range: –25 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms (EN 60068-2-27)
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.17 kg
Key Features
- Incremental communication interface with HTL / Push pull signals
- 600 pulses per revolution with 90° measuring step
- Low power consumption ≤ 2 W without load
- Robust aluminum housing and flange with stainless steel shaft
- High operating speed up to 8,000 min⁻¹
- Reverse polarity and short-circuit protection
- Cable connection with 5-wire radial 2 m cable
- High resistance to shocks (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Rotational speed and position measurement
- Machine tool feedback
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DLS40E-BEGV00600 incremental encoder is available for immediate purchase, ideal for industrial automation and control applications.
