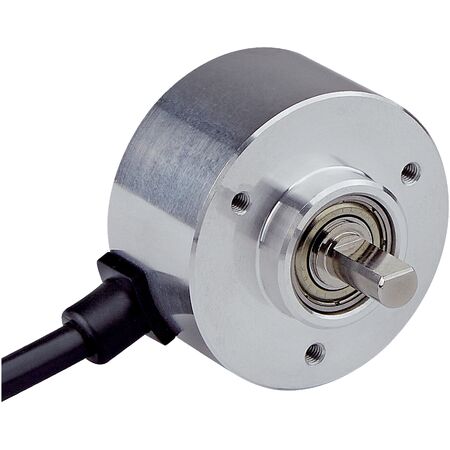

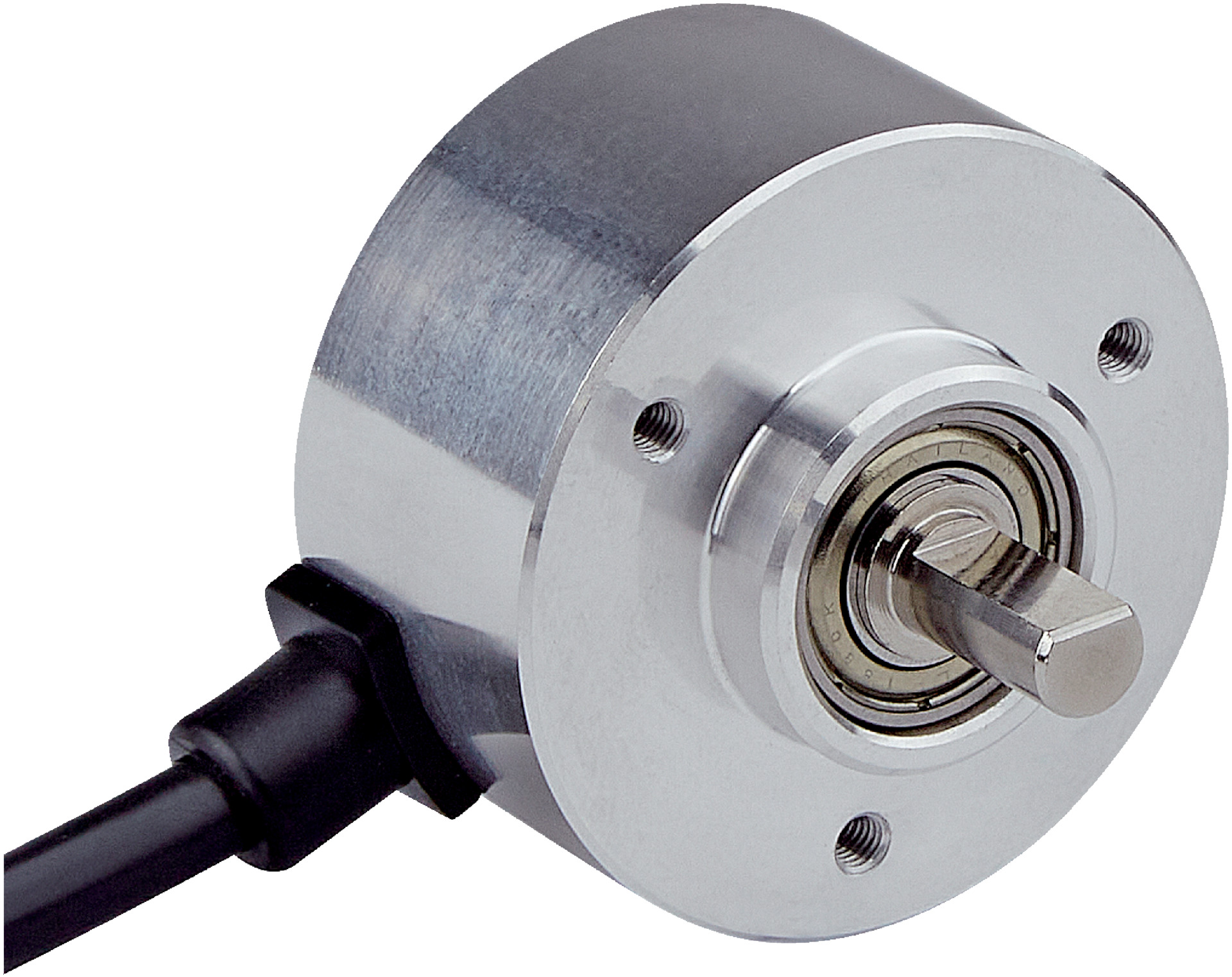

Incremental Rotary Encoder DLS40E-S3EV00600 | 600 Pulses/Rev | IP50 Rated | by SICK
The DLS40E-S3EV00600 incremental rotary encoder delivers high-resolution measurement with 600 pulses per revolution, making it ideal for industrial automation and precise motion control applications. Designed for durability, it features a stainless steel shaft and aluminum housing, ensuring reliable performance in demanding environments. With an operating temperature range of -10 °C to +70 °C and IP50 enclosure rating, this encoder is perfect for robotics, conveyor systems, and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 600 years (EN ISO 13849-1)
- Pulses per revolution: 600
- Measuring step: 90°, electric/pulses per revolution
- Duty cycle: ≤ 0.5 ± 10 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Output frequency: ≤ 150 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 2 W (without load)
- Connection type: Cable, 8-wire, radial, 2 m
- Supply voltage: 10 ... 27 V
- Reference signal: 1
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 6 mm with flat
- Shaft length: 12 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.3 Ncm
- Operating torque: 0.2 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: ≤ 8,000 min⁻¹
- Moment of inertia of rotor: 7.6 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -10 °C to +70 °C
- Storage temperature range: -25 °C to +85 °C
- Shock resistance: 100 g, 6 ms (EN 60068-2-27)
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.13 kg
Key Features
- 600 pulses per revolution for high resolution measurement
- Incremental communication interface with HTL / Push pull signals
- 6 signal channels with output frequency up to 150 kHz
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft and aluminum housing for durability
- Operating speed up to 6,000 min⁻¹ with maximum 8,000 min⁻¹
- Reverse polarity and short-circuit protection
- Operating temperature range from -10 °C to +70 °C
- IP50 enclosure rating suitable for industrial environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring incremental feedback
- Machine tools and manufacturing equipment monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 2 W reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DLS40E-S3EV00600 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
