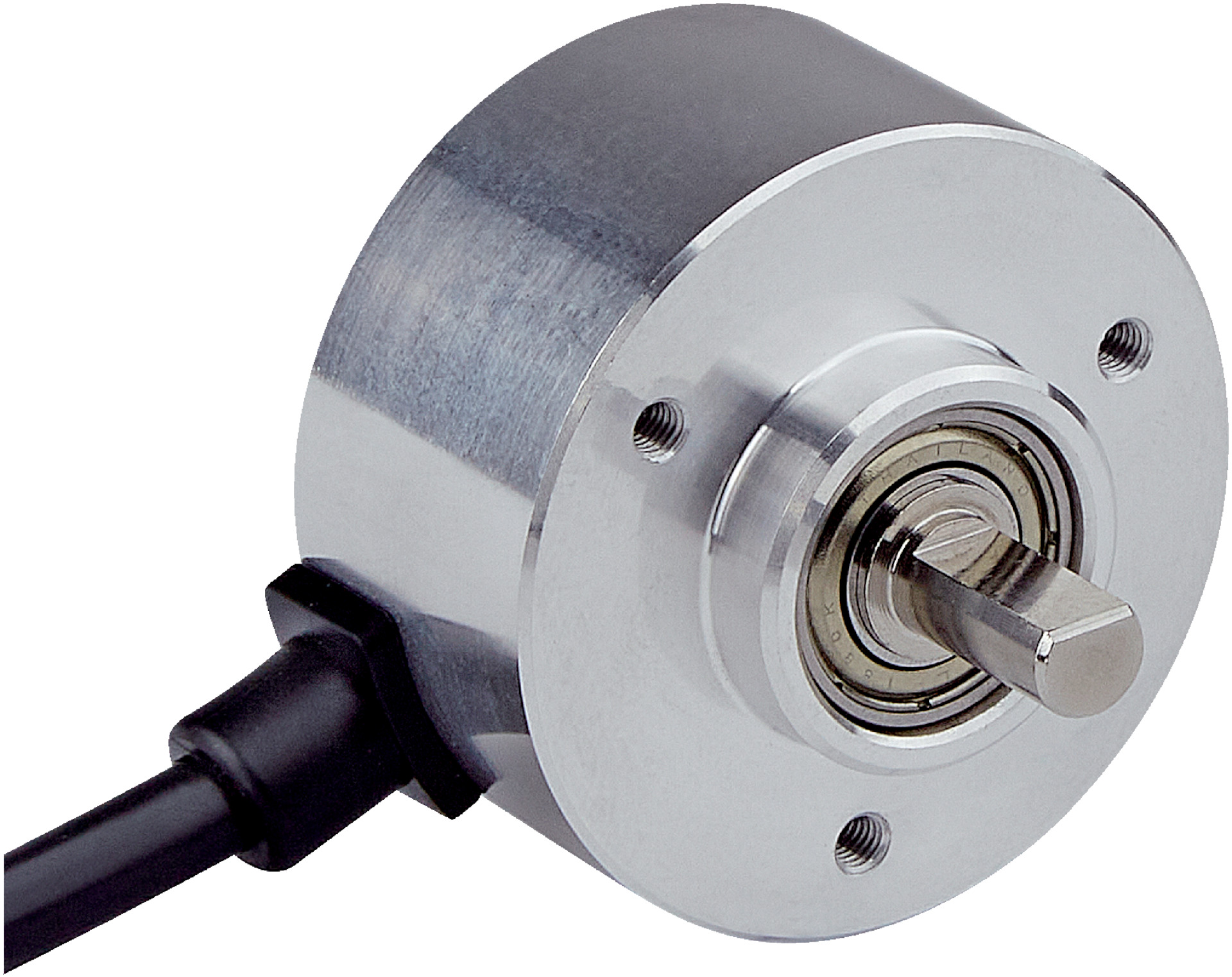

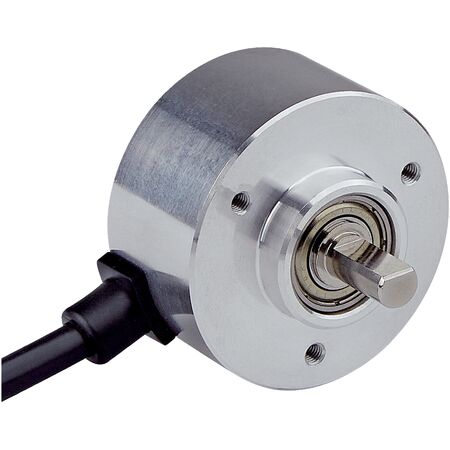

Incremental Rotary Encoder DLS40E-S3RV00600 | 600 Pulses/Rev | IP50 Rated | by SICK
The DLS40E-S3RV00600 Incremental Rotary Encoder delivers precise rotational position measurement with 600 pulses per revolution, making it ideal for industrial automation and robotics. Designed for high durability, it features a solid shaft and robust aluminum housing, ensuring reliable performance in demanding environments. With reverse polarity and short-circuit protection, this encoder is perfect for applications requiring accurate motion control feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 600
- Measuring step: 90° electric/pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental, open collector
- Number of signal channels: 3
- Output frequency: ≤ 150 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 2 W (without load)
- Connection type: Cable, 5-wire, radial, 2 m
- Supply voltage: 10 to 27 V
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 6 mm with flat
- Shaft length: 12 mm
- Start up torque: 0.3 Ncm
- Operating torque: 0.2 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: ≤ 8,000 min⁻¹
- Moment of inertia of rotor: 7.6 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50
- Operating temperature range: –10 °C to +70 °C
- Storage temperature range: –25 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.13 kg
Key Features
- Incremental communication interface with open collector output
- 600 pulses per revolution for high resolution
- Solid shaft with 6 mm diameter and 12 mm length
- Robust aluminum housing and flange with stainless steel shaft
- Operating speed up to 6,000 min⁻¹, max 8,000 min⁻¹
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 2 W without load
- High mechanical durability with bearing lifetime of 2.0 x 10^9 revolutions
- IP50 enclosure rating suitable for industrial environments
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring, mounting, and compliance with safety standards.
Applications
- Industrial automation for precise rotational position measurement
- Robotics for motion control feedback
- Conveyor systems for speed and position monitoring
- Machine tools for accurate shaft rotation detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in automation systems
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DLS40E-S3RV00600 Incremental Rotary Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
