Incremental Rotary Encoder DUV60E-D4KFWCGB | 275 Years MTTFD | IP65 Rated | Smooth Urethane Surface | by SICK

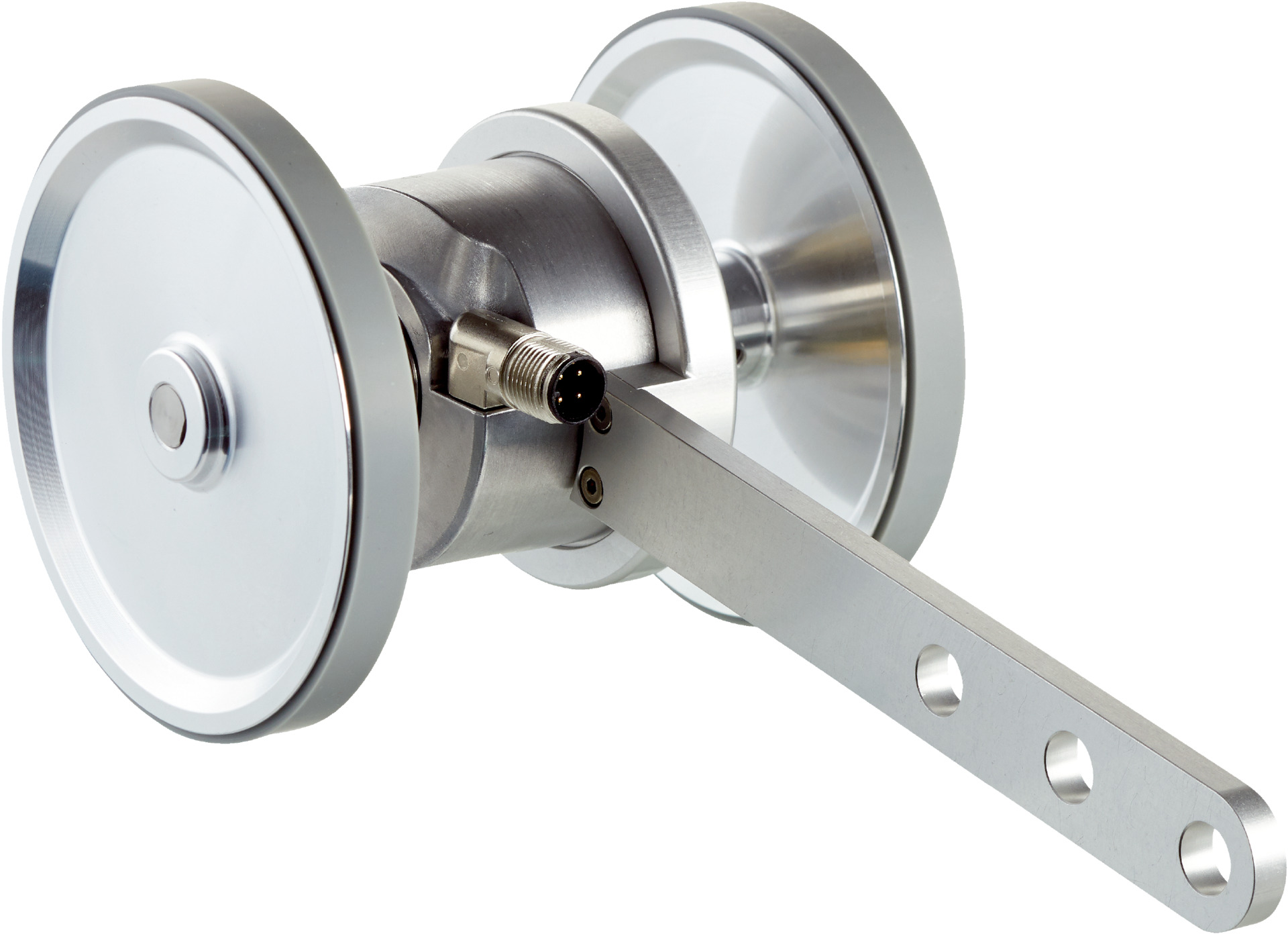

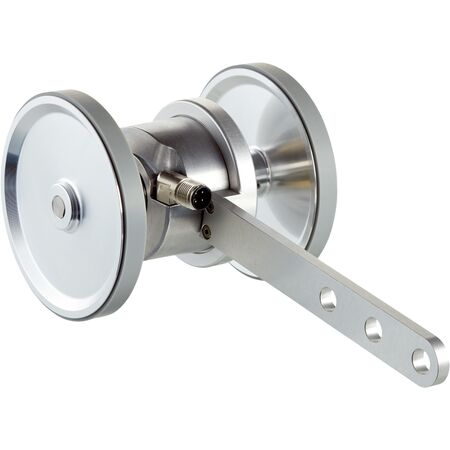

The DUV60E-D4KFWCGB incremental rotary encoder is designed for precise position and speed measurement in industrial automation. With a remarkable MTTFD of 275 years and an IP65 rated enclosure, it ensures high reliability and durability. Ideal for applications like conveyor belt monitoring and machine tool feedback systems, this encoder features a smooth urethane measuring wheel and robust aluminum housing, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 48
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Connection type: Male M12 4-pin connector
- Output voltage and direction of rotation supported
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤ 30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel surface: Smooth plastic (urethane)
- Start up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating humidity: 90% (no condensation)
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.9 kg
Key Features
- Incremental communication interface with TTL/HTL output
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Robust aluminum housing and flange with stainless steel shaft
- Operating temperature range from -30°C to +70°C
- IP65 rated enclosure for dust and water resistance
- Short-circuit and reverse polarity protection
- Maximum output frequency of 60 kHz
- Low power consumption with max 1.25 W
- Bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial electrical standards to ensure proper connection and calibration.
Applications
- Industrial automation for position and speed measurement
- Conveyor belt monitoring
- Machine tool feedback systems
- Material handling and packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFWCGB incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
