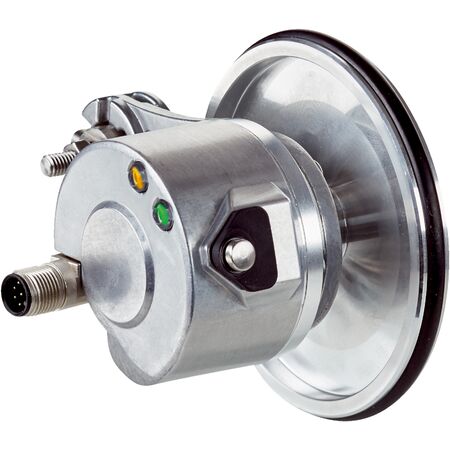

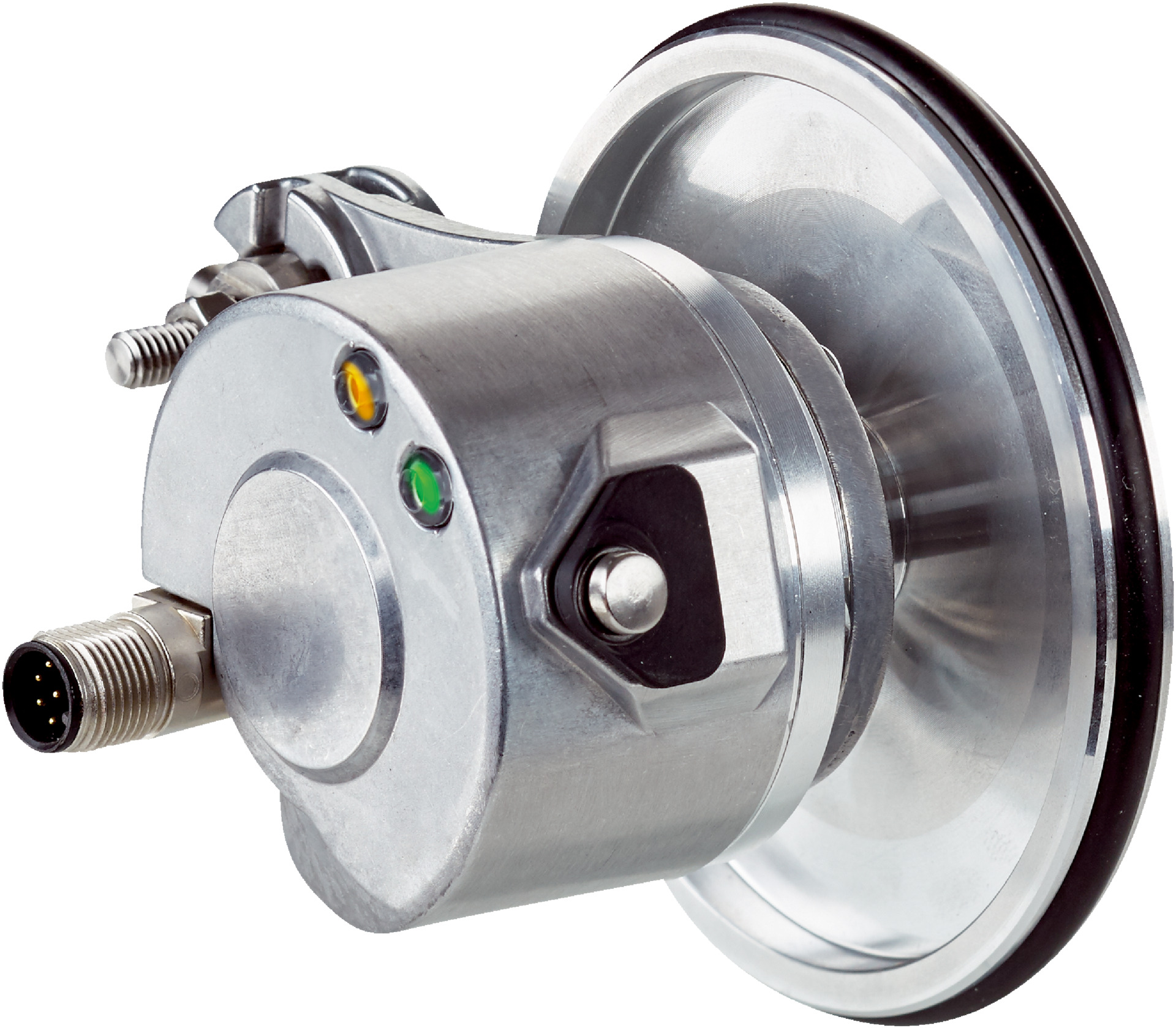

Incremental Rotary Encoder DUV60E-32KFAAAA | 275 Years MTTFD | IP65 Rated | by SICK
The DUV60E-32KFAAAA incremental rotary encoder is designed for precise position and speed measurement in industrial automation. With a remarkable MTTFD of 275 years and an IP65 rated enclosure, it ensures reliability in harsh environments. Ideal for conveyor systems and machine tool feedback, this encoder features a robust aluminum housing and a measuring wheel with a 300 mm circumference, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 2400 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Power consumption max without load: ≤1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180°, electric, gated with A
- Connection type: Male M12, 4-pin connector
- Operating speed: 1500 min⁻¹
- Start up torque: 1.2 Ncm
- Operating torque: 1.1 Ncm
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max deflection: 14 mm
- Recommended pretension: 10 mm
- Max working area for spring: ±3 mm
- Service life of spring element: >1.4 million cycles
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.45 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Selectable output via DIP switch
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Measuring wheel with 300 mm circumference and O-ring NBR70 surface
- Spring arm mechanism with long service life over 1.4 million cycles
- Maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor systems requiring accurate length measurement
- Machine tool feedback and control
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤1.25 W minimizes energy use
- Robust construction extends product lifecycle in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-32KFAAAA incremental encoder with measuring wheel is available for immediate purchase, ideal for industrial automation and precise measurement applications.
