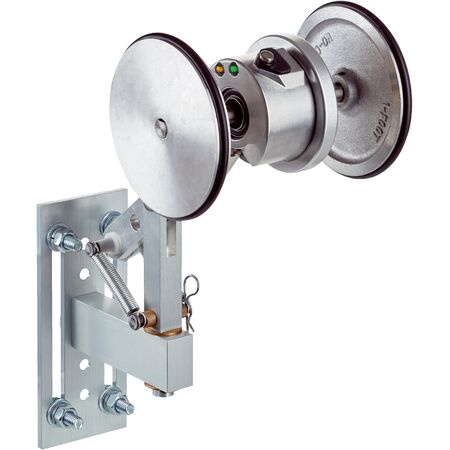

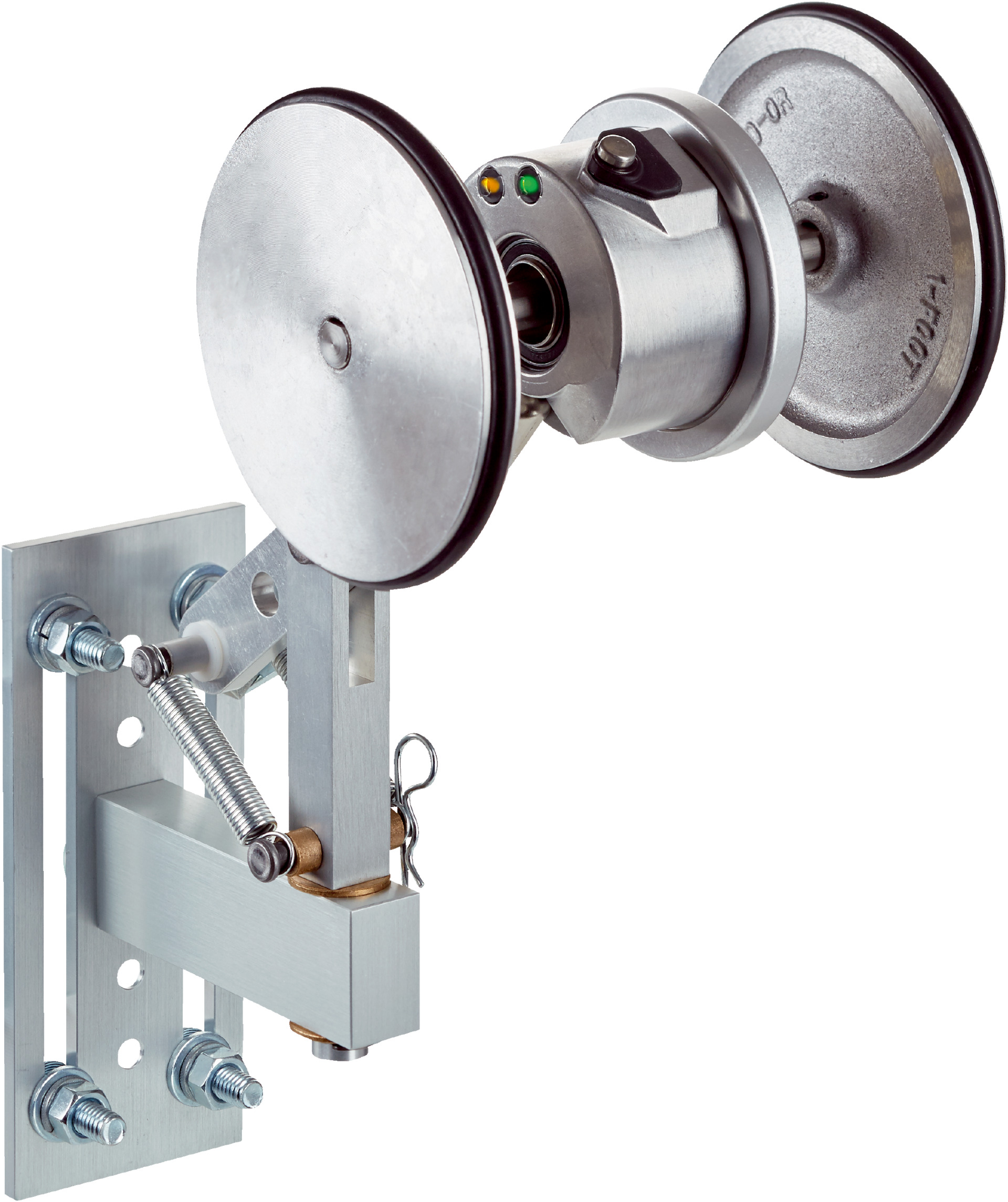

Incremental Rotary Encoder DUV60E-32KFHACA | 275 Years MTTFD | IP65 Rated | TTL/HTL Output | by SICK
The DUV60E-32KFHACA incremental rotary encoder is designed for industrial automation, offering a remarkable MTTFD of 275 years and an IP65 rated enclosure for dust and water resistance. With adjustable pulses per revolution from 1 to 1800 and a robust aluminum housing, it ensures precise measurement of rotational position and speed, making it ideal for conveyor systems and machine tool monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1800, selectable
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse depending on type
- Measuring step: 90° electric per pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Connection: Male M12 4-pin connector
- Output voltage and direction of rotation signals provided
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 300 mm with O-ring NBR70 surface
- Spring arm with spring tension under-belt flange mount
- Materials: Shaft stainless steel, flange and housing aluminum, cable PVC
- Start up torque: 0.5 Ncm, operating torque: 0.4 Ncm
- Operating speed up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum spring arm deflection: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating humidity: up to 90% (no condensation)
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1800
- Robust aluminum housing and flange with stainless steel shaft
- Spring arm design with O-ring NBR70 measuring wheel for accurate surface contact
- Operating temperature range from -30°C to +70°C
- IP65 rated enclosure for dust and water resistance
- Reverse polarity and short-circuit protection on outputs
- Maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise measurement of rotational position and speed
- Conveyor belt length measurement and control
- Material handling systems requiring accurate incremental feedback
- Machine tool positioning and monitoring
Standards & Compliance
- Complies with AS/NZS 61000 series for electromagnetic compatibility
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy efficiency
- Robust protection against environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-32KFHACA incremental encoder is available for immediate purchase, ideal for industrial automation and measurement applications requiring precise and reliable position feedback.
