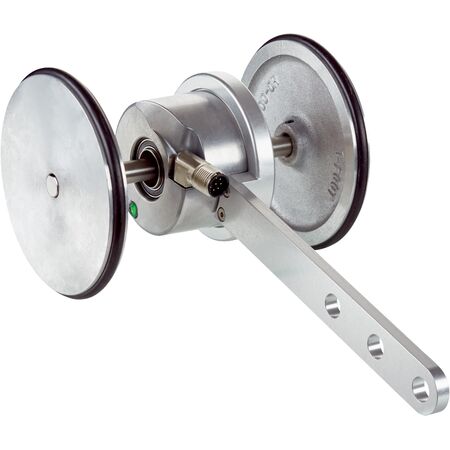

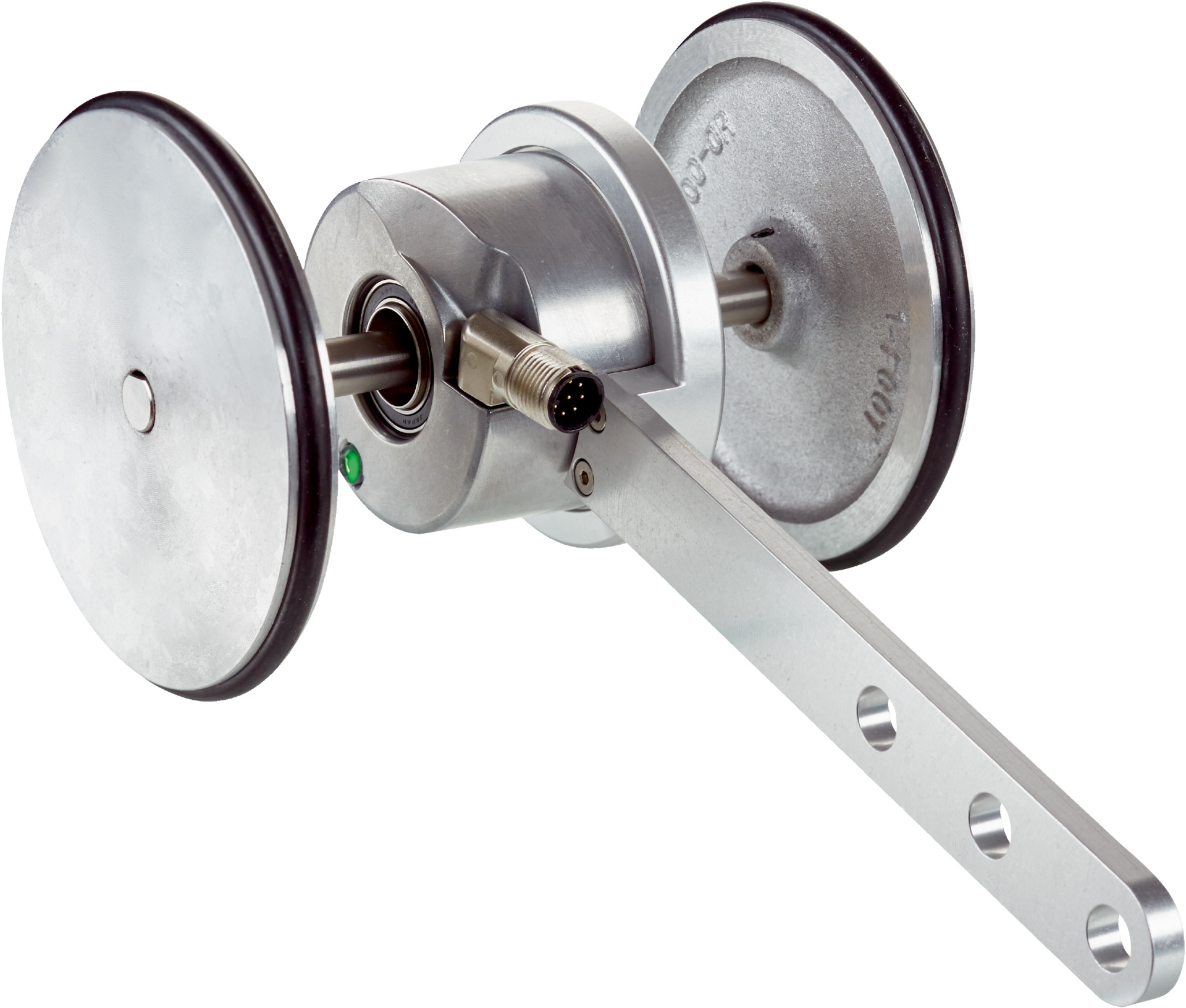

Incremental Rotary Encoder DUV60E-D2KFWABA | 275 Years MTTFD | IP65 Rated | by SICK
The DUV60E-D2KFWABA incremental rotary encoder is designed for precise position and speed measurement in industrial automation. With an impressive MTTFD of 275 years and an IP65 rated enclosure, it ensures reliability in harsh environments. Ideal for applications like conveyor belt monitoring and robotics, this encoder features adjustable pulses per revolution and a robust aluminum housing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1800 (selectable)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Connection type: Male M12 4-pin connector
- Output voltage: TTL/HTL compatible
- Direction of rotation detection: Yes
- Power consumption max without load: ≤ 1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1, positioned at 180° electric, gated with A
- Reverse polarity and short-circuit protection: Yes
- Measuring wheel circumference: 12 inches
- Materials: Shaft - stainless steel, Flange - aluminum, Housing - aluminum, Cable - PVC
- Operating torque: 0.4 Ncm
- Start up torque: 0.5 Ncm
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1800
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- High maximum output frequency of 60 kHz
- Low power consumption max 1.25 W
- Durable bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and calibration.
Applications
- Industrial automation for position and speed measurement
- Conveyor belt monitoring
- Material handling systems
- Machine tool feedback
- Robotics and motion control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D2KFWABA incremental encoder with measuring wheel is available for immediate purchase. Ideal for industrial automation and precise motion control applications.
